Polyimide Flat Enameled Copper Wire Piw

Name: Polyimide Flat Enameled Copper Wire Piw
Brand: HUAYUAN
SKU: 132510109
Availability: InStock

Xuchang Huayuan Electric Apparatus Co., Ltd.

US$ 9 - 9.6 MOQ: 1000 Kilograms

Key Specifications

Place of Origin:

Henan, China

Brand Name:

HUAYUAN

Model Number:

QZB-HY-D

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Qingdao Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name HUAYUAN

Model Number QZB-HY-D

Type Insulated

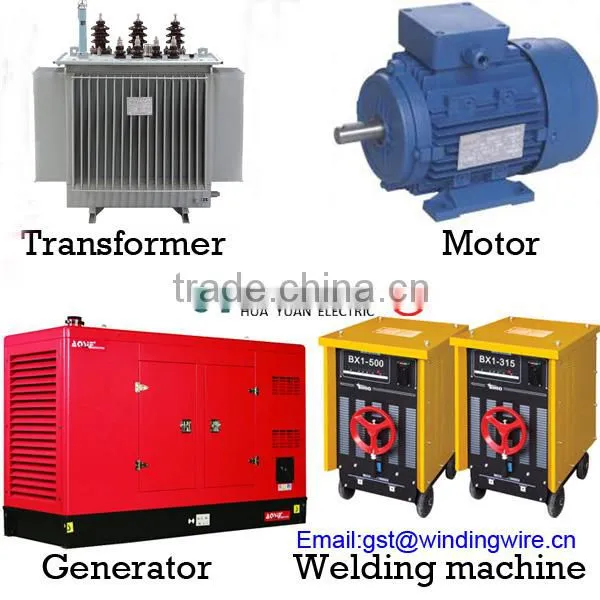

Application Other, transformer ,refrigerating system ,C motor,UPS power source

Conductor Material Copper

Conductor Type Other, polyimide flat enameled copper wire

Insulation Material Other, polyamide-imide

Specifications

polyimide flat enameled copper wire
1.Dia:a:1-10mm,b:3-16mm
2.Themal class:130-220c
3.20 years history

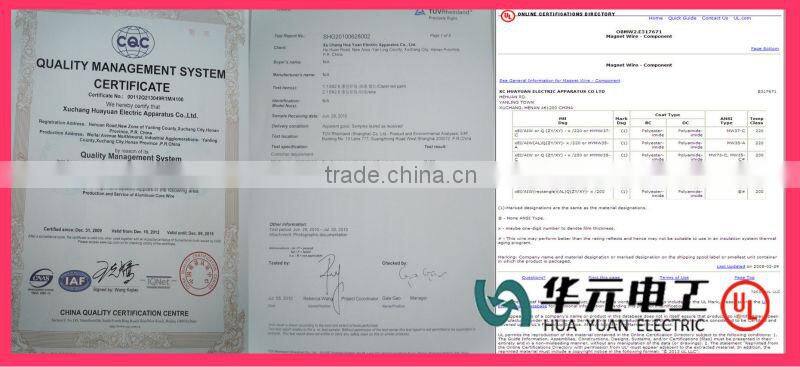

4.ROHS.UL

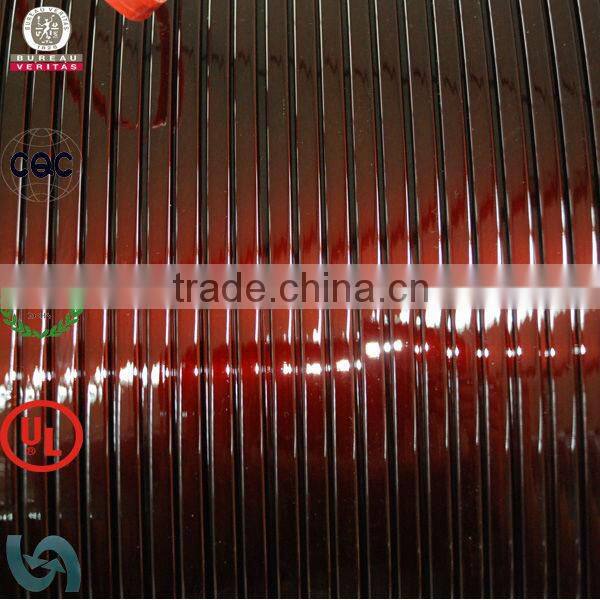

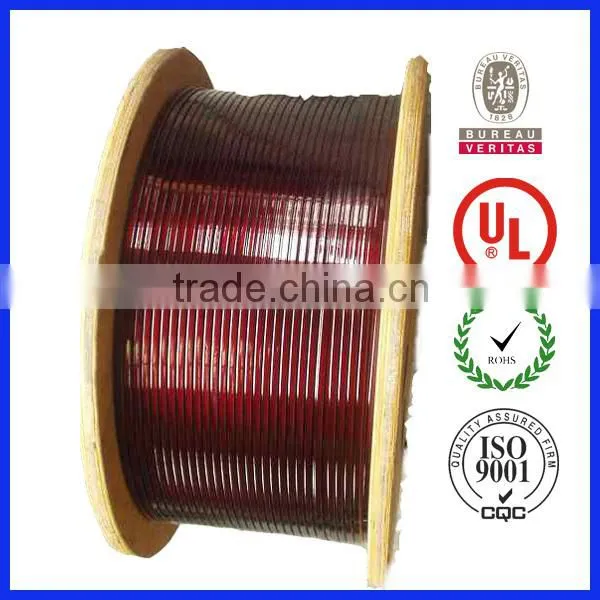

polyimide flat enameled copper wire piw

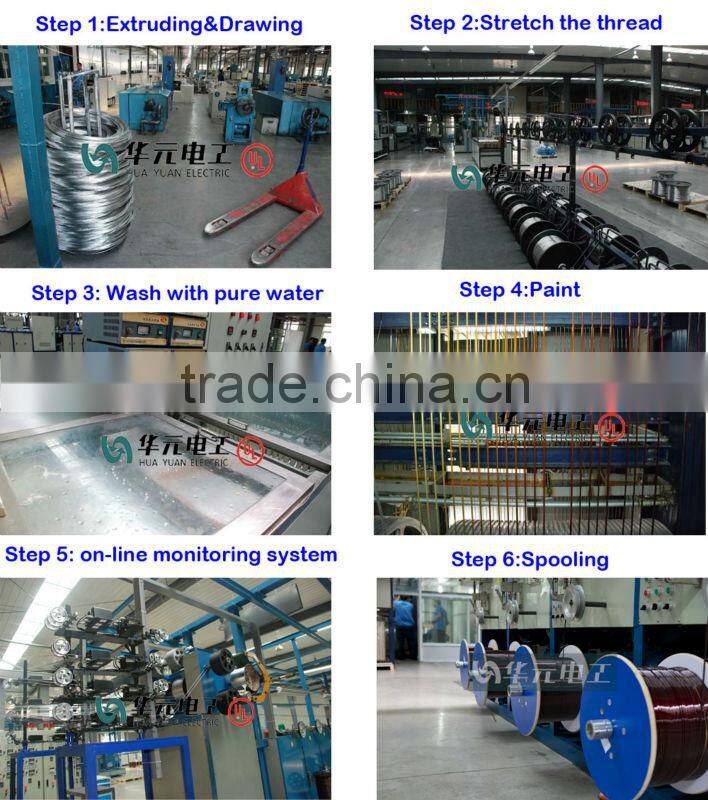

Product Description

Feature of polyimide flat enameled copper wire

1) High temperature resistance

2) Chemical corrosion resistance

3) Transformer oil resistance

4) Low temperature resistance

5) Radiation resistance

6) High breakdown voltage

7) Good mechanical properties

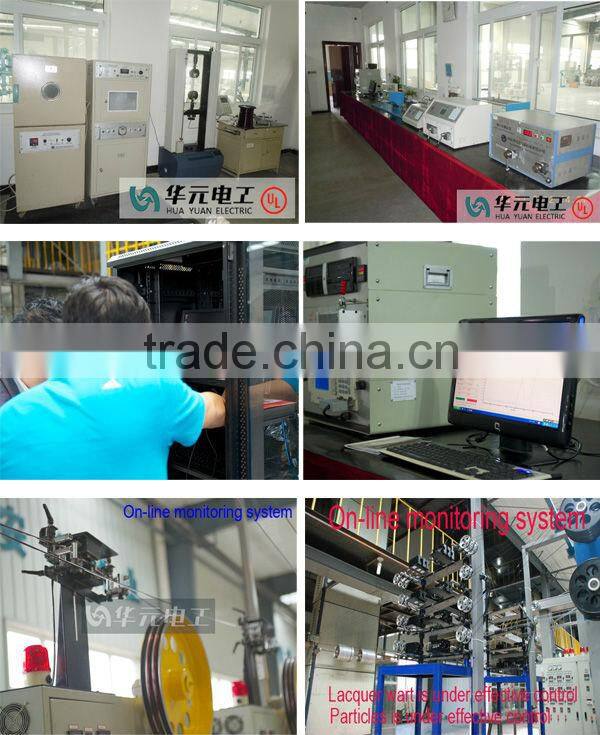

Test report of polyimide flat enameled copper wire

TYPE: QZB -1/155 SIZE:1.25*5.3MM

Test Item		Unit	Technical Standard	Test Result
Appearance			uniform colour and without the defeat affecting product performance.	No defect
Conductor	Thickness (a)	mm	±0.030	1.253
Conductor	Width (b)	mm	±0.050	5.320
Insulation Thickness	Thickness (a)	mm	0.060—0.110	0.090
Insulation Thickness	Width (b)	mm	0.060—0.110	0.100
Resistivity (20°C)		Ω.mm²/m	≤0.017241	0.01701
Elongation		%	side a (mm) :≤2.5 30%	40%
Elongation		%	Side a (mm): >2.5 32%	40%
Adherence			The film distance of lose adherence shall not more than 1b after 15% elongation.	not loss adherence
Heat Shock			No cracks visible in the filmcoating after bending the board side around a mandrel 6aby conditioning at 175°C	No Crack
Breakdown Voltage		KV	Min break down voltage: four of five specimens shall not lower than 1.0KV. one shall not lower than 50%	3.9,3.6,5.0,4.1,5.0

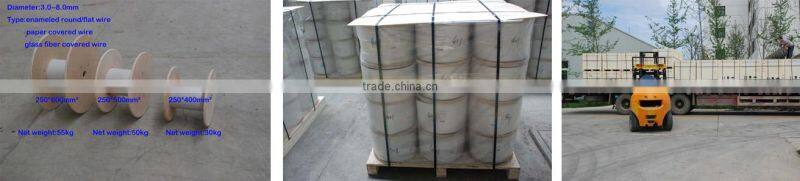

Package			Meet the relative standards	Meet the standard

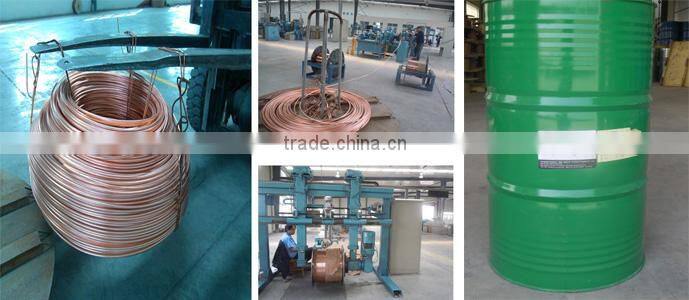

Material

Insulation varnish :	Temperature Class Degrees C
Polyvinyl Formal	Class 105
Polyurethane/Polyamide (Nylon)	Class 155
Polyurethane	Class 155
Polyurethane/Polyamide (Nylon)	Class 180
Polyurethane	Class 180
Solderable Polyester	Class 180
Solderable Polyester/Polyamide (Nylon)	Class 180
Modified Polyester/Polyamide (Nylon)	Class 180
Modified Polyester/Polyamideimide	Class 200
Modified Polyester	Class 200
Modified Polyester/Polyamideimide	Class 200
Modified Polyester/Polyamideimide	Class 220
Polyimide	Class 240
Polyvinyl Butyral Self Bonding over Polyurethane / Nylon	Class 130
Modified Polyester/Polyamideimide/Bondcoat	Class 180
