Specifications
Enamelled copper electrical wire1.Size: a 1-6mm b 3-16mm
2.MOQ:500kg
3.ROHS,UL,BV,ISO9001
4.Super Enameled Copper Wires

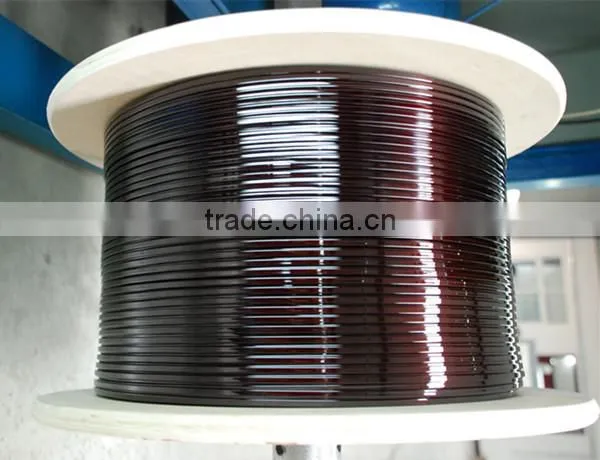

High tem. thermal class 180°C Flat eanamelled copper wire price
Thermal class 180 °C.
Two grade
A 1-10mm,B 3-16mm
1 The following is Flat copper wire price ,using wooden spool ,max weight 205kgs/spool.
2. Feature of enamel coated high temperature copper wire price
1) High temperature resistance
2) Chemical corrosion resistance
3) Transformer oil resistance
4) Low temperature resistance
5) Radiation resistance
6) High breakdown voltage
7) Good mechanical property
BV CQC ROSH UL

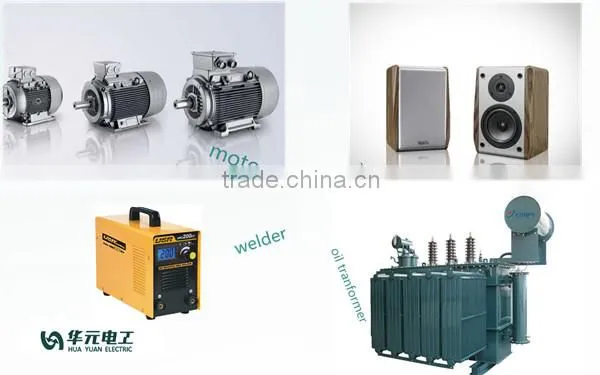

3 Typical applications of enamel coated copper wire price

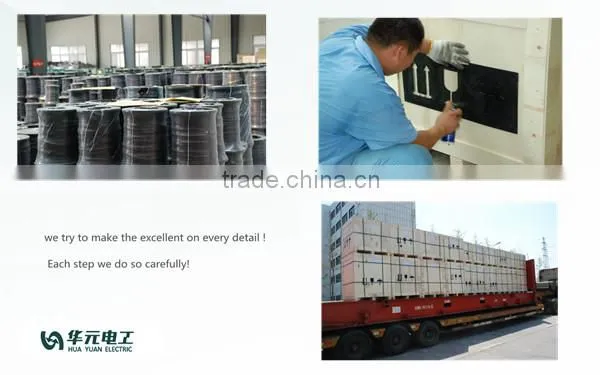

4 Packing of enamel coated high temperature magnet wire
- Spool: PT15, PT25, PT30, PT60, or much big Plywood Packing Spool
- Film: High quality water-proof Film covered Wire Spools
- Packing: custom-made Plywood Cases, then bind it with Steel Strip
- Natural packing or based on customers' requirement
5. Test report of enamel coated magnet wire
Name |
Super Brand of Enamel Coated Magnet Wire for Electric Motor |
|||
Type |
Q(ZY)LB-2/180 |
|||
Diameter |
4.50×13.50 mm |
|||
Standard |
MW36-A |
|||
Test item |
Unit |
Technical Requirement |
Test Result |
|
Appearance |
|
Bright and clean, uniform color, |
OK |
|
|
Conductor Diameter |
Broad side |
mm |
±1% |
13.44 |
Narrow side |
mm |
±1% |
4.48 |
|
Thickness of insulation film |
Broad side |
mm |
0.127-0.178 |
0.160 |
Narrow side |
mm |
0.102-0.152 |
0.120 |
|
Resistance |
Ω/m |
≤0.02785 |
0.02761 |
|
Elongation |
|
>15% |
32% |
|
Flexibility and adherence |
|
15% no cracking |
No cracking |
|
Resistance to heat shock |
C |
Tensing 10% in 200ºC , no cracking |
No cracking |
|
Breakdown voltage |
KV |
Three of four minimum breakdown voltage no less than 2.5 KV, the last one above 0.9 KV |
4.5,4.0,4.1,5.4 |
|
Packing |
|
Meet the export standard |
OK |
|
Quality control result |
|
OK |
||
6.Our Company
Xuchang Huayuan Magnet Wire Co.,Ltd is established in 1993 and we have developed to a professional manufacture of enameled wire and paper covered aluminum wire as well as fiber-glass covered aluminum wire. Our 100,000 square meter factory is ISO 9001(00112Q213049R 1M /4100) and 14001 environment system certified, and our products are also UL-listed. Our workshop maintains constant temperature and humidity to guarantee the quality.
7.Best service:
1) .Trail order is welcomed, you can test our quality before making large quantity, even though we are wholesales supplier
2). We issued test reports for every shipment.
3). You can enjoy discounting and priority to produce first after you become to be our regular client.
8.Company Advantage:
- 1). About 20 years manufacture experiences.
- 2). Been Audit by UL Company and BV Company
- 3).We have a big Quality Control Team and can guarantee the quality and time of delivery
- 4). Many trade companies place orders from us.

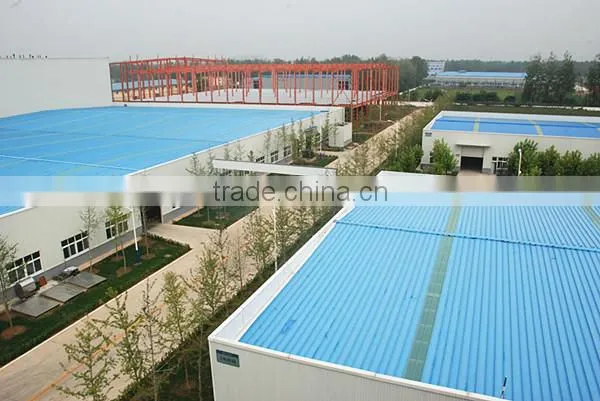

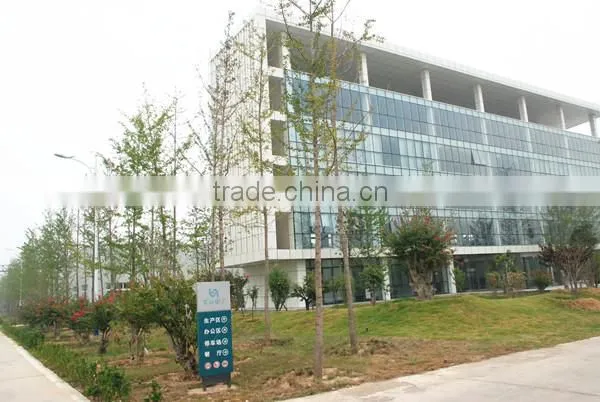

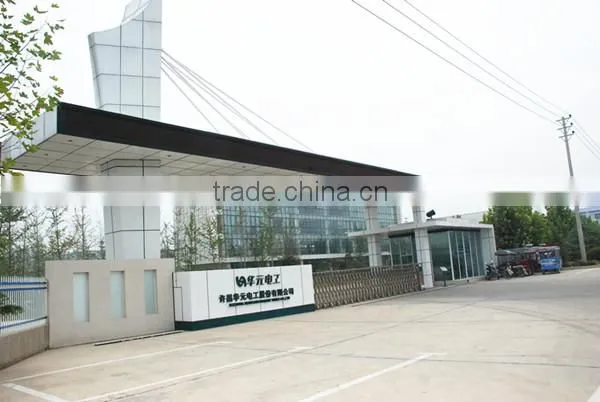

- Factroy gate ,office building ,and workshops.

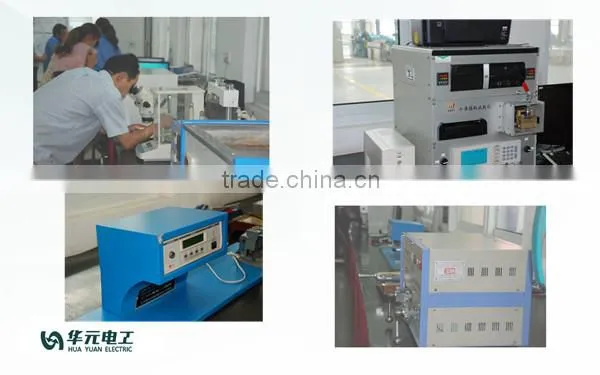

8.Test equipment of Enamelled copper wire price

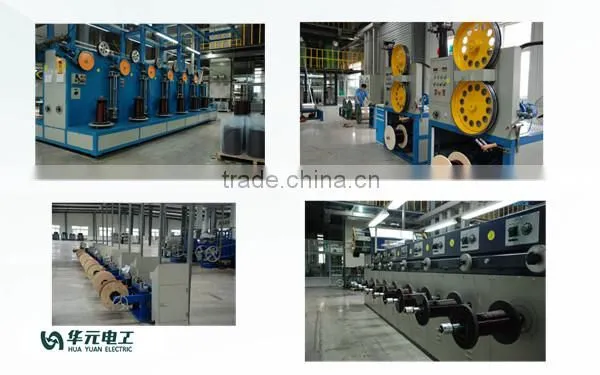

9.Qick View of Our Working Procedure of enamel coated high temperature

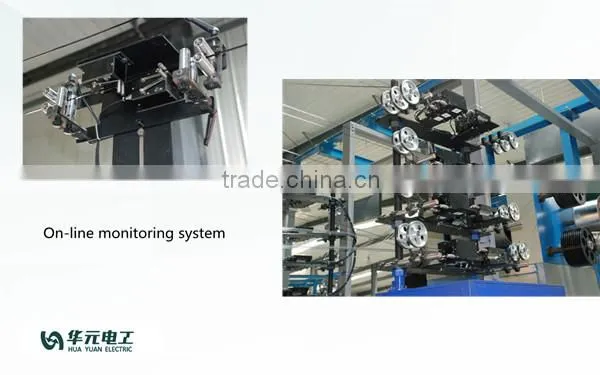

10.On-line monitoring system
11. Certifications of enamelled copper wire
1 how long has your factory exiested ?
Re:we have been working since 1993,till now more than 20 years .before start from glass fiber insulation wires .
later do the enamelled wires . and now has been two Province Lab .and applyin gone nation lab. now has two
national editor in this industry .
2 Do your company do OEM?
Re: yes
we do ,we have been working OEM for some trading companies for long in china ,if you see on alibaba closely you
may find .
3 where is your factory ?
Re: our factory now in henan province china . in middle of china ,you may see the map by seaching xuchang ,henan ,on google.
we have 4hours D-train to beijing ,and in the south of beijing . very ancient city ,have been exiested thousand years .shaoling temple in our province and two hours by car from our place .
4 if you can send sample or not ?
Re: yes . but the dhl cost shared by the customer !
5 do you have market in Asia ?
Re: yes ..absolutely ,we now do well in Asia ,it is also one nice market of us ,like
6 you also have market in Europe ?
Re: yes ,we do market also in Europe ,and America ,and south America . we have experience working with
world different customers ,so if you have idea ,we may have the discusion ,maybe we may give some advices
that useful !
7 How many DAYs normally the goods can be ready?
Re: we normal need 10-15 days to prepare the goods .because the producition has its sheduel! we have to
follow the production plan ,to some urgent goods we may also adjust production based the real need!
8 what the Payment ?
Re: we do TT and LC ,if you plan to do TT ,need 40%TT advanced ,and 60% finnished production .if LC ,need 30%TT,and 70 LC.
