Enameled Copper Wire Strps

Name: Enameled Copper Wire Strps
Brand: HUAYUAN
SKU: 132510047
Availability: InStock

US$ 8.8 - 9.5 MOQ: 500 Kilograms

Key Specifications

Place of Origin:

Henan, China

Brand Name:

HUAYUAN

Model Number:

QBT-F-M01

Xuchang Huayuan Electric Apparatus Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Shanghai Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name HUAYUAN

Model Number QBT-F-M01

Type Insulated

Application Other, Motor,Transformer,Refrigerating system,UPS power source

Conductor Material Other, Copper, Pure Copper

Conductor Type Solid

Insulation Material Enameled

Specifications

1.Name:Enameled copper Flat wire;
2.Size: a 1-6mm b 3-16mm;
3.Sthandard:IEC/NENMA/GB or as request;
4.MOQ:500kg 10-20delivery

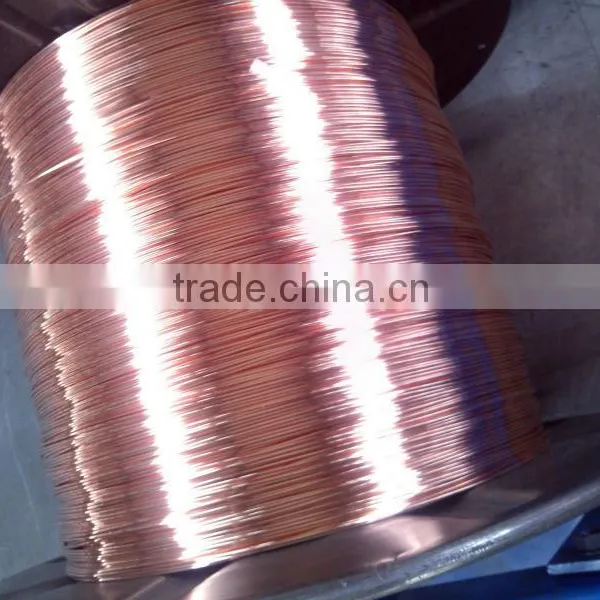

Enameled copper wire strips

1.Size: a 1-6mm b 3-16mm

2.MOQ:500kg
3.ROHS,UL,BV,ISO9001
4.Thermal class:130/155/180/20/220

5.Delivery time: 10-20 days

6.Storage: no ,produce on orders

7.Insulation: G1 or G2,with Elantas varnish.

8.Packing: max plywood spool hold182-205kg

9.Application : motor,trasformer,generator

10.Service:on wire if any questions check us.

Test Report of one kind flat wire :

Here is one test report of one kind size :

Name		Enameled copper wire strips
Type		QZB-2/155
Diameter		4.00X8.00
Standard		GB/T7095.3
Test Item			Unit	Technical requirements	Test Result
Appearance				Bright and clean, uniform color	Ok
Dimensions	Bare Conductor	Narrow side	mm	±0.05	4.01
		Broad side	mm	±0.07	8.00
	Enameled Increase	Narrow side :	mm	0.12~0.17	0.130
		Broad side	mm	0.12~0.17:	0.150
Adherence and Flexibility	Mandrel Winding Test			1D	OK
	Jerk Test			No Crack, and No losing adhesion	OK
Resistivity(20°C)			Ω. mm²/m	≤0.017241	0.01693
Elongation			%	A side(mm) ≤2.5 30% >2.5 32%	44%
Heat Shock			°C	after bending in 6a test bar, 175°C no cracking	no cracking
Breakdown Voltage at Room Temp.			KV	2.0	4.9,3.5,4.2,4.0,6.2
Packing				Meet the export standard	OK
