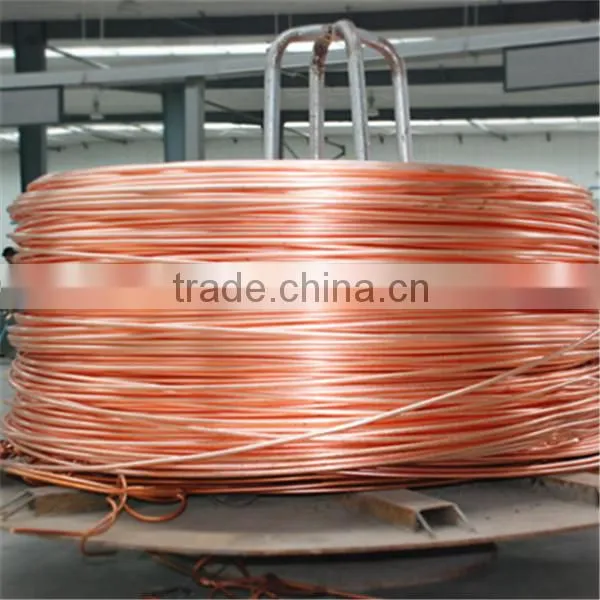

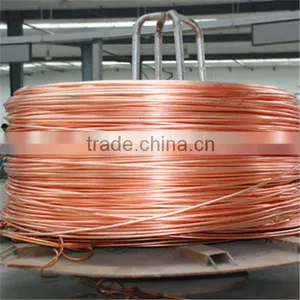

Help CenterAWG SWG Elantas Varnish Copper Enamelled Wire for Motor Winding Coils ISO9001 Approved
Related Products
-
UL Enamelled Rectangular Copper Magnet WireUS$ 3.52 - 5.35MOQ: 500 Kilograms -
Enamelled Copper Electrical Wireing Top 10 Supplier ChinaUS$ 9 - 9.5MOQ: 500 Kilograms
-
Double Fiberglass Insulation for Electric Aluminum Copper WiresUS$ 3.52 - 5.35MOQ: 500 Kilograms
-
Transformer Use Termal Class 180 Enamelled Copper Electric Wire China SuppliesUS$ 9 - 9.5MOQ: 500 Kilograms
-
Transformer Use Termal Class 180 Enamelled Copper Wire PriceUS$ 9 - 9.5MOQ: 500 Kilograms
Specifications
enameled wire 1.19 years historylours:goldredbluegreen
3.Insulation: PEW/PIW/EIW/AIW
4.Standard:IEC,G
1.Specifications of elantas varnish enamelled wire
size a 0.8-5mm b.2-16mm.
Standard: IEC, NEMA, GB,JIS
Thermal Class: 130/155/180/200/220 centigrade
Certification: SGS, UL Approved, ISO9001
2.Advantages of elantas varnish enamel wire
a)Chemically resistant
b)Excellent thermal stability
c)High resistance to abrasion
d)Better sliding during coil insertion in slots
e)Excellent dielectric and mechanical properties
f)Very good chemical resistance to common solvent and coolants
3.Test report
Name |
elantas varnish enamelled wire |
|||
Model |
Q(Z/Y)LB-2/180 |
|||
Diameter |
2mm*6mm |
|||
Standard |
MW36-A |
|||
Test Item |
Unit |
Technical Requirement |
Test Result |
|
Appearance |
|
bright and clean, Uniform color, |
Ok |
|
Bare Conductor |
a |
mm |
±0.03 |
2.01 |
b |
mm |
±1% |
6.03 |
|
Thickness of insulation film |
a |
mm |
0.102-0.152 |
0.115 |
b |
mm |
0.127-0.178 |
0.160 |
|
resistance |
Ω/m |
≤0.02785 |
0.02776 |
|
Elongation |
|
>15% |
21% |
|
Flexibility and adhesion |
|
15% No cracking |
no cracking |
|
Resistance to heat shock |
C |
200C insulation film no cracking |
Tensing 10% half an hour, no cracking |
|
Resistance to solvent |
|
Standard solvent "H" Pencil |
2H is ok |
|
Breakdown Voltage |
KV |
2.5 KV |
4.8,4.9,4.6,4.2 |
|
package |
|
Meet the export standards |
Ok |
|
Quality Control Result |
|
Ok |
||
4.Q C office
5.Material
Elantas varnish |
Temperature Class |
Polyurethane/Polyamide |
Class 155,Class 180 |
Polyurethane |
Class 155,Class 180 |
Modified Polyester/Polyamide |
Class 180 |
Modified Polyester |
Class 200 |
Modified Polyester/Polyamideimide |
Class 200 Class 220 |
Modified Polyester/Polyamideimide/Bondcoat |
Class 180 |
6.steps to produce eltantas varnish enamelled wire
7. Packaging & Shipping
We can provide neutral package.or cuatomers special requirement.
Normal Packing as follows:
Inner packing: different plastic spool according to wire diameter
Outer packing: wooden spool and in wooden case or according customers' special requirement
Sample shipping time:3-5days
Order and shipping time: negotiate
8.Our Services
1.free sample can be provide.
2. Many foreign trade corporation buy product from our factory
3.customized product; we have two editor of GB standard. We can satisfy the customer special requirement of the enamelled wire, if you have problem,pls feel free to contact us.
4.We do fast service ,any checking and reply in 0-10 hours do the response

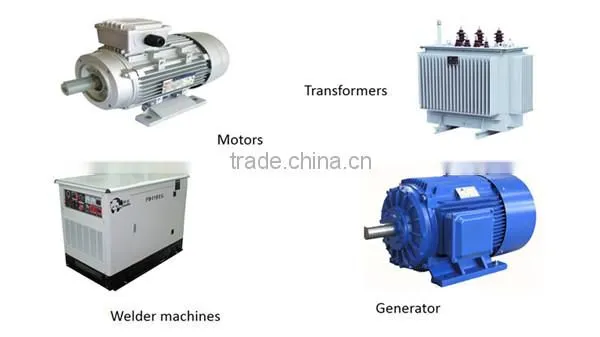

9.Product Application
1.power transformers, linear motors, relays, solenoids, small motors, clock coils, watch coils, magnetic heads, instruments,speakers,
2.Automotive sensors and coils as relais and ignition coils,
3.Generators,dry-type or oil-immersed transformer.
4.Anti-explosion motor,air-conditioner compressor,washing machine.
5.Military and space applications
11.Company Information
Xuchang Huayuan Electric Apparatus Co., Ltd. was established in 1993 and we have developed into a professional manufacturer of enamelled wire and paper covered copper wire as well as fiber-glass covered copperwire. Our 100,000sqm factory is ISO9001 (00112Q213049R1M/4100) certified, and our products are also UL listed. Our workshop maintains constant temperature and humidity to guarantee the quality.
