Product Details
Place of Origin: | Henan, China | Brand Name: | HUAYUAN | Model Number: | QZB-2/155 |
Type: | Insulated | Application: | Other, Transformer,Generator,Refrigerating system,Heat-resistant motor | Conductor Material: | Copper |
Conductor Type: | Solid | Insulation Material: | Enameled |
Product Description
1.70mm*3.15mm coated copper wire,high breakdown voltage,nature of bussiness list,products manufacture
TEST REPORT
Name | 1.70mm*3.15mm coated copper wire | |||
Type | QZB-2/155 | |||
Specification | 1.70×3.15 | |||
Standard | GB/T7095.3-2008 | |||
Test Item | Unit | Technical requirement | Test result | |
Appearance |
| Bright and clean, uniform color. Without defect | Ok | |
Conductor | Thickness(a) | mm | ±0.030 | 1.702 |
Width(b) | mm | ±0.030 | 3.152 | |
Thickness of Insulation | Thickness(a) | mm | 0.120~0.170 | 0.130 |
Width(b) | mm | 0.120~0.170 | 0.150 | |
Electrical Resistance(20°C) | Ω.mm2/m | ≤0.017241 | 0.01693 | |
Flexibility and adhesion |
| After the (cutting) stretched 15%, loss of adhesion of the film should not be greater than the distance 1b. | Not loss adhesion | |
Elongation | % | Size a ≤2.5 30% >2.5 32% | 44% | |
Resistance to heat shock |
| 6a in diameter test rod bent broadside, No cracking after 175 ºC film processing. | No cracking | |
Breakdown Voltage at Room Temp | KV | In five breakdown voltage, four of all is ≥2.0KV, the last is ≥50%. | 4.9,3.5,4.2,4.0,6.2 | |
packing | Meet export standard | |||
Result | Up to standard |

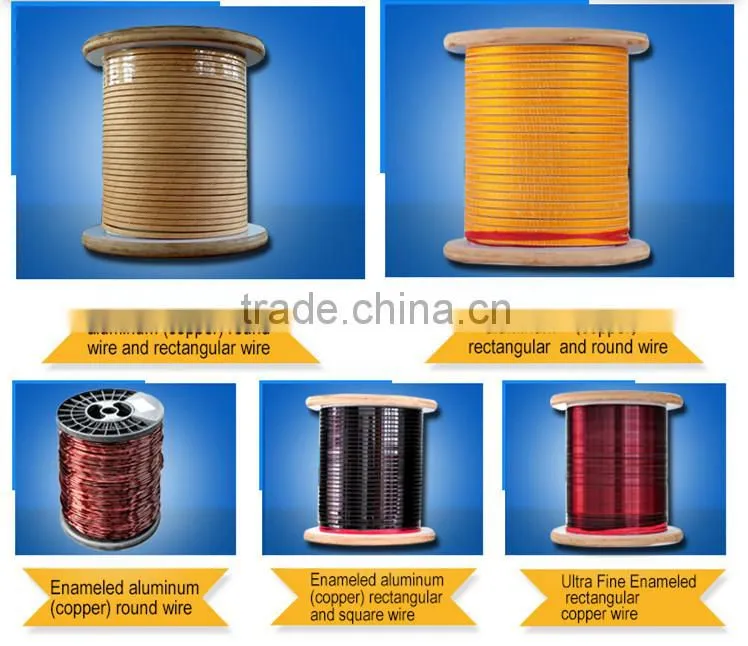

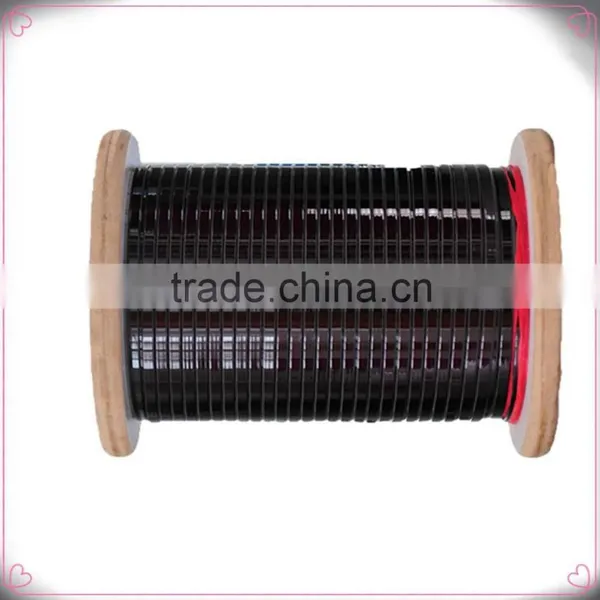

Rectangular wire
a:0.80mm-5.00mm
b:2.00mm-16.00mm
Good feature
l High temperature resistance
l Chemical corrosion resistance Transformer oil resistance
l Low temperature resistance Radiation resistance
l High breakdown voltage
l Good mechanical properties

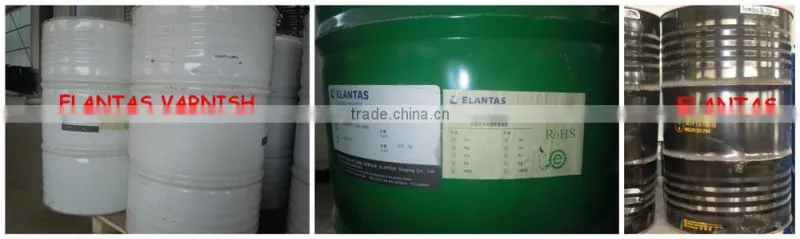

Material
Drawing or extruding bare aluminum wire confirm to national standard, smooth surface, no defects .Good performance insulation varnish, polyester or polyester-imide insulation varnish as underlying coat, Polyamide-imide as superimposed coating.
Standard
l GB/T6109/IEC60317-0-1
l GB/T23312/IEC60317-0-3
l MW76-A
l MW35-A
Application
l Transformer
l Generator
l Refrigerating system
l Heat-resistant motor
l UPS power source
Certificate

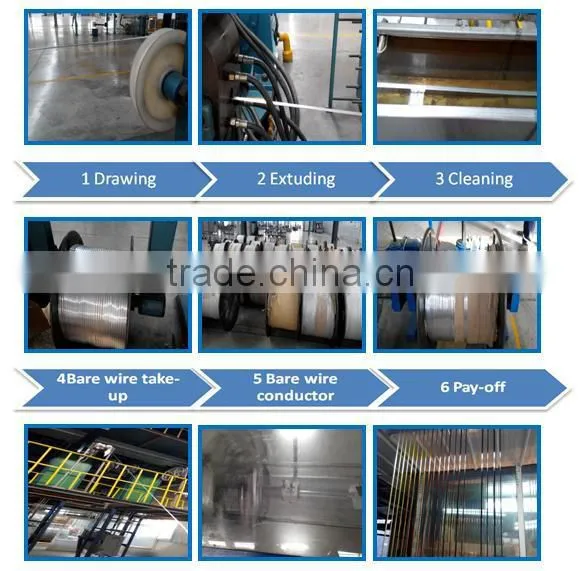

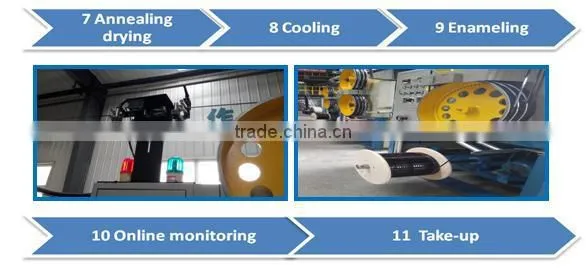

Production process

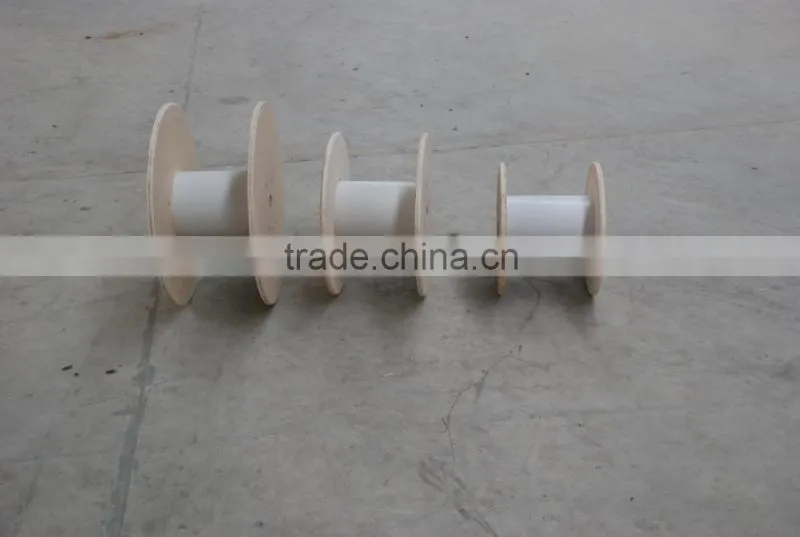

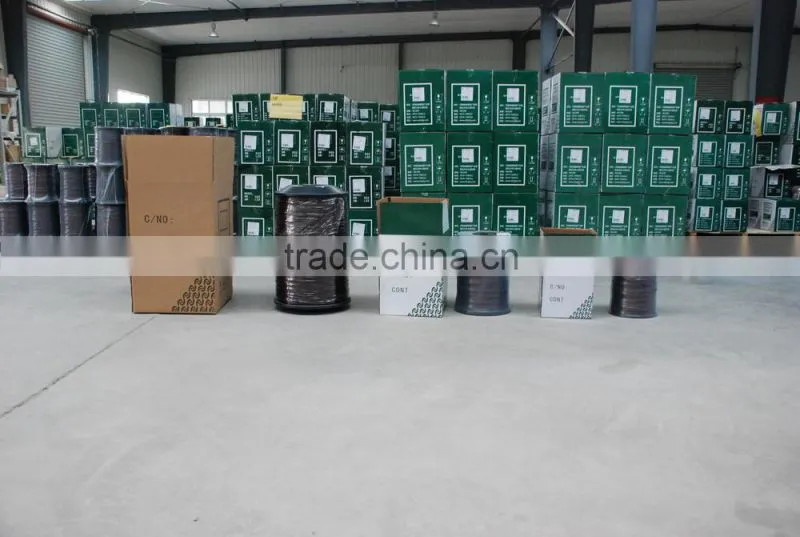

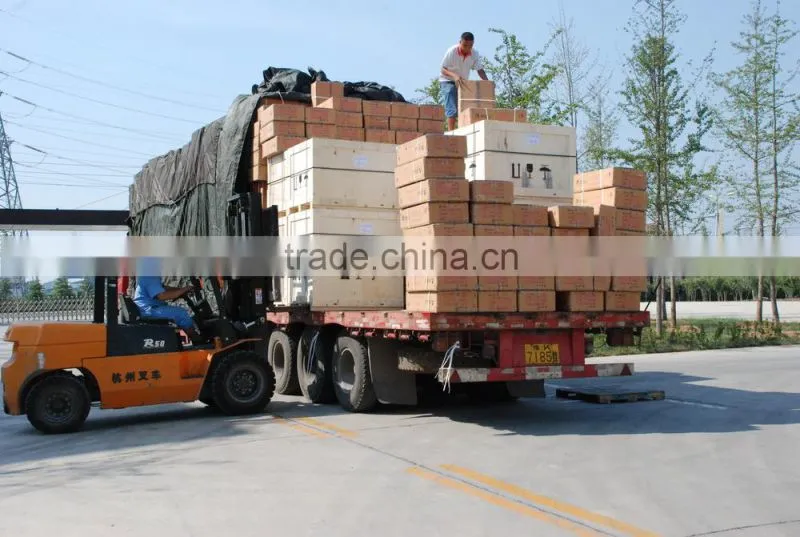

Packaging
l We have strong technical strength and develop new products continuously.
l We can supply very professional solution to our client.
lWe issued test reports for every shipment.
sample arrangement
l Enameled wire sample is free for customers,and sample freight is paid by customers.
Customized product: We have two editor for GB Standard.The customers shoud pay the mold cost firstly. When the order carried out we will refund the mold cost.
l Sample is free,its shipping time is 3-5days.
Brief introduction

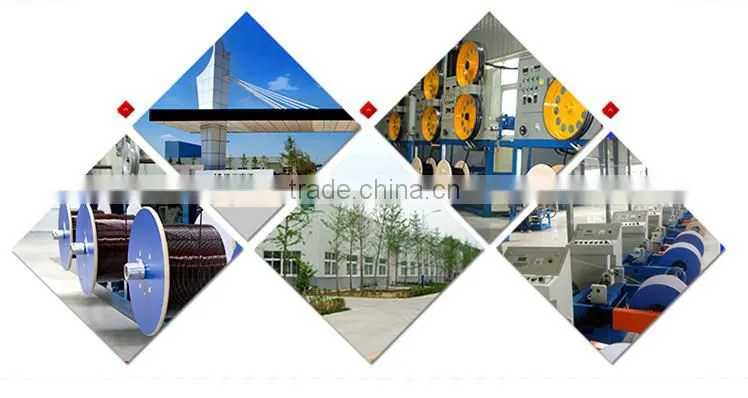

Located in Yanling County, Henan Province Of China,Huayuan was established in 1993,has developed a professional manufacturer of Magnet Wires in China,and our products conform the standards of IEC, NEMA ,ROHS,ISO9001,UL.
Our team
You can choice other products.
The phone is on-line all day.
Contact Us
- Xuchang Huayuan Electric Apparatus Co., Ltd.
- Contact nameRose Rose
- Phone0086-374-8579111
- AddressSouth of Weilai Avenue, Industry Cluster District, YanlingCounty, Xuchang City, Henan Province, China Xuchang,Henan
