Help CenterFurukawa Copper Rectangular Enameled Magnet Wire
Related Products
-
Modified Polyester Enamel Copper Wire for WindingUS$ 3.41 - 6.05MOQ: 400 Kilograms -
Enameled Copper Rectangular Wire 180 Class,from Pvc,generator Price,aluminum Conductor MaterialUS$ 8.95 - 10MOQ: 400 Kilograms
-
Enameled Copper Rectangular Wire 200 Class,for Welding Machine,generating Electricity With Wires,voice Coil WireUS$ 8.95 - 10MOQ: 400 Kilograms
-
Enameled Copper Wire Peeling Machine,price 1 kg Copper,China ManufacturerUS$ 8.95 - 10MOQ: 400 Kilograms
-
Copper Conductor Material and Insulated Type Enamelled Copper WiresUS$ 8.95 - 10MOQ: 400 Kilograms

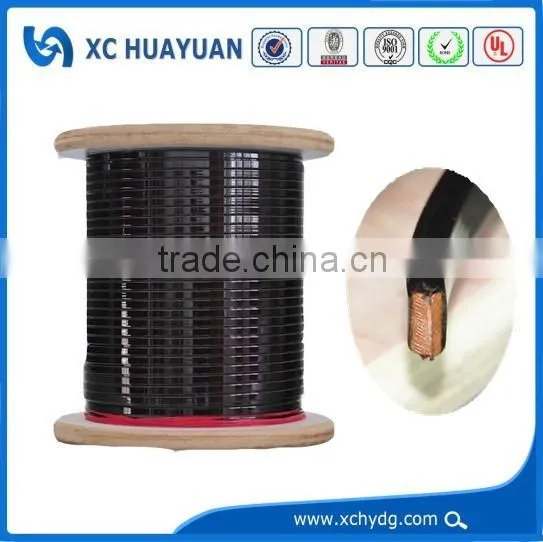

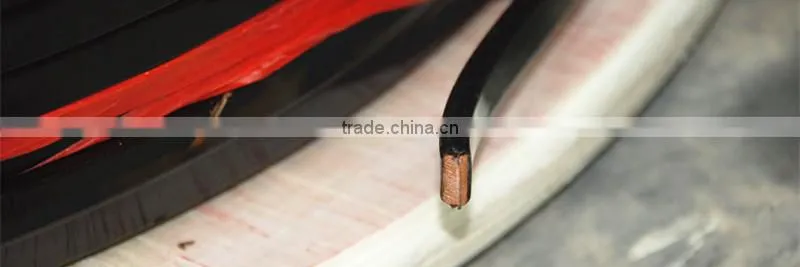

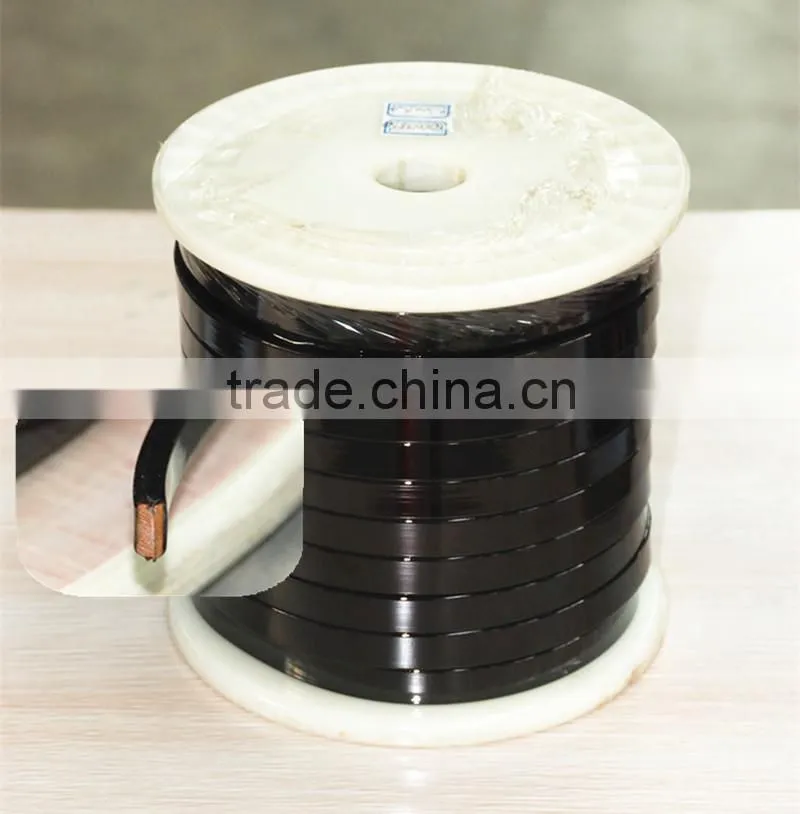

furukawa copper rectangular enameled magnet wire
Rroduction size a 0.8-5mm b.2-16mm.
Standard: NEMA, GB,JIS
Thermal Class: 130/155/180/200/220 centigrade
EIW/AIW/UEW
Insulation thickness: G1,G2
Certifications: UL ,ISO,ROHS,BV
Item |
furukawa copper rectangular enameled magnet wire |
Size |
Rectangular wire: Side a:0.80-5.00mm,Side b:2.00-16.00mm |
electrical resistance |
0.017241/0.02785Ω.mm2/m |
Breakdown voltage |
According to the products |
Coverage layer |
no loose after wound specified turns around a mandrel |
Appearance |
Wrapping firmly,tightly,evenly and no wrinkling |
Packing |
Wooden spool, length are customizable |
Advantages of furukawa copper rectangular enameled magnet wire
a)Chemically resistant
b)Excellent thermal stability
c)High resistance to abrasion
d)Better sliding during coil insertion in slots
e)Excellent dielectric and mechanical properties
f)Very good chemical resistance to common solvent and coolants
4.Test report
Name |
magnet rectangular enamelled copper wire |
|||
Model |
Q(Z/Y)LB-2/180 |
|||
Diameter |
2mm*6mm |
|||
Standard |
MW36-A |
|||
Test Item |
Unit |
Technical Requirement |
Test Result |
|
Appearance |
|
bright and clean, Uniform color, |
Ok |
|
Bare Conductor |
a |
mm |
±0.03 |
2.01 |
b |
mm |
±1% |
6.03 |
|
Thickness of insulation film |
a |
mm |
0.102-0.152 |
0.115 |
b |
mm |
0.127-0.178 |
0.160 |
|
resistance |
Ω/m |
≤0.02785 |
0.02776 |
|
Elongation |
|
>15% |
21% |
|
Flexibility and adhesion |
|
15% No cracking |
no cracking |
|
Resistance to heat shock |
C |
200C insulation film no cracking |
Tensing 10% half an hour, no cracking |
|
Resistance to solvent |
|
Standard solvent "H" Pencil |
2H is ok |
|
Breakdown Voltage |
KV |
2.5 KV |
4.8,4.9,4.6,4.2 |
|
package |
|
Meet the export standards |
Ok |
|
Quality Control Result |
|
Ok |
||
5.Q C office

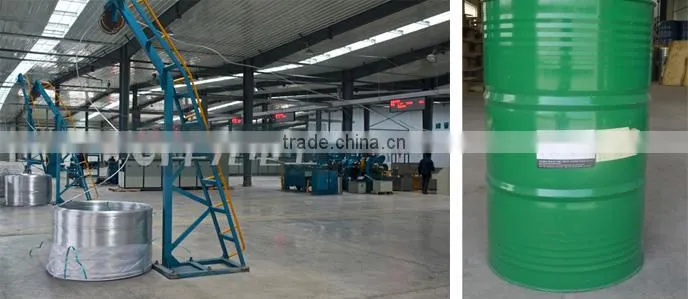

6.Material
Elantas varnish |
Temperature Class |
Polyurethane/Polyamide |
Class 155,Class 180 |
Polyurethane |
Class 155,Class 180 |
Modified Polyester/Polyamide |
Class 180 |
Modified Polyester |
Class 200 |
Modified Polyester/Polyamideimide |
Class 200 Class 220 |
Modified Polyester/Polyamideimide/Bondcoat |
Class 180 |

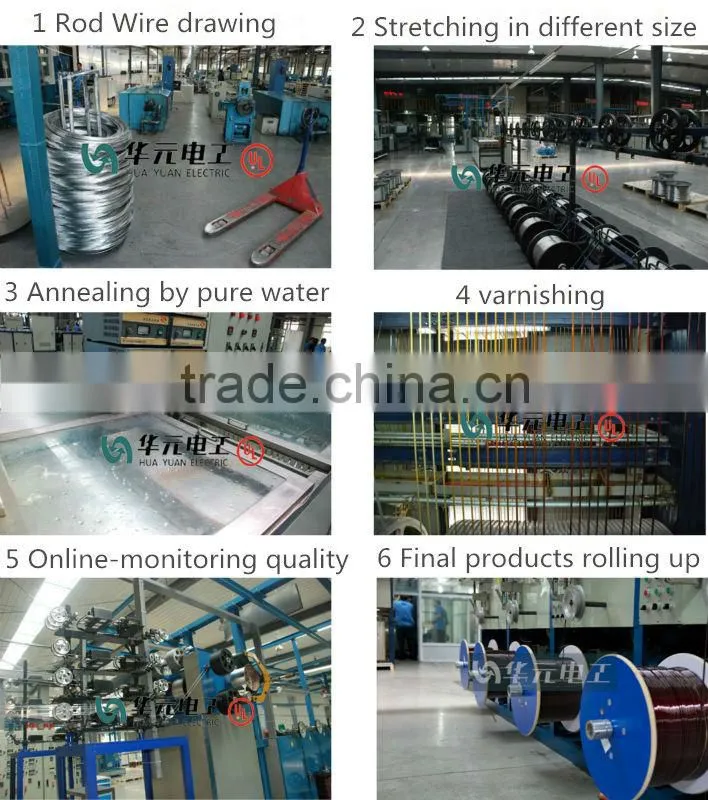

7.steps to produce enameled rectangular copper wrie

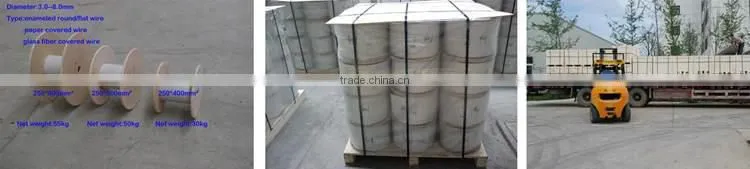

8. Packaging & Shipping
We can provide neutral package.or cuatomers special requirement.
Normal Packing as follows:
Inner packing: different plastic spool according to wire diameter
Outer packing: wooden spool and in wooden case or according customers' special requirement
Sample:
sample free
Sample shipping time:3-5days
Order and shipping time: negotiate
9.Our Services
1.free sample can be provide.
2. Many foreign trade corporation buy product from our factory
3.customized product; we have two editor of GB standard. We can satisfy the customer special requirement of the enameled material, if you have problem,pls feel free to contact us.

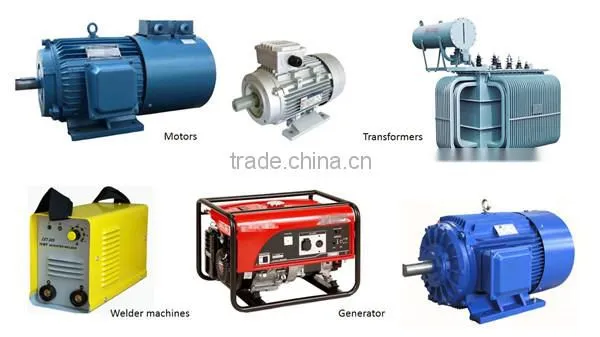

10.Product Application
1.power transformers, linear motors, relays, solenoids, small motors, clock coils, watch coils, magnetic heads, instruments,speakers,
2.Automotive sensors and coils as relais and ignition coils,
3.Generators,dry-type or oil-immersed transformer.
4.Anti-explosion motor,air-conditioner compressor,washing machine.
5.Military and space applications
11.Company Information
Xuchang Huayuan Electric Apparatus Co., Ltd. was established in 1993 and we have developed into a professional manufacturer of enameled material and paper covered copper wire as well as fiber-glass covered copperwire. Our 100,000sqm factory is ISO9001 (00112Q213049R1M/4100) certified, and our products are also UL listed. Our workshop maintains constant temperature and humidity to guarantee the quality.
1-)We support SAMPLES FREE.
2-)Approved by UL,ISO9001,SGS and RoHS.
3-)Exported to over 50 countries, more than 200 overseas customers.
4-)Working area more than100000 m²
5-)20 years long history for manufacturing
6-)20 experts make up the Professional QC Team.
