ISO Certificated Winding Wire Enamelled Rectangular Aluminum Wire

Name: ISO Certificated Winding Wire Enamelled Rectangular Aluminum Wire
Brand: HUAYUAN
Availability: InStock

FOB Price

US$ 3.41 - 6.05 / Kilogram

500 Kilograms(Min. Order)

Port Tianjing /Shanghai /Qingdao
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	HUAYUAN
Model Number	Q(Z/XY)LB-2/200	Type	Insulated
Application	Other, Transformer,Generator	Conductor Material	Aluminum
Conductor Type	Solid	Insulation Material	Enameled

Product Description

Specifications

Conductor Diameter:
Side A: 1.0-6.0mm / Side B: 2.0-16.0mm
Superiority:High breakdown voltage and good mechanical properties

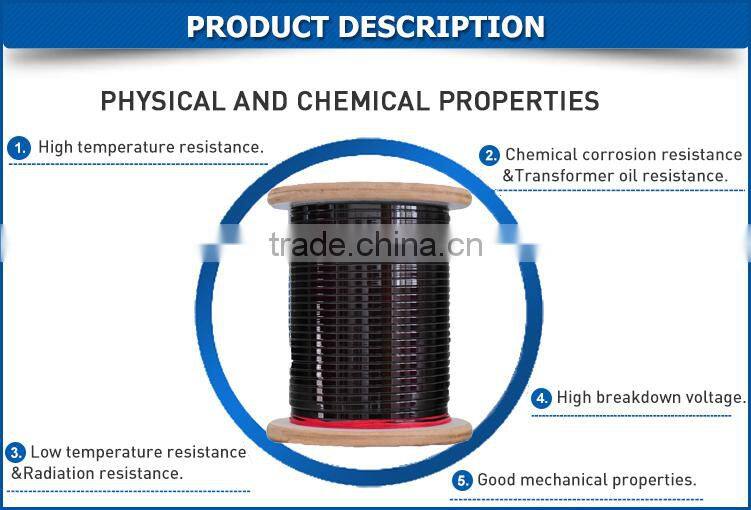

Product Description

Specification:

Conductor: aluminum.
Diameter: side a:1.0-6.0mm side b:2.0-16.0mm

Standard: IEC, NEMA, GB,JIS.

Certification: SGS, UL Approved; iso9001, iso14001,RoHS Certificated

Test Report

Name			Enamelled rectangular aluminum wire
Type			Q(Z/XY)LB-2/200
Diameter			2mm×9mm
Standard			MW36--A
Test Item			Unit	Standard	Test Result
Size	Bare Conductor	a	mm	±0.030	2.003
		b	mm	±0.080	9.038
	Thickness of insulation film	a	mm	0.102-0.152	0.132
		b	mm	0.127-0.178	0.162
Appearance				bright and clean, Uniform color,	Ok
resistance			Ω.mm²/m	≤0.02785	0.02778
Elongation				≥15%	33%
Flexibility and adhesion				15% No cracking	no cracking
Resistance to heat shock			C	220℃ insulation film no cracking	Tensing 10% half an hour, no cracking
Resistance to solvent				Standard solvent "H" Pencil	2H is ok
Breakdown Voltage			KV	≥2.5 KV	4.8,6.0,6.0,5.7
package				Meet the export standards	Ok
Quality Control Result				Ok

Production flow

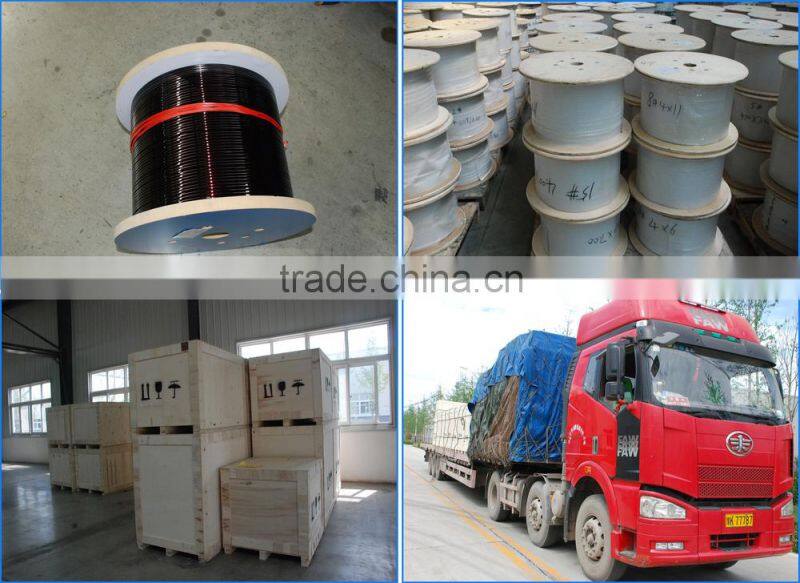

Packaging & Shipping

Inner packing:Plywood Wooden Spool
Outer packing:wooden pallet with paper board and stretched film according to customers' special requirements.

Our product has been packed in wooden case in order to protect enamelled aluminium wire from damage during transport.

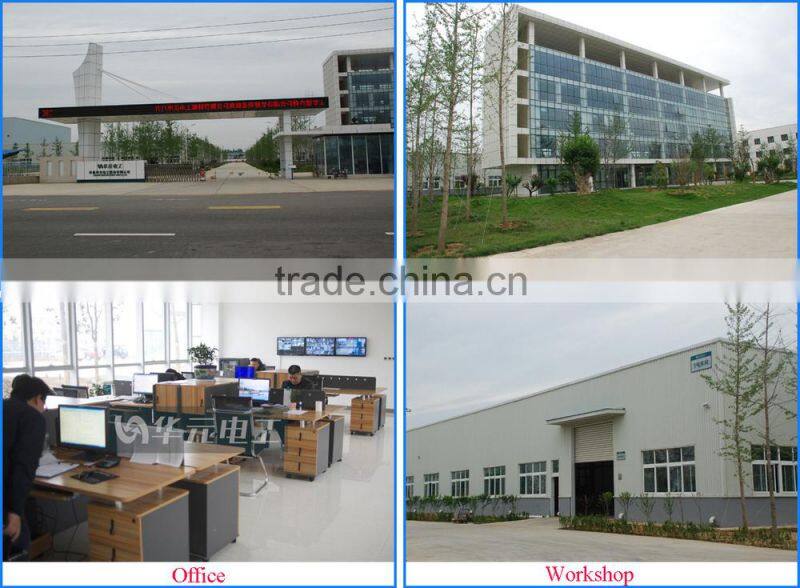

Company Information

Founded in 1993, Xuchang Huayuan Magnet Wire Co.,Ltd located in Henan Province with covering an area of 100000 m2 and a building area of 30000m2.We are producers with more than 20 years of production experience.Since our factory was established,we have been engaged in researching and manufacturing enamelled magnet wire and winding magnet wire.

Main Product

Our experimental equipment

Typical applicayion include :

Contact Information

Our Services

FAQ

1.Can we supply the sample for free?

Yes,we can.

2.How many types of our product?

We can supply enamelled aluminum wire,enamelled copper wire,paper covered magnet wire,fiber glass covered magnet wire and other magnet winding wire.

3.How long has been our company established?

We has produced since 1993.

4.What's our MOQ?

500kg.

5.Which payment terms we prefer?

(1) L/C

(2) T/T

(3) D/P

(4) Western Union
