High Quality Enamelled Rectangular Aluminum Coil
- Tianjin /Shanghai /Qingdao
 - T/T D/P D/A Credit Card

You May Like
-


UL Certificate Best Price Coated Tetragon Aluminum Wire on
 -


China Manufacture for Enamelled Aluminum Flat Wire
 -


UL Certificate Best Price Enamelled Aluminum Winding Coil
 -


China Manufacture Enamelled Rectangular Winding Wire for Transformer Coil
 -


China Manufacturer for Enamelled Aluminum Electric Coil
 -


Enamelled Rectangular Aluminum Wire Electrical Wire

Product Details
| Place of Origin | Henan, China | Brand Name | HUAYUAN | |
| Model Number | Q(Z/XY)LB-2/200 | Type | Insulated | |
| Application | Other, Transformer,Generator | Conductor Material | Aluminum | |
| Conductor Type | Solid | Insulation Material | Enameled |
Product Description

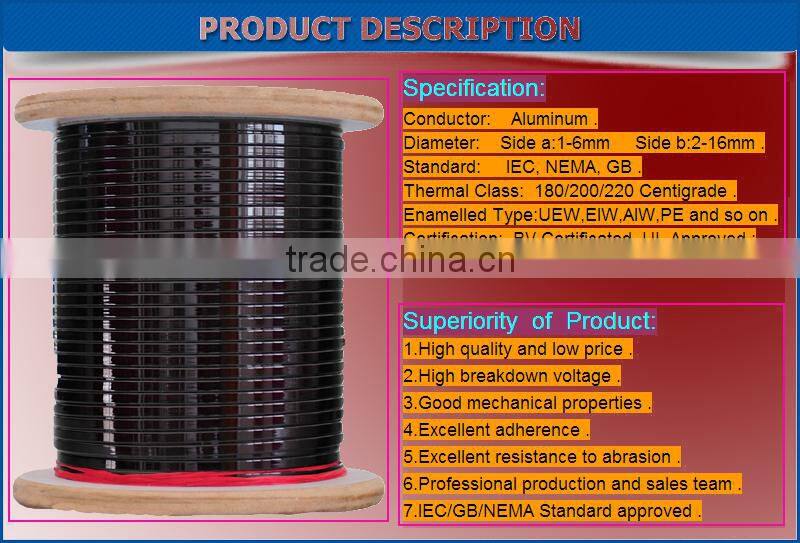

Description of enamelled rectangular aluminum coil :
Our Certification :
Test Report of enamelled rectangular aluminum coil :
| Name | Enamelled rectangular aluminum coil | ||||
| Type | Q(Z/XY)LB-2/200 | ||||
| Specification | 2.000mm×9.000mm | ||||
| Standard | MW36--A | ||||
| Test Item | Unit | Standard | Test Result | ||
| Size | Overall Diameter | mm | 2.182×9.258 | 2.135×9.200 | |
| Bare Conductor | a | mm | ±0.030 | 2.003 | |
| b | mm | ±0.080 | 9.038 | ||
| Thickness of insulation film | a | mm | 0.102-0.152 | 0.132 | |
| b | mm | 0.127-0.178 | 0.162 | ||
| Appearance | bright and clean, Uniform color, | Ok | |||
| Resistance | Ω.mm2/m | ≤0.02785 | 0.02778 | ||
| Elongation | ≥15% | 33% | |||
| Flexibility and adhesion | 15% No cracking | no cracking | |||
| Resistance to heat shock | ℃ | 220℃ insulation film no cracking | Tensing 10% half an hour, no cracking | ||
| Resistance to solvent | Standard solvent "H" Pencil | 2H is ok | |||
| Breakdown Voltage | KV | ≥2.5 KV | 6.0,6.0,5.7,4.2  | ||
| Package | Meet the export standards | Ok | |||
| Quality Control Result | Ok | ||||
Production Flow of enamelled rectangular aluminum coil :

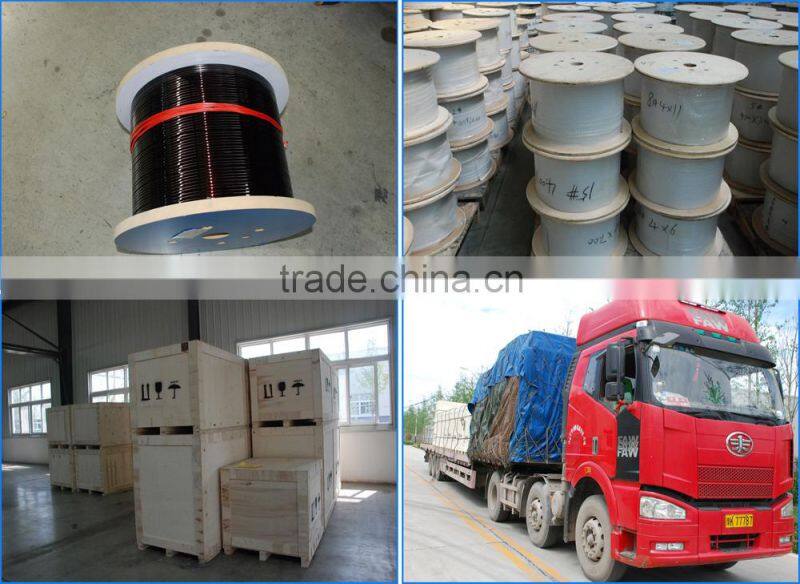

Inner packing:Plywood Wooden Spool.
Outer packing:wooden pallet with paper board and stretched film according to customers' special requirements .
Our product has been packed in wooden case in order to protect enamelled rectangular aluminum coil from damage during transport .
Founded in 1993, Xuchang Huayuan Magnet Wire Co.,Ltd located in Henan Province with covering an area of 100000 m2 and a building area of 30000m2.We are producers with more than 20 years of production experience.Since our factory was established,we have been engaged in researching and manufacturing enamelled magnet wire and winding magnet wire.Our main products are enamelled aluminum wire,enamelled copper wire,paper covered magnet wire,fiberglass covered magnet wire and other magnet winding wire .
Main Product:
Our experimental equipment:
Typical application include :
Contact Information:

We can supply enamelled rectangular aluminum coil,enamelled aluminum flat wire,enamelled copper wire,paper covered magnet wire,fiberglass covered magnet wire and other magnet winding wire.Please contact me freely at any time.
1,Q: Can we supply the sample for free ?
A: Yes,we can.
2,Q: How many types of our product ?
A: We can supply enamelled rectangular aluminum coil,enamelled aluminum rectangular wire,enamelled copper wire,paper covered magnet wire,fiberglass covered magnet wire and other magnet winding wire.
3,Q: How long has been our company established ?
A: We has produced since 1993.
4,Q: What's our MOQ ?
A: 500kg.
5,Q: Which payment terms we prefer ?
A: (1) L/C
(2) T/T
(3) D/P
(4) Western Union
