Help CenterMES Series Work Positioner
Negotiable
MOQ: 3 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
SINOLIFT
Model Number:
MES
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shanghai, China
Brand Name
SINOLIFT
Model Number
MES
After-sales Service Provided
Overseas service center available
Specifications

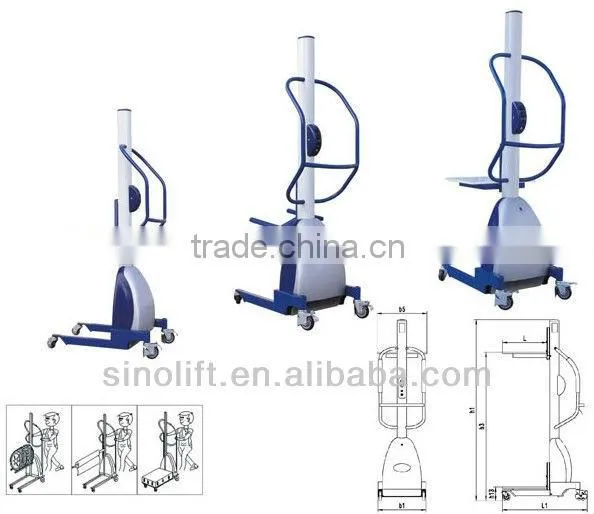

Lifter-TransporterLifter-Transporter
Our Lifter~Transporter is the excellent work transporter for Industrial, Laboratory, Office and "White Coat" industrial applications.
Conforms to EN1757-1 and EN1175-1
| Model | MES150 | MES150A | MES150B | MES150/801 | |
| Type of operation:hand, pedestrian, standing, seated, order-picker | hand | ||||
| Load Capacity /rated load | Q (kg) | 150 | |||
| Service Weight | Kg | 58 | 56 | 54 | 60 |
| Tyres:solid rubber, superelastic, pneumatic, polyurethane) | polyurethane | ||||
| Tyre size, front | 75x2 | ||||
| Tyre size, rear | 100x32 | ||||
| Wheels, number front/rear(x=driven wheels) | 4 | ||||
| Lowered mast height | h1(mm) | 1870 | |||
| Lift height | h3(mm) | 1420 | 1435 | 1440 | 1400 |
| Lowered height | h13(mm) | 130 | 115 | 110 | 65 |
| Overall length | l1(mm) | 880 | 865 | 920 | 920 |
| Overall width | b1(mm) | 520 | 500 | 500 | 801 |
| Fork dimensions | l(mm) | 460 | 445 | 500 | 500 |
| Width over forks | b5(mm) | 520 | 400(Φ40x2) | Φ60 | 650 |
| Travel Speed, laden/unladen | km/h | 4/5.3 | |||
| Lift speed, laden/unladen | mm/s | 125/156 | |||
| Lowering speed, laden/unladen | mm/s | 96/89 | |||
