CPD-F 0.5-1.5T DC Electric Counter Balanced Forklift Truck

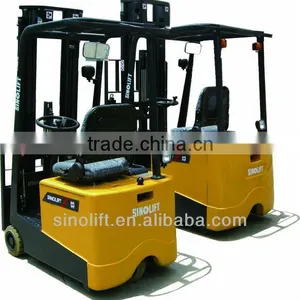

CPD-F 0.5-1.5T DC Electric Counter Balanced Forklift Truck thumbnail-1
CPD-F 0.5-1.5T DC Electric Counter Balanced Forklift Truck thumbnail-2
CPD-F 0.5-1.5T DC Electric Counter Balanced Forklift Truck thumbnail-3
CPD-F 0.5-1.5T DC Electric Counter Balanced Forklift Truck thumbnail-4
CPD-F 0.5-1.5T DC Electric Counter Balanced Forklift Truck thumbnail-5

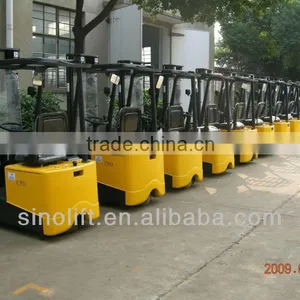

CPD-F 0.5-1.5T DC Electric Counter Balanced Forklift Truck thumbnail-6
CPD-F 0.5-1.5T DC Electric Counter Balanced Forklift Truck photo-1

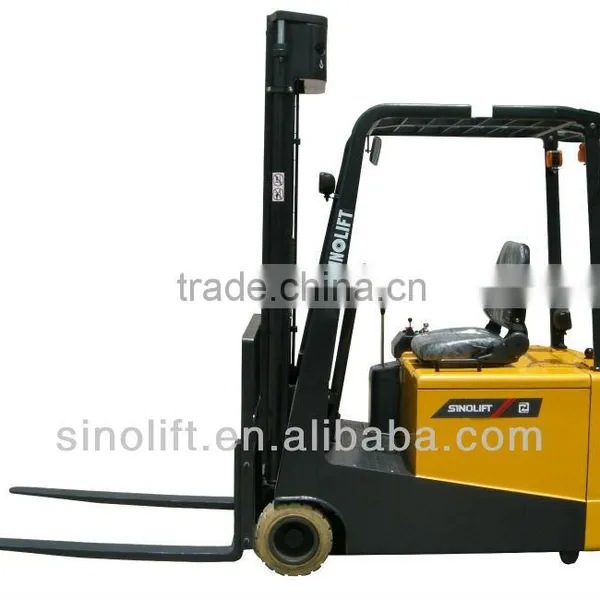

CPD-F 0.5-1.5T DC Electric Counter Balanced Forklift Truck photo-2

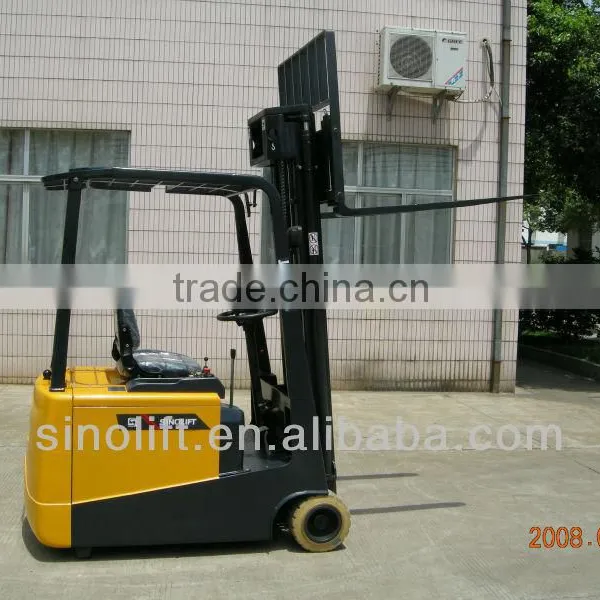

CPD-F 0.5-1.5T DC Electric Counter Balanced Forklift Truck photo-3

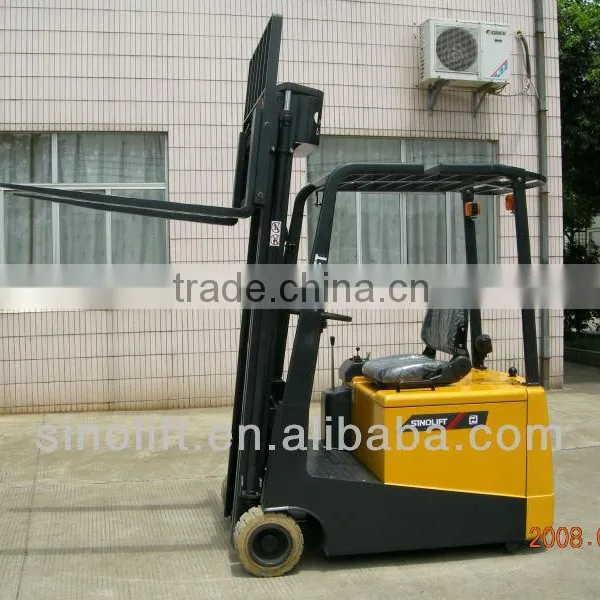

CPD-F 0.5-1.5T DC Electric Counter Balanced Forklift Truck photo-4

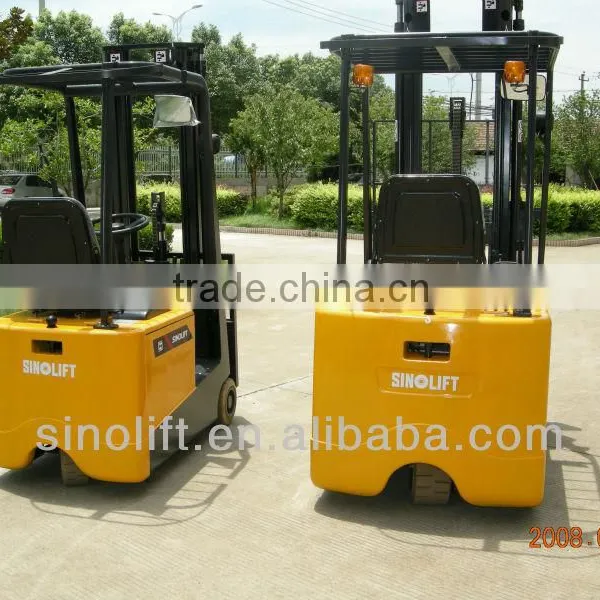

CPD-F 0.5-1.5T DC Electric Counter Balanced Forklift Truck photo-5

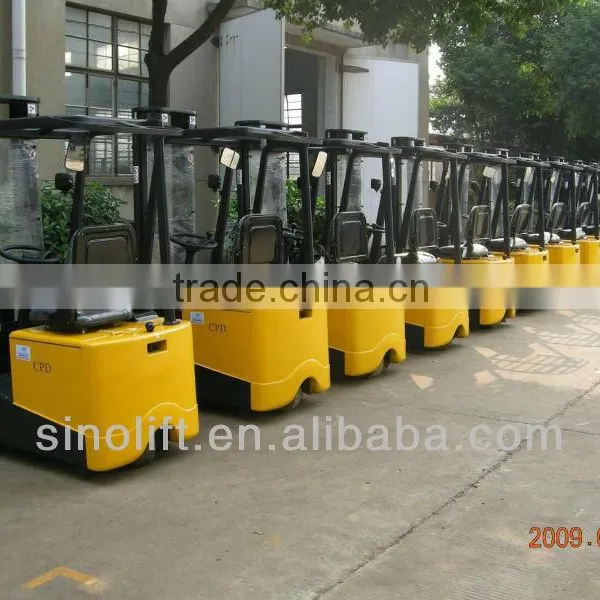

CPD-F 0.5-1.5T DC Electric Counter Balanced Forklift Truck photo-6
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Sinolift
Model Number:
CPD-F
Contact Supplier Request Quote Chat Now
Shanghai Sinolift Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name Sinolift
Model Number CPD-F
After-sales Service Provided Overseas service center available

Specifications

Electric Counter balanced Forklift Truck
1.capacity: 0.5-1.5T
2.brand:SINOLIFT
3.Low noise,no pullution.

Sinolift L series 3-fulcrum mini electric forklift (3-wheeled )

Model   CPD-0.5F CPD-0.75F CPD-1.0F CPD-1.5F
Capacity   Q kg 500 750 1000 1500
Load Center         © mm 400(500) 400(500) 400(500) 500
Lifting Height        h3 mm 3200 3200 3200 3000
Free Lifting Height h2 mm 1600 1600 1600 1500
Fork Length mm 800(1000) 800(1000) 800(1000) 1000(1150)
Fork Sideswith mm 100 100 100 100
Type of Lifting   Electric Hydralic
Speed of Lifting mm/sec >200 >200 >200 >230
Speed of Lowering m/min adjustable
Title of mast   α/β < 2° /5° 2° /5° 2° /5° 2° /5°
Height of Mast Lowered h1 mm 2080 2080 2080 2180
Height of Mast Extended h4 mm 3680 3680 3680 3780
Height of Overhead Guard mm 1900 1900 1900 1980
Height of Seat from Ground mm 850 850 850 900
Length of the face of fork mm 1260 1260 1350 1738
Overallwidth mm 800 800 800 1018
Thread (Front wheel) mm 860 860 950 853
Thread (Rear wheel)   mm 940 940 1030 1188
Wheelbase mm 660 660 660 740
Ground Clearance mm 90 90 90 90
Turing Radius mm 1150 1150 1240 1500
Min. Right angle aisle width   mm
Steering System   Hydraulic Hydraulic Hydraulic Hydraulic
Type of Drive   Electric Motor
Drive speed(load/unload) km/h 6.5/7.8 6.3/7.3 6.0/7.0 6.0/7.0
Speed Control   MOFSET
Gradeability % 8 8 8 8
Driving brake   Hydraulic Brake System
Parking brake   Hand Brake
Battery 24v D-210 D-280 D-320 D-400
Weight of battery kg 240 320 390 420
Weight of truck kg 1250 1380 1550 2650
Driving Motor kw 3
lifting motor kw 5
Wheel (front/rear)   Solid Rubber
Dimension of Front Wheel   φ267x127x165.1 φ267x127x165.1 φ267x127x165.1 φ330x127x165.1
Dimension of Drive Wheel   φ267x127x165.1 φ267x127x165.1 φ267x127x165.1 φ330x127x165.1

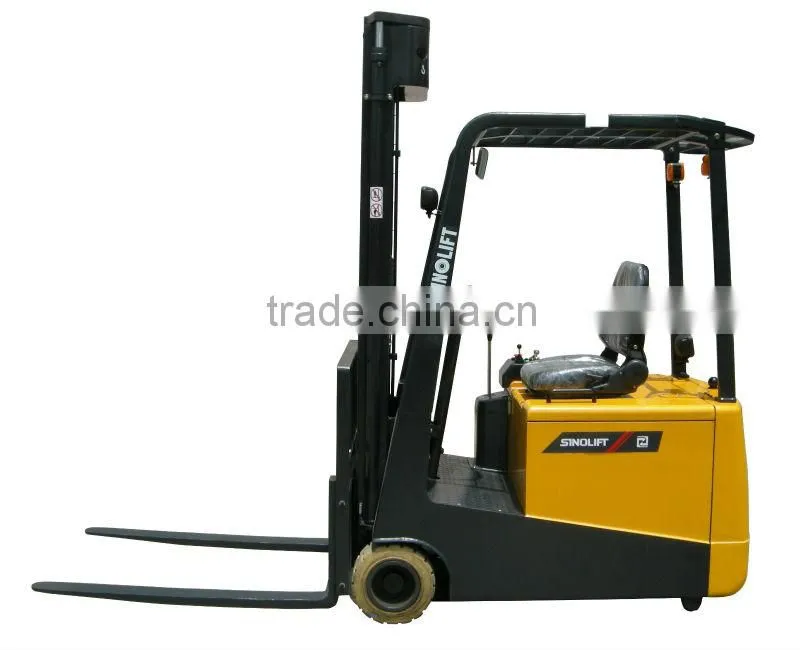

 CPD-F 0.5-1.5T DC Electric Counter balanced Forklift Truck
