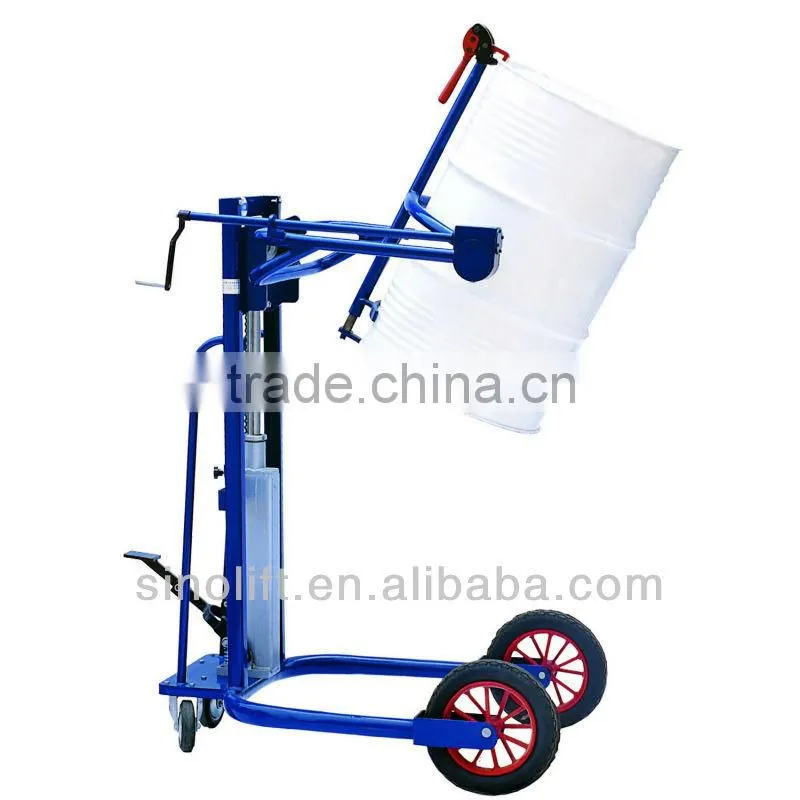

Help CenterCOT0.25 Hand Drum Rotating Truck
Related Products
Specifications
This Drum Lifter is mobile on Four wheels, two of which are steering type. All wheels are provided with double ball bearings wit| Model | COT0.25 (single Mast) | COT0.25 (duplex mast) |
| Rated lifting capacity(kg) | 250 | 250 |
| Lifting height(mm) | 1460 | 1600 |
| Overall dimension L×W×H(mm) | 1100×860×1540 | 1150×925×1410 |
| Self Weightkg) | 150 | 175 |
This Drum Lifter is mobile on Four wheels, two of which are steering type. All wheels are provided with double ball bearings with dust covers.
This Drum Lifter is composed of hydraulic system, main frame, Drum Holding device, gear box and and lifter. The Durm Lifter lifts drum with manual hydraulic jack
and equipped with return valve and foot pedal to control durm carriage lowering rate and ensure the hydraulic action accurate and reliably. One gear box is provided to rotate the Drum. After lifting the Drum hydraulically the Drum can be rotated up to required angle max 180 Degrees by turning the handle.
To grip the Drum safely & properly Two heavy duty holding devices are provided which grip the Drum from Top as well as from bottom.
Features :
1. Can be used in loading & unloading the Drums in the truck.
2. Can stack the Drums vertically or horizontally one over the other.
3. Can tilt 180 Degrees for pouring liquid to the last drop.
4. Can carry Drums to long distance.
5. It is quite a one man show, the Drum need not be touched by hand.
6. Can handle steel & Plastic Drums, as well.
This is the ultimate solution for quick, safe & fast Drum Handling in warehouses & plants.
