Help CenterCPD-SE Counterweight Stacker
Related Products
Specifications
CPD-SE Counterweight Stacker1.Capacity: 1200/1500kg
2. Optional lifting height: 2500/3000/3300/3500/4000mm
CPD-SE Counterweight Stacker
1)Features
1.200A Curtis transistor controller
2.High performance AC driving Motor,
3.SINOLIFT EPS controller
4.EPS system as standard, low energy consumption, low noise
2)Specification Date
| Model | Unit | CPD12-25/30/33/35/40SE(DF) | CPD12-25/30/33SE(D) | CPD15-25/30/33/35/40SE(D) | CPD15-37/40/45SE(TF) |
| Mast type | Duplex & free lift | Duplex | Duplex | Triplex & free lift | |
| Capacity | kg | 1200 | 1200 | 1500 | 1500 |
| Load center | mm | 500 | 500 | 500 | 500 |
| EPS(electric power steering) | standard equipped | standard equipped | standard equipped | standard equipped | |
| Optional lifting height | mm | 2500/3000/3300/3500/4000 | 2500/3000/3300 | 2500/3000/3300/3500/4000 | 3700/4000/4500 |
| Fork length | mm | 1070 | 1070 | 1070 | 1070 |
| Fork width | mm | adjustable maximum 680 | adjustable maximum 680 | adjustable maximum 680 | adjustable maximum 680 |
| Min.turning radius | mm | 1352/1430(with fork tilt) | 1352 | 1699/1785(with fork tilt) | 1699 |
| Min.travel speed | km/s | 5laden/unladen | 5laden/unladen | 5laden/unladen | 5laden/unladen |
| Min. lifting speed | m/s | 0.13laden/0.23unladen | 0.13laden/0.23unladen | 0.13laden/0.23unladen | 0.13laden/0.23unladen |
| Battery battery | Ah | 280Ah | 280Ah | 280Ah | 280Ah |
| Control system | CURTIS1230/200A | CURTIS1230/200A | CURTIS1230/200A | CURTIS1230/200A |

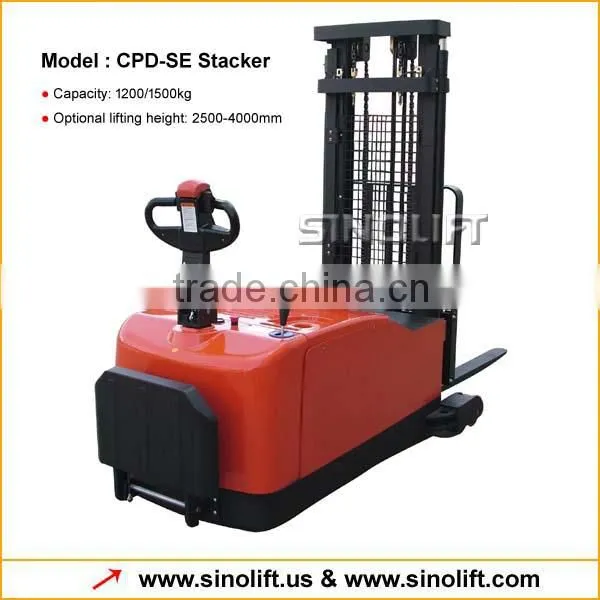

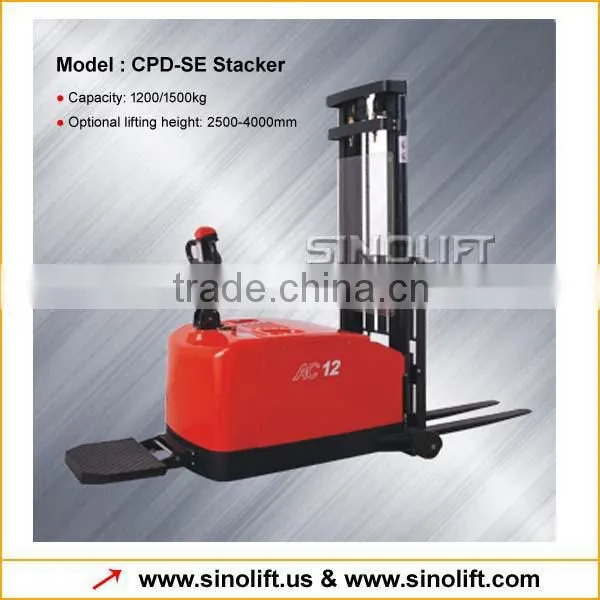

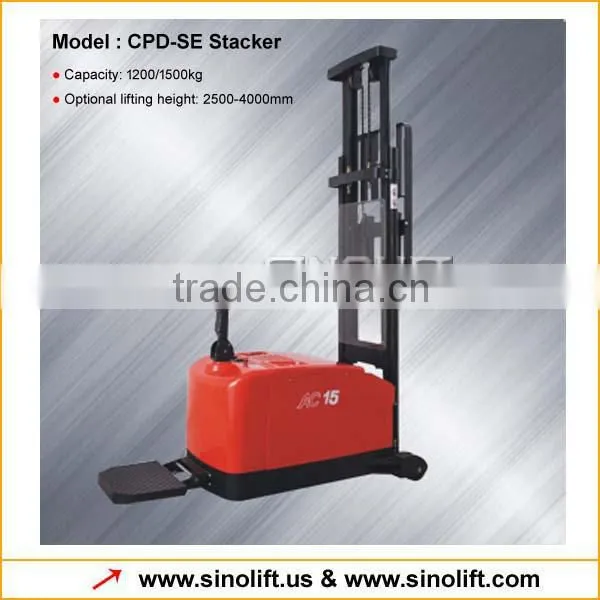

3)Photos

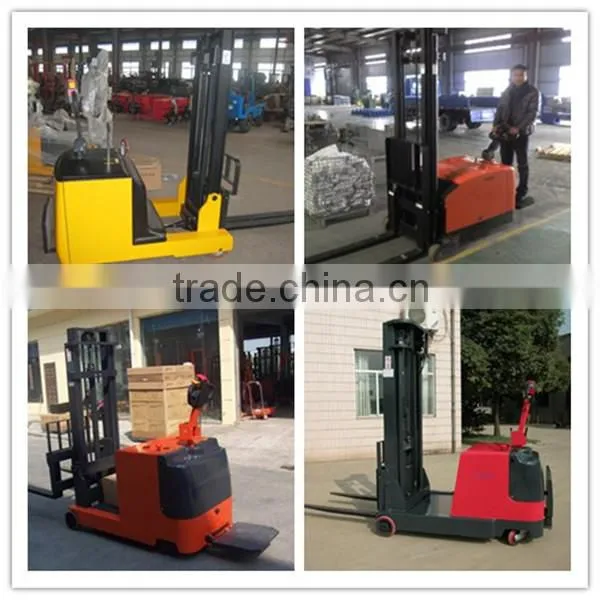

4)Workshop
5)Certificate
Shanghai Sinolift Equipment Co., Ltd is a production, design, manufacture, sales and service in one integrated production and trade enterprises. Main types of forklifts, material handling, storage and lifting products, also offer a variety of wire harnesses, TFT rule processing business, and produce a variety of OEM memory cards. Products are used in Germany and Japanese technology, all products passed "TUV", "CE", "GS" and "ISO9001" international quality system certification, the application of new technologies has unique.
6)Terms and Service
| Lead time | 3-4 weeks |
| Packing | Standard export fumigated wooden pallet, foam rubbers |
| Payment term | T/T payment in advance; L/C at sight |
| Lead term | FOB Shanghai or CFR/CIF |
| Warranty period | 12 months |
| Shipping method | by sea or air; by express |
7) Warranty Policy and Service Program
SINOLIFT give our customer warranty for each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us that we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items
