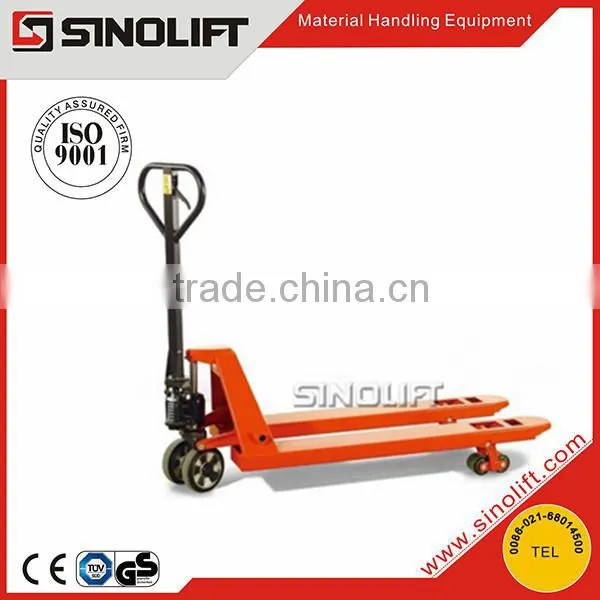

2015 SINOLIFT DF Series Hand Pallet Truck for Sale
1)Features of Hand Pallet Truck
1.The oil pump body is made by way of welding the prefabricated parts together first, then machining the welded body.
2.Ergonomic Large Rubber handle with three control lever. Special lowering valve to control the trucks durable
3.Chrome piston and ram for smooth operation and prevents excessive wear on the pump & seal.
4.Excellent turning angle of 180 degree facilities.
5.Number of pump strokes-10. Lift height per stroke:11mm.
6.Spray plastic painting surface
7.Option:nylon wheel,polyurethane wheel,rubber wheel single fork roller or tandem fork roller.
2)Specifications of Hand Pallet Truck
| Item/Type | DF20 | DF25 | DF30 | ||||
| Capacity Q | kg | 2000 | 2500 | 3000 | |||
| Min.fork height h | mm | 85 | 75 | 85 | 75 | 85 | 75 |
| Max.fork height h1 | mm | 200 | 190 | 200 | 190 | 200 | 190 |
| Steering wheel | mm | Φ200x50 | Φ180x50 | Φ200x50 | Φ180x50 | Φ200x50 | Φ180x50 |
| Load roller Single | mm | Φ80x93 | Φ74x93 | Φ80x93 | Φ74x93 | Φ80x93 | Φ74x93 |
| Load roller Tandem | mm | Φ80x70 | Φ74x70 | Φ80x70 | Φ74x70 | Φ80x70 | Φ74x70 |
| Size of fork e*s | mm | 160x60 | |||||
| Width overall forks B | mm | 450/520/550/685 | |||||
| Fork length I | mm | 800/900/1000/1100/1150/1220 | |||||

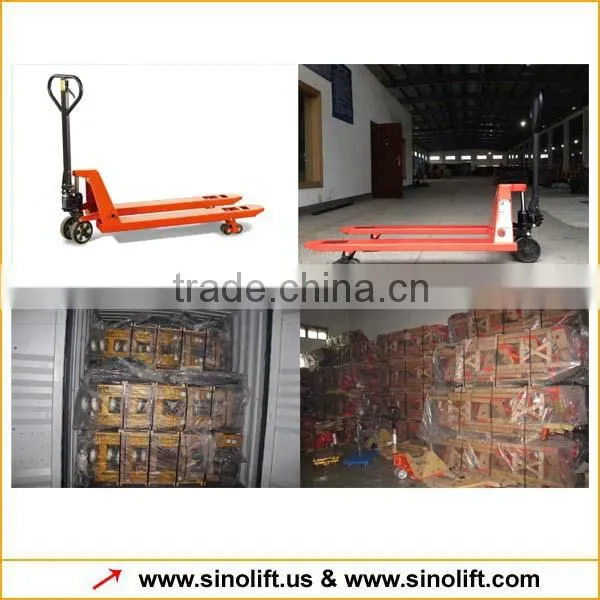

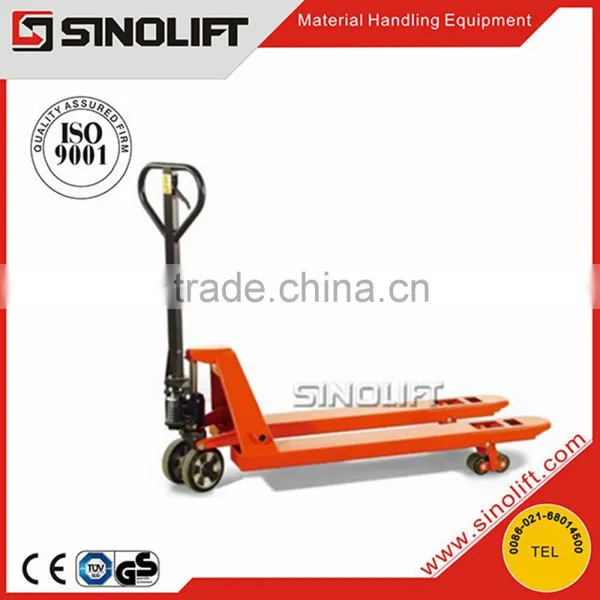

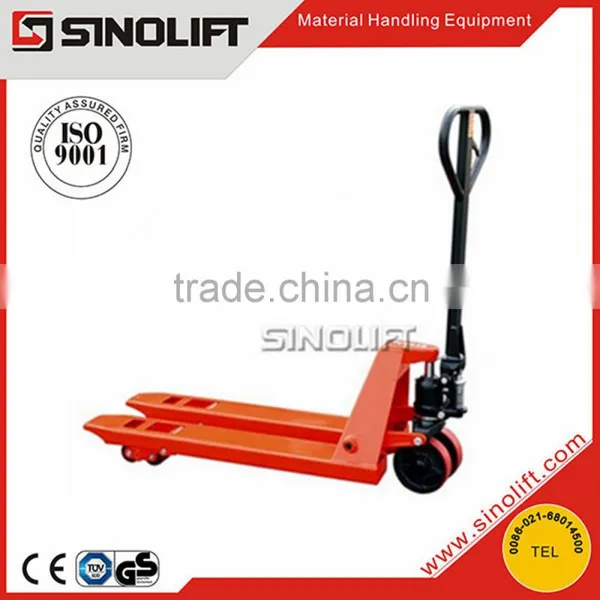

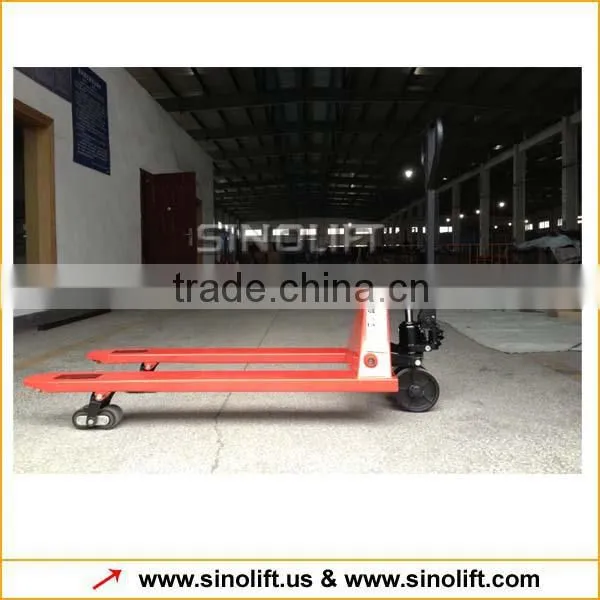

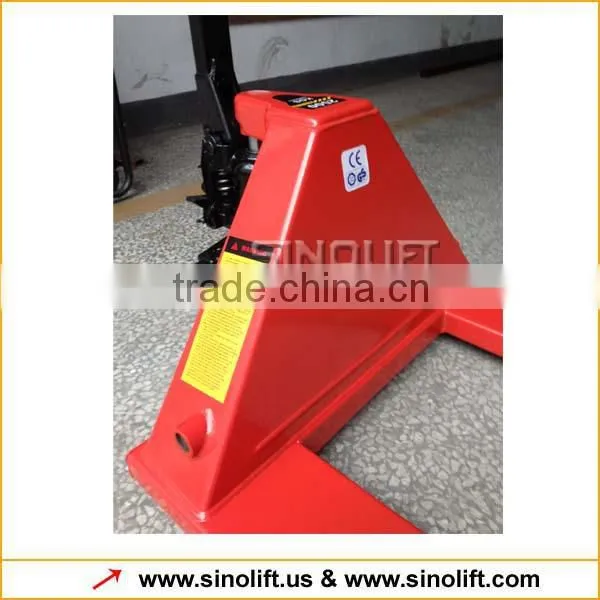

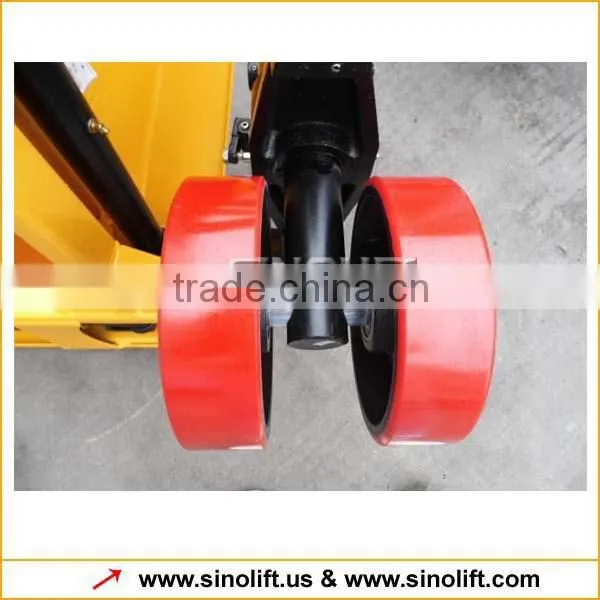

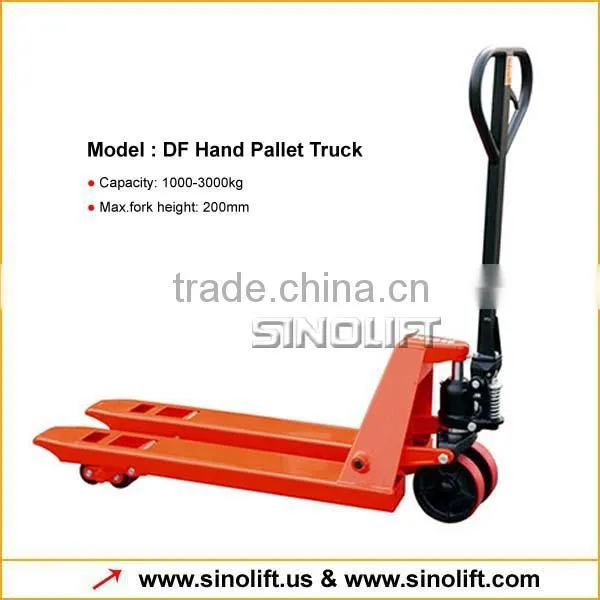

3)Pictures of Hand Pallet Truck
4)Workshop of Hand Pallet Truck
5)Certificates
6)Terms and Service
| Lead time | 3-4 weeks |
| Packing | Standard export fumigated wooden pallet, foam rubbers |
| Payment term | T/T payment in advance; L/C at sight |
| Lead term | FOB Shanghai or CFR/CIF |
| Warranty period | 12 months |
| Shipping method | by sea or air; by express |
7) Warranty Policy and Service Program
SINOLIFT give our customer warranty for each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us that we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items
8) Why choose us?
1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.
2- We are unique. We are not assembling, 95% core parts are produced by ourselves. And Sinolift is keeping on investing 30% of its margin on R&D.
3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection.
4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.
5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.
