Sinolift 2015 New NPL Series Low Profile Hydraulic Customrized Manual Pallet Truck
1)Features of Manual Pallet Truck
* A built in overload valve and totally sealed hydraulic pump.
* Japanese seal kit offers long span life of pump for 3 years warranty.
* Heavy duty and reinforced forks for greatest strength and durability.
* Entry rollers prevent physical exertion of the operator and protect load rollers and pallet.
* Maintenance free oil bushings at key points offer you less operating force and longer span life of pallet truck.
* With 65mm special lowered height this type of pallet truck was originally designed to handle tin plate packs. Now in great demand for container stuffed load handling.
* Diverse fork sizes on request such as 800,900,1000,1150,1200,1500,1800,2000,2500,3000mm lengths and 520,540,685mm fork widths.
* Maximum load capacity up to 2500kg
* Conforms to EN1757-2.
2)Specification Date of Manual Pallet Truck
Model |
Capacity |
Forkwidth |
Forklength |
Min. Height |
Max. Height |
Steer wheel |
(kg) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
|
NPL15-58 |
1500 |
520 |
820 |
65 |
165 |
Ø180*62 |
NPL15-59 |
520 |
990 |
||||
NPL15-510 |
520 |
1080 |
||||
NPL15-511 |
520 |
1160 |
||||
NPL15-712 |
685 |
1230 |
||||
NPL25-58 |
2500 |
520 |
820 |
65 (75) |
165(185) |
Ø180*62 |
NPL25-59 |
520 |
990 |
||||
NPL25-510 |
520 |
1080 |
||||
NPL25-511 |
520 |
1150 |
||||
NPL25-712 |
685 |
1230 |

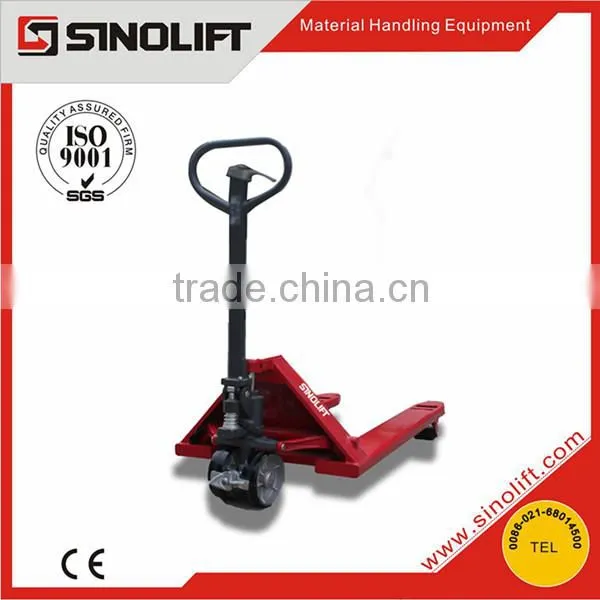

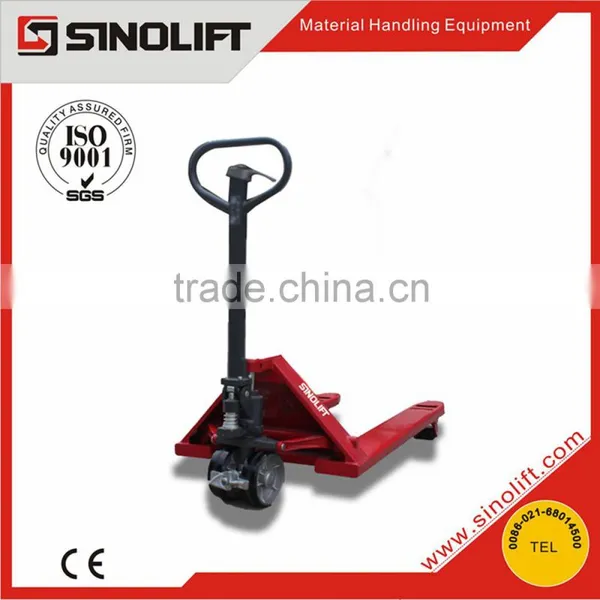

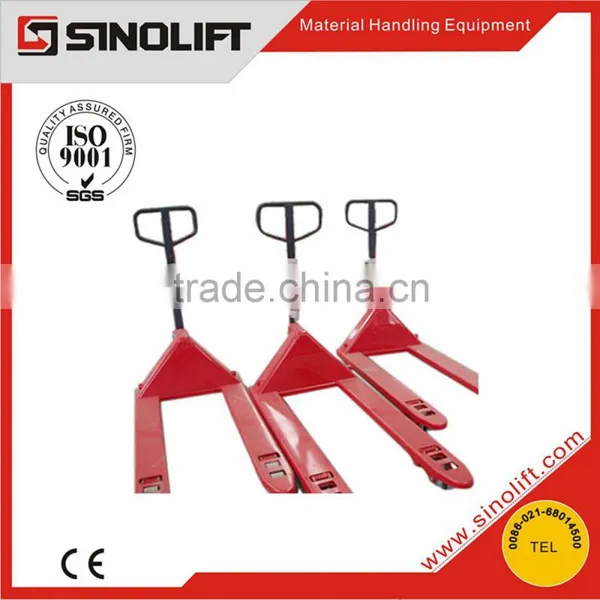

3)Photos of Manual Pallet Truck
4)Workshop
5)Certificate
Shanghai Sinolift Equipment Co., Ltd is a production, design, manufacture, sales and service in one integrated production and trade enterprises. Main types of forklifts, material handling, storage and lifting products, also offer a variety of wire harnesses, TFT rule processing business, and produce a variety of OEM memory cards. Products are used in Germany and Japanese technology, all products passed "TUV", "CE", "GS" and "ISO9001" international quality system certification, the application of new technologies has unique.
6)Terms and Service
| Lead time | 3-4 weeks |
| Packing | Standard export fumigated wooden pallet, foam rubbers |
| Payment term | T/T payment in advance; L/C at sight |
| Lead term | FOB Shanghai or CFR/CIF |
| Warranty period | 12 months |
| Shipping method | by sea or air; by express |
7) Warranty Policy and Service Program
SINOLIFT give our customer warranty for each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us that we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
