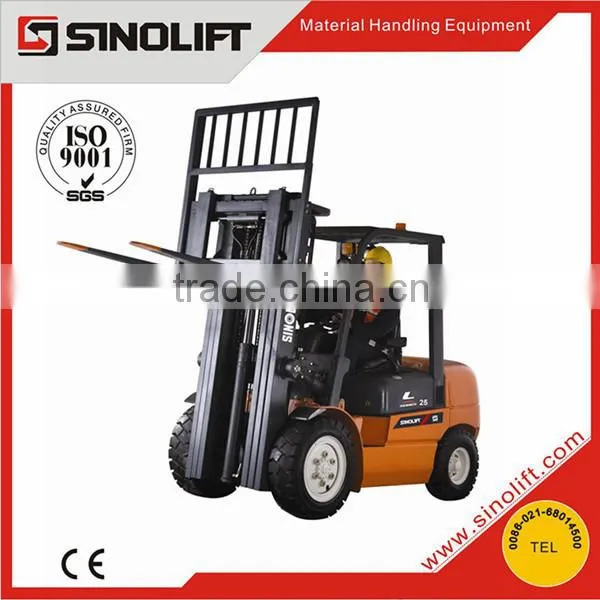

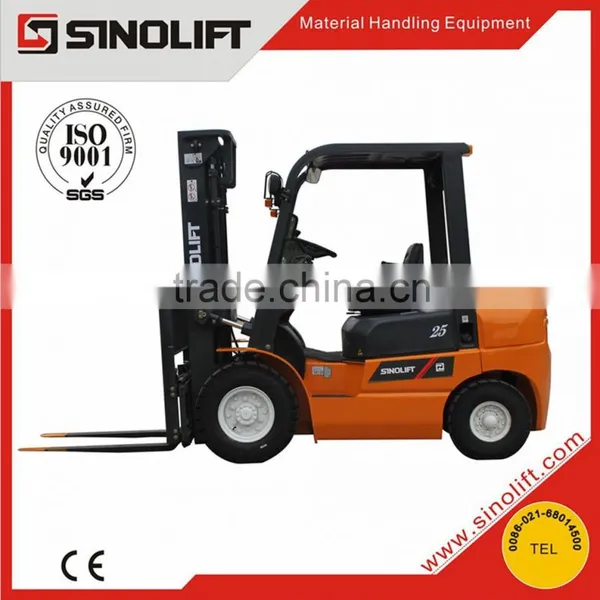

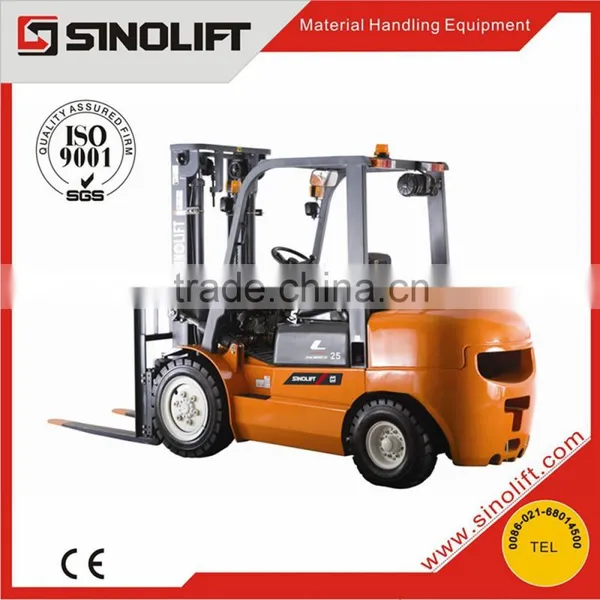

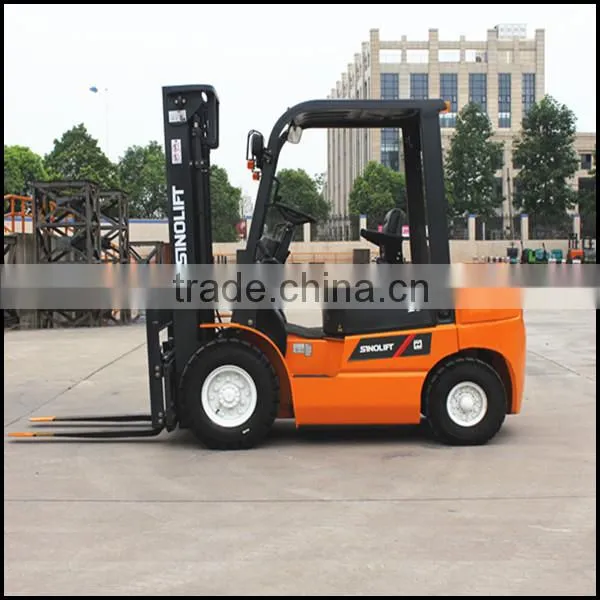

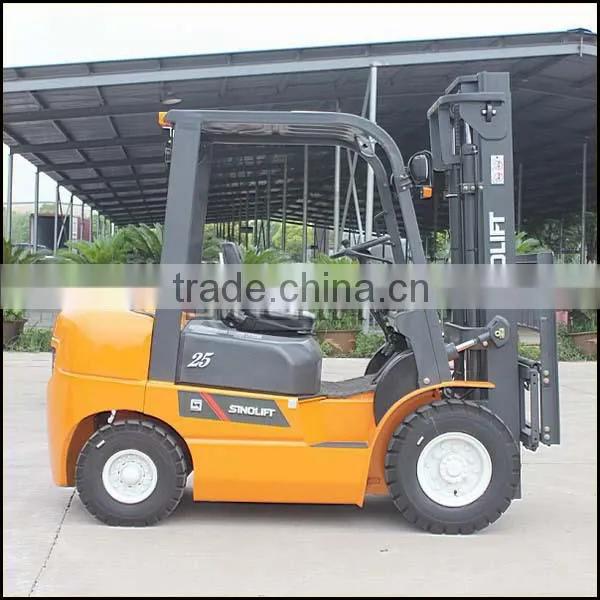

Sinolift CPCD2.5T Balance Weight Type Electric Isuzu Engine Diesel Forklift
1)Features of CPCD2.5T diesel forklift
Appearance
The latest appearance design method was used to create the R series fluent and aesthetic outline, which matches the latest appearance trend.
Efficiency
Thanks to the long wheelbase design, the longitudinal stability of whole truck is much better, the hoisting capacity at same lift height are enhanced by an average of 100KG compared with former truck. At the same time, it prolongs work time of rear wheel as the reduced rear axle’s load.
The travel speed of truck has been raised, for example, the 2-2.5T type comes to 20km/h.
Increasing the hard proportion of hydraulic pipe, adopting right angle connector or straight through connector, that reduce the pressure loss of pipeline, and raise the lifting speed of mast, the speed is increased by an average of 10% compared with former truck.
Clean
The environment friendly engines all meet EU stage-2 emission control regulation. The noise emission also comes to EU standard.
The metal hood and molding sound insulation matches environmental protection demands.
Safe
A throttling device is set in pipe system,the mast won’t result in failing control of mast even some pipes broke.
By using a built-in hood lock device, the safe level of the truck has been raised.
2)Specifications of CPCD2.5T diesel forklift
| Generals | Manufacture | Sinolift Diesel Forklift | |||||
| Model | CPC(D)25 | ||||||
| Power type | Diesel | ||||||
| Rated capacity | kg | 2500 | |||||
| Load center | mm | 500 | |||||
| Dimensions | Lift height | mm | 3000 | ||||
| Free lift height | mm | 140 | |||||
| Fork size N×U×L | mm | 1070*100*45 | |||||
| Mast tilt angle α / β | deg | 6/12 | |||||
| Front o-verhang G | mm | 482 | |||||
| Overall | Length to face of fork J | mm | 2580 | ||||
| dimensions | Overall width Q | mm | 1150 | ||||
| Mast lowered height C | mm | 1995 | |||||
| Mast extended height A | mm | 4037 | |||||
| Overhead guard height P | mm | 2060 | |||||
| Turning radius W | mm | 2240 | |||||
| Min. right angle aisle width X | mm | 2010 | |||||
| Performance | Travel speed (full load/no load) | Hydraulic | km/h | 17/19 | |||
| Mechanical | I | 8.5/9 | |||||
| II | 18.5/19 | ||||||
| Lift speed with load | mm/sec | 450 | |||||
| Max. gradeability | % | 20 | |||||
| Self weight | kg | 3880 | |||||
| Wheel & Tires | Tires | Front | 7.00-12-12PR | ||||
| Rear | 6.00-9-10PR | ||||||
| Tread | Front Q | mm | 970 | ||||
| Rear S | mm | 970 | |||||
| Wheelbase | MM | 1600 | |||||
| Ground clearance(no load/full load) | Mast M | mm | 85/105 | ||||
| Frame F | 100/105 | ||||||
| Drive units | Engine | Apply to truck model | CPC(D)25-X2 | CPC(D)25-W1 | CPC(D)25-W3 | ||
| Model | XINCHAI 490BPG | ISUZU C240PKJ | ISUZU HJ493 | ||||
| Rated output | kw/rpm | 37/2650 | 34.5/2500 | 39/2500 | |||
| Rated torque | N.m/rpm | 148/1900 | 139/1800 | 165/1800 | |||
| No.of cylinder | 4 | 4 | 4 | ||||
| Bore×stroke | mm | 90*100 | 86*102 | 92*93 | |||
| Displacement | L | 2.54 | 2.369 | 2.771 | |||
3)Details of CPCD2.5T diesel forklift
4)Forklift Family
5)Workshop
6)Packing and Loading into Container
7)Certificate
Shanghai Sinolift Equipment Co., Ltd is a production, design, manufacture, sales and service in one integrated production and trade enterprises. Main types of forklifts, material handling, storage and lifting products, also offer a variety of wire harnesses, TFT rule processing business, and produce a variety of OEM memory cards. Products are used in Germany and Japanese technology, all products passed "TUV", "CE", "GS" and "ISO9001" international quality system certification, the application of new technologies has unique.
8)Terms and Service
Lead time |
3-4 weeks |
Packing |
Standard export fumigated wooden pallet, foam rubbers |
Payment term |
T/T payment in advance; L/C at sight |
Lead term |
FOB Shanghai or CFR/CIF |
Warranty period |
12 months |
Shipping method |
by sea or air; by express |
9) Warranty Policy and Service Program
SINOLIFT give our customer warranty for each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us that we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items
10) Why choose us?
1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.
2- We are unique, which means you will have a unique partner with unique trucks in the market, in long term. We are not assembling, 95% core parts are produced by ourselves, for example EPS, Hydraulic units, driving units are all produced by Sinolift, the only one in China. And Sinolift is keeping on investing 30% of its margin on R&D. At present, Sinolift is the only producer who delivers EPS as standard on most models.
3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection. Sinolift Quality has been accepted by world market, 13 world famous brand names are cooperating with Sinolift.
4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.
5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.
6- Universal core parts and design between different models. Structure of Sinolift products and 80% core parts are universal between different models, which will reduce greatly service parts stock and make the job of service people much easier.
7- Most parts are available, no matter assembly or small components, because it’s produced by Sinolift itself. You don’t need to replace any assembly when its components are damaged, which will help to save 90% of the replacements parts cost sometimes.
8- Fast. Fast delivery time, Fast service and communication. Within one hour Sinolift will respond and within 3 hours we will offer the solution. Less than 15 days standard delivery time for electric products.
9- We don’t ask more though we do much better! We offer reasonable price level!
10- We're honest and straight forward at work because that's the way we are in our homes, we keeps loyal to our partners!
