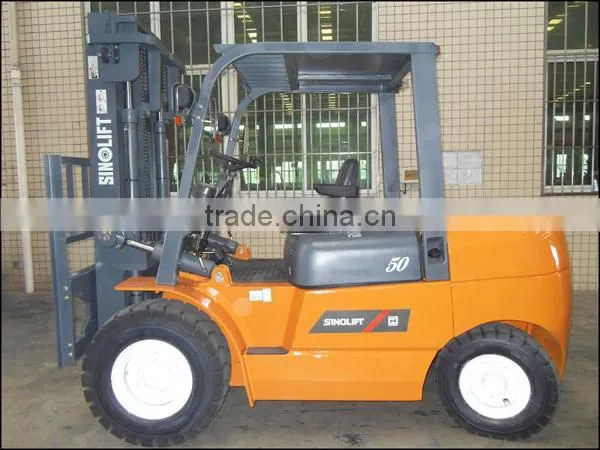

Sinolift 2015 New CPCD4-5T Heavy Duty Hydraulic Diesel Forklift
1)Features of CPCD4-5T diesel forklift
The key parts adopt Japanese technology and are manufactured at home,so the complete machine holds excellent capacity.
#The main parts are fairly general,which can reduce greatly the cost of spare parts when the customers choose the variety of our forklifts.
#The direct injection engine is allocated with advanced sorts of performance indexes,which is of low fuel consumption and is easy to start.
#The transmission system is made of hydrodynamic torque converter,turbine and impeller blade made by imported Japanese technology through stamping and braze welding.The turbine and the piece of impeller are welded by adopting the punch brazing and the crust is overall welded.Thus,it is efficient and credible in the work without leaking of oil.The hydraulic transmission box,gearshift valve and inching valve are of compact structure,which is in possession of features such as balance start,stepless speed regulation,and good performance of jiggle and acceleration.
#The frame,mast,overhead guard,and instrument stand are all made in matrix and are very reliable.
#Numeric meter is fixed for supervising the oil level,oil temperature;it has in-time warning function.with the sedan lights,it is very elegant.
#Ventilation and heat insulation unit is fixed between the hydraulic oil tank and muffler,resulting well control of the oil tempera-ture.
#High visibility mast,multi-stage mast,and many attachments like sideshifters can meet different requirement of different customers.
#Adopting vacuum brake,hydraulic gear-box,four-cylinder engine,it features easy operation,good #micro-move capacity,powerful,easy to maintain and low cost.
#The steering system applies full hydraulic pressure steering gear.The transverse oil tank and the steering axle with isolation properties combine together so that the steering is smart,the structure is compact and the repair is convenient.
#The pipeline is sealed with adoption of high quality 60o cone,which is convenient and credible.Hydraulic pressure multiplex-ing reversing valve is with fore-pitch automatic closedown device.
2)Specifications of CPCD4-5T diesel forklift
| General | Manufacture | SINOLIFT CPCD4-5T Diesel Forklift | |||||||||||
| Model | CPCD40-L | CPCD45-L | CPCD50-L | CPCD40-LF | CPCD45-LF | CPCD50-LF | |||||||
| Power type | Diesel | ||||||||||||
| Rated capacity | kg | 4000 | 4500 | 5000 | 4000 | 4500 | 5000 | ||||||
| Load center | mm | 500 | 500 | ||||||||||
| Dimensions | Lift height | mm | 3000 | 3000 | |||||||||
| Free lift height | mm | 150 | 150 | ||||||||||
| Fork size | mm | 1070×150×55 | 1070×150×55 | ||||||||||
| Fork spread outside | Min./Max. | mm | 300/1200 | 300/1200 | |||||||||
| Mast tilt angle | deg | 6°/12° | 6°/12° | ||||||||||
| Front overhang | mm | 562 | 562 | ||||||||||
| Overall dimensions | Length to face of fork | mm | 3091 | 3091 | 3125 | 3091 | 3091 | 3125 | |||||
| Length with fork | mm | 4182 | 4182 | 4216 | 4182 | 4182 | 4215 | ||||||
| Overall width | mm | 1485 | 1480 | ||||||||||
| Wheel width | mm | 1465 | 1465 | ||||||||||
| Mast lowered height | mm | 2380 | 2380 | ||||||||||
| Mast extended height | mm | 4250 | 4250 | ||||||||||
| Overhead guard height | mm | 2290 | 2290 | ||||||||||
| Turning radius | mm | 2790 | 2790 | 2790 | 2830 | ||||||||
| Min, right angle aisle width | mm | 3415 | 3415 | 3460 | 3415 | 3415 | 3460 | ||||||
| Performance | No load/full load | Travel speed | Forward Ⅰ | km/h | 15/14 | 15/14 | |||||||
| Forward Ⅱ | 22/20 | 22/20 | |||||||||||
| Backward Ⅰ | 15/14 | 15/14 | |||||||||||
| Lift speed | mm/sec | 480/450 | 480/450 | 480/430 | 480/450 | 480/450 | 480/430 | ||||||
| Max. gradeability | % | 20/19 | 18/17 | 17/16 | 20/19 | 18/17 | 17/16 | ||||||
| Max. drawbar pull | KN | 21 | 21 | ||||||||||
| Self weight | kg | 6450 | 6770 | 7050 | 6450 | 6770 | 7050 | ||||||
| Wheel & Tire | Tires | Front | 300-15-18PR | 300-15-18PR | |||||||||
| Rear | 7.00-12-12PR | 7.00-12-12PR | |||||||||||
| Tread | Front | mm | 1180 | 1180 | |||||||||
| Rear | mm | 1190 | 1190 | ||||||||||
| Wheelbase | mm | 2000 | 2000 | ||||||||||
| Min.ground clearance | Mast | mm | 175/145 | 175/145 | |||||||||
| (no load/full load) | Frame | 190/180 | 190/180 | ||||||||||
| Drive units & control | Battery | V/AH | 2-12V/80AH | 2-12V/80AH | |||||||||
| Engine | Model | A-6BG1QC-05 | R4105G25 | ||||||||||
| Rated output | kw/rpm | 68/2000 | 59/2300 | ||||||||||
| Rated torque | N.m/rpm | 340/1400~1600 | 280/1600~1800 | ||||||||||
| No.of cylinder | 6 | 4 | |||||||||||
| Bore×stroke | mm | 105×125 | 105×120 | ||||||||||
| Displacement | cc | 6494 | 4156 | ||||||||||
| Fuel tank capacity | L | 90 | 90 | ||||||||||
| Transmissions | Type | Hydraulic | Hydraulic | ||||||||||
| Shift | FWD/RWD | 2/1 | 2/1 | ||||||||||
| Operating pressure | Mpa | 17 | 17 | 18 | 17 | 17 | 18 | ||||||

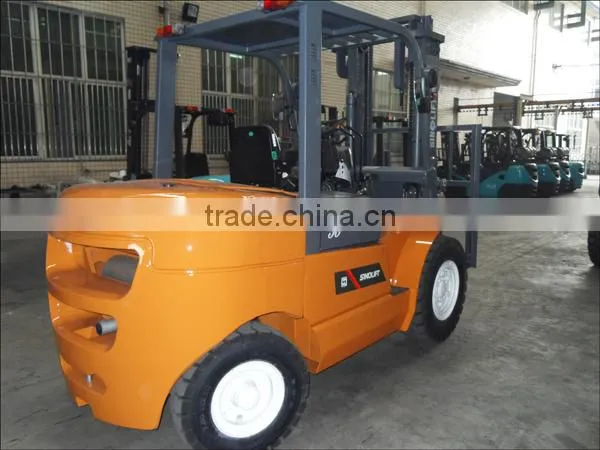

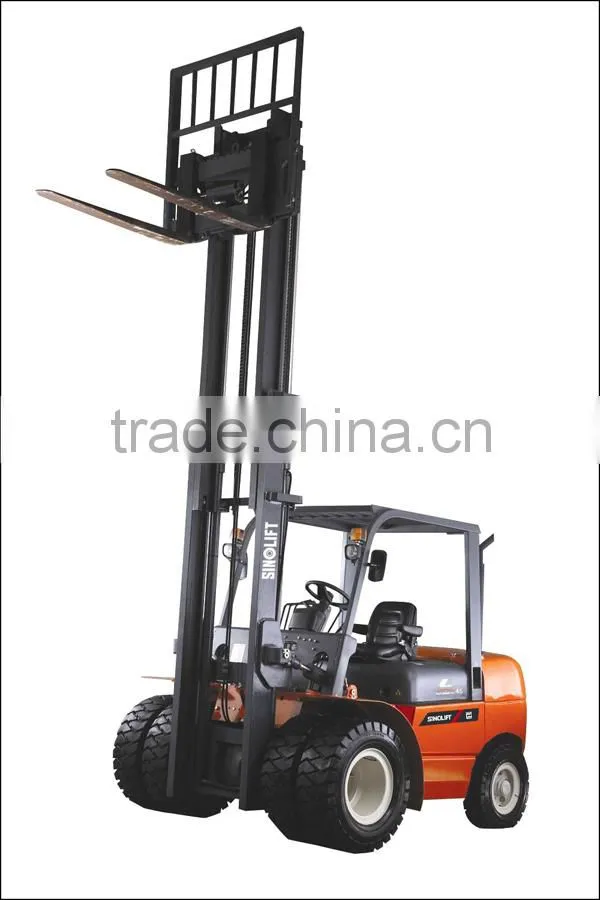

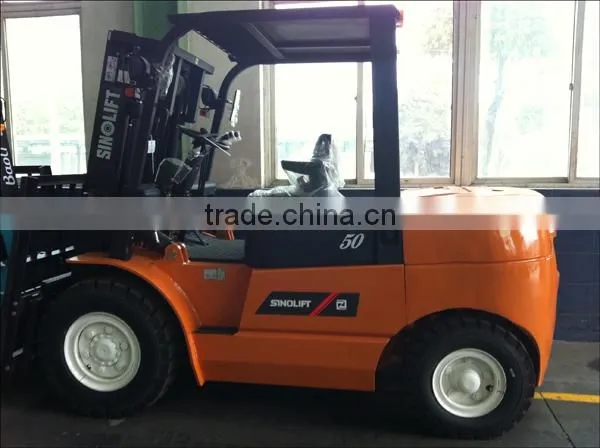

3)Details of CPCD4-5T diesel forklift

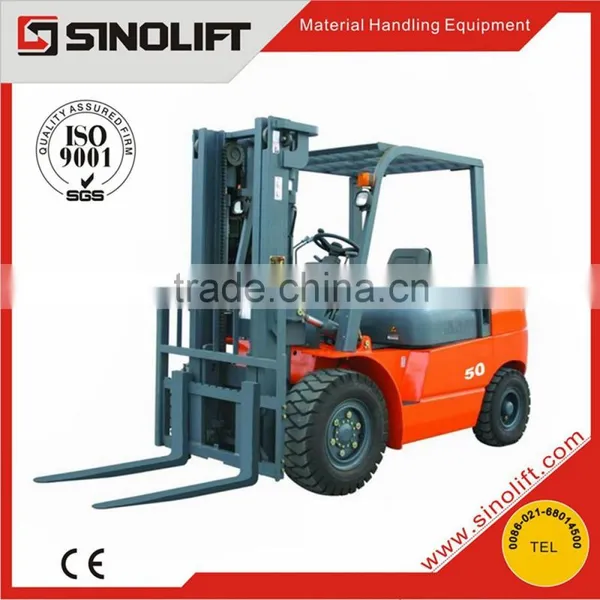

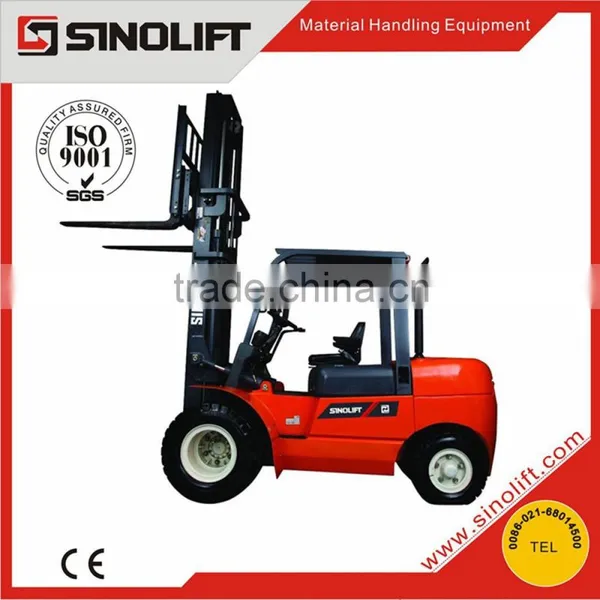

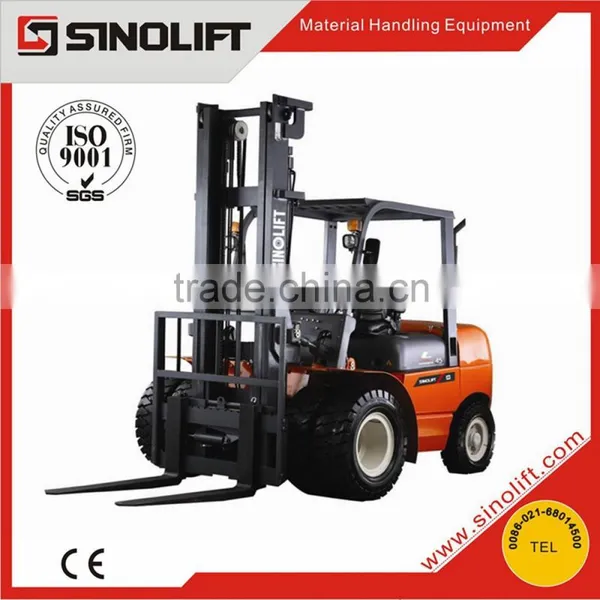

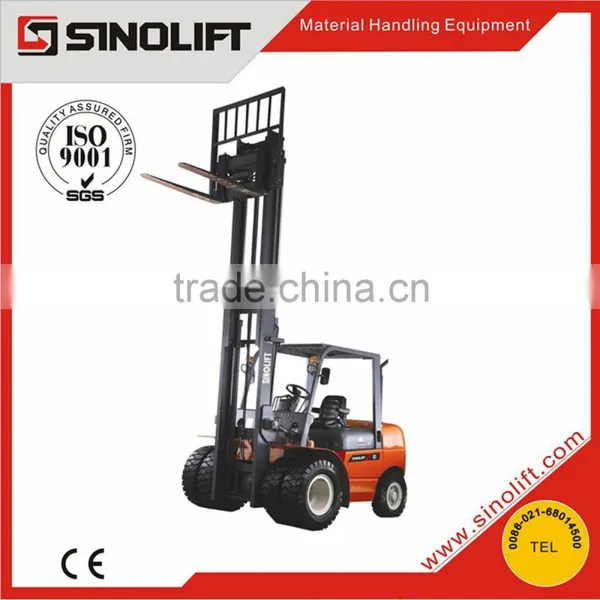

4)Forklift Family

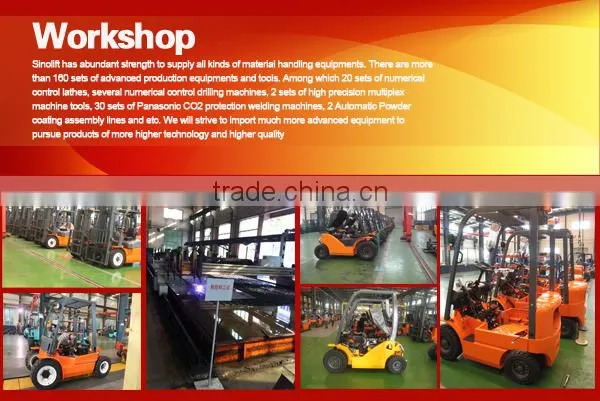

5)Workshop

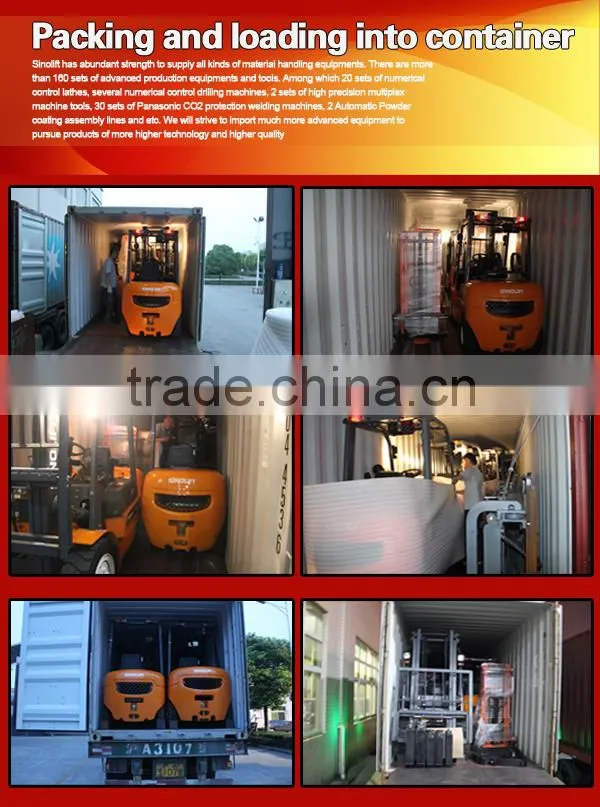

6)Packing and Loading into Container
7)Certificate
Shanghai Sinolift Equipment Co., Ltd is a production, design, manufacture, sales and service in one integrated production and trade enterprises. Main types of forklifts, material handling, storage and lifting products, also offer a variety of wire harnesses, TFT rule processing business, and produce a variety of OEM memory cards. Products are used in Germany and Japanese technology, all products passed "TUV", "CE", "GS" and "ISO9001" international quality system certification, the application of new technologies has unique.
8)Terms and Service
Lead time |
3-4 weeks |
Packing |
Standard export fumigated wooden pallet, foam rubbers |
Payment term |
T/T payment in advance; L/C at sight |
Lead term |
FOB Shanghai or CFR/CIF |
Warranty period |
12 months |
Shipping method |
by sea or air; by express |
9) Warranty Policy and Service Program
SINOLIFT give our customer warranty for each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us that we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items
10) Why choose us?
1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.
2- We are unique, which means you will have a unique partner with unique trucks in the market, in long term. We are not assembling, 95% core parts are produced by ourselves, for example EPS, Hydraulic units, driving units are all produced by Sinolift, the only one in China. And Sinolift is keeping on investing 30% of its margin on R&D. At present, Sinolift is the only producer who delivers EPS as standard on most models.
3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection. Sinolift Quality has been accepted by world market, 13 world famous brand names are cooperating with Sinolift.
4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.
5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.
6- Universal core parts and design between different models. Structure of Sinolift products and 80% core parts are universal between different models, which will reduce greatly service parts stock and make the job of service people much easier.
7- Most parts are available, no matter assembly or small components, because it’s produced by Sinolift itself. You don’t need to replace any assembly when its components are damaged, which will help to save 90% of the replacements parts cost sometimes.
8- Fast. Fast delivery time, Fast service and communication. Within one hour Sinolift will respond and within 3 hours we will offer the solution. Less than 15 days standard delivery time for electric products.
9- We don’t ask more though we do much better! We offer reasonable price level!
10- We're honest and straight forward at work because that's the way we are in our homes, we keeps loyal to our partners!
