2015 SINOLIFT L Series 2T 2.5T 3T 3.5T Internal Combustion Counterbalanced Diesel Forklifts
1) Features of 2T 2.5T 3T Counterbalanced Diesel Forklifts
- The machine body is designed with big arc streamline and fitted with open anti-slippage pedal.high position air suction inlet is fitted behind the top protection frame above the column to ensure the engine absorbs clean air and prolong the service life.The engine hood has functions of sound absorption and heat isolation.
- Rear in-built dual lifting cylinder is used,wide visual view,safety operation and high efficiency.
- A hydraulic converter produced by introduction of japanese technology,high efficiency,no oil leakage,reliable work,compact structure of hydraulic transmission,shift gear valve,micromotion valve,characterized by smooth starting,stepless speed adjustmet,micromotion and acceleration performance.
- Full hydraulic steering gear,transverse cylinder,steering axle integrated into one body,flexible steering,compact structure and convenient repair.
- Adjustable driver’s seat,reducingoperation fatigue to a maximum extent.Tilt lifting steering wheel and new type multifunc-tional panel fully represents harmony between the machine and human.
- Imported sealing parts are used in the cylinder,cone sealing used in fittings,good sealing performance,long service life;multiple reversing valve with automatic tilt locking device,advanced strudture to meet safety requirement.
- Big power and free-maintenarting battery with American technology,small volume,good performance,long storage period;general contactor arranged in the electric circuit,prolong life of the key switch,completely removing self-discharge.
- Beautiful appearance,quick and smooth lifting,high high productivity,it is an ideal loading and unloading machin for stations,ports,docks,warehouse,warehouse,airports and factories etc which need low noise and small smoke.
2) Specification Data of 2T 2.5T 3T Counterbalanced Diesel Forklifts
| Generals | Manufacture | SINOLIFT L Series 2.0T-3.5T Diesel Forklift Specifications | |||||||||
| Model | CPC(D)20-X2 | CPC(D)25-X2 | CPC(D)30-X2 | CPC(D)35-X2 | |||||||
| CPC(D)20-W1 | CPC(D)25-W1 | CPC(D)30-X3 | CPC(D)35-X3 | ||||||||
| CPC(D)20-W3 | CPC(D)25-W3 | CPC(D)30-X4 | CPC(D)35-X4 | ||||||||
| ***** | ***** | CPC(D)30-Y2 | CPC(D)35-Y2 | ||||||||
| ***** | ***** | CPC(D)30-W2 | CPC(D)35-W2 | ||||||||
| Power type | Diesel | Diesel | Diesel | Diesel | |||||||
| Rated capacity | kg | 2000 | 2500 | 3000 | 3500 | ||||||
| Load center | mm | 500 | 500 | 500 | 500 | ||||||
| Dimensions | Lift height | mm | 3000 | 3000 | 3000 | 3000 | |||||
| Free lift height E | mm | 140 | 140 | 145 | 145 | ||||||
| Fork size N×U×L | mm | 1070*120*40 | 1070*100*45 | 1070*125*45 | 1070*130*45 | ||||||
| Mast tilt angle α / β | deg | 6/12 | 6/12 | 6/12 | 6/12 | ||||||
| Front overhang A2 | mm | 482 | 482 | 501 | 501 | ||||||
| Overall dimensions | Length to face of fork A1 | mm | 2510 | 2580 | 2720 | 2720 | |||||
| Overall width B1 | mm | 1150 | 1150 | 1225 | 1225 | ||||||
| Mast lowered height H1 | mm | 1995 | 1995 | 2070 | 2070 | ||||||
| Mast extended height H3 | mm | 4037 | 4037 | 4272 | 4272 | ||||||
| Overhead guard height H2 | mm | 2060 | 2060 | 2090 | 2090 | ||||||
| Turning radius R | mm | 2170 | 2240 | 2460 | 2460 | ||||||
| Min. right angle aisle width X | mm | 1920 | 2010 | 2110 | 2190 | ||||||
| Performance | Travel speed (no load / full load) | Hydraulic | km/h | 17/19 | 17/19 | 17/19 | 17/19 | ||||
| Mechanical | Shift I | 8.5/9 | 8.5/9 | 8.8/9 | 8.8/9 | ||||||
| Shift II | 18.5/19 | 18.5/19 | 18.5/20 | 18.5/20 | |||||||
| Lift speed (full load) | mm/sec | 450 | 450 | 400 | 360 | ||||||
| Max. gradeability | % | 20 | 20 | 18 | 15 | ||||||
| Self weight | kg | 3550 | 3880 | 4380 | 4750 | ||||||
| Wheel & Tires | Tires | Front | 7.00-12-12PR | 7.00-12-12PR | 28*9-15-14PR | 28*9-15-14PR | |||||
| Rear | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | |||||||
| Tread | Front B2 | mm | 970 | 970 | 1000 | 1000 | |||||
| Rear B3 | mm | 970 | 970 | 970 | 970 | ||||||
| Wheelbase A3 | MM | 1600 | 1600 | 1700 | 1700 | ||||||
| Ground clearance (full load / no load) | Mast M | mm | 85/105 | 85/105 | 110/135 | 110/135 | |||||
| Frame F | 100/105 | 100/105 | 130/135 | 130/135 | |||||||
| Drive units | Engine Options | Engine Code Name | X2 | X3 | X4 | W1 | W2 | W3 | Y3 | ||
| Model | XINCHAI 490BPG | XINCHAI 495BPG | XINCHAI 498BPG | ISUZU C240PKJ | ISUZU 4JG2 | ISUZU HJ493 | Yanmar 4TNE98 | ||||
| Rated output | kw/rpm | 37/2650 | 42/2650 | 45/2500 | 34.5/2500 | 44.9/2450 | 39/2500 | 44.3/2300 | |||
| Rated torque | N.m/rpm | 148/1900 | 174/1800-2000 | 191/1600 | 139/1800 | 186.3/1600-1800 | 165/1800 | 206/1700 | |||
| No.of cylinder | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||||
| Bore × stroke | mm | 90*100 | 95*105 | 98*105 | 86*102 | 95.4*107 | 92*93 | 98x110 | |||
| Displacement | L | 2.54 | 2.98 | 3.168 | 2.369 | 3.059 | 2.771 | ||||

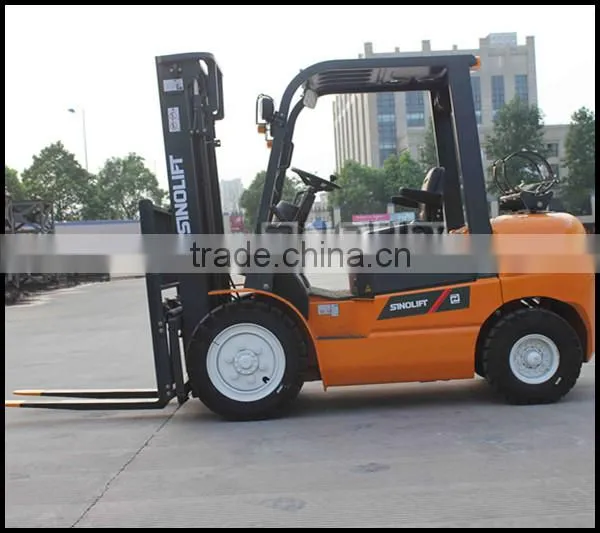

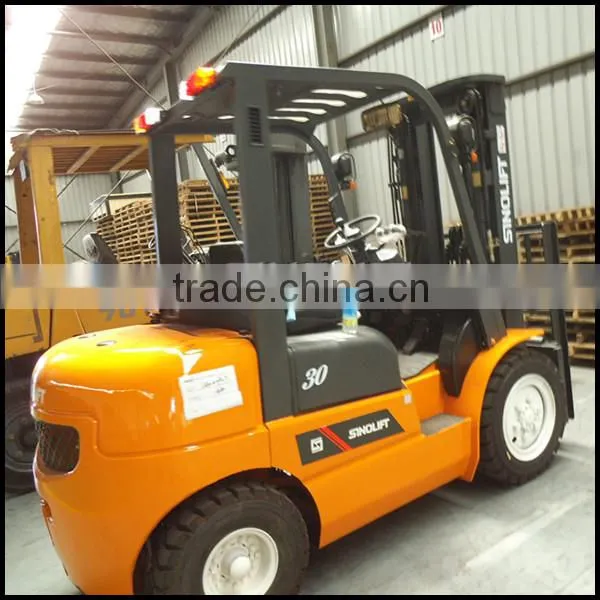

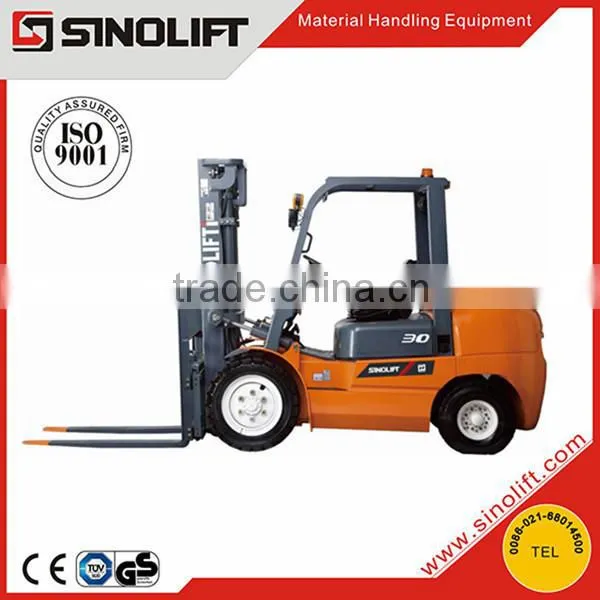

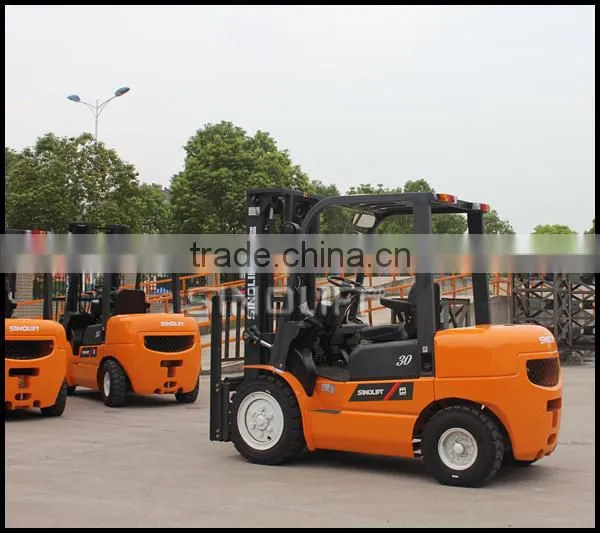

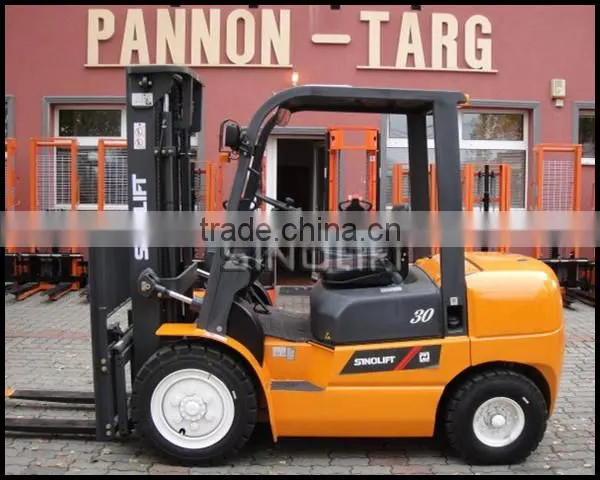

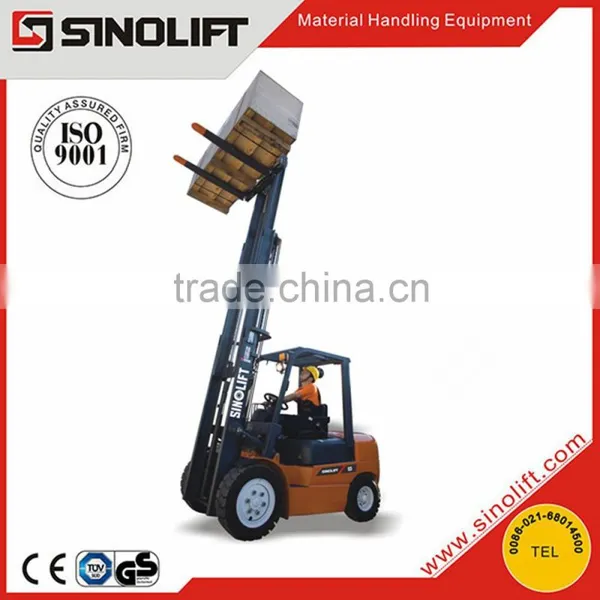

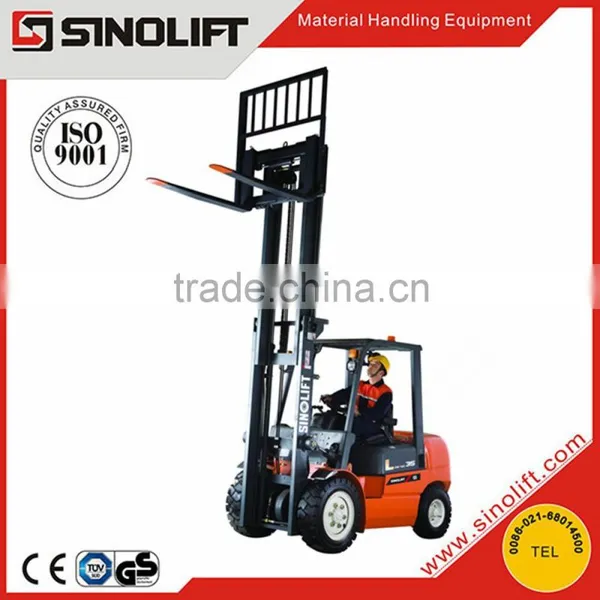

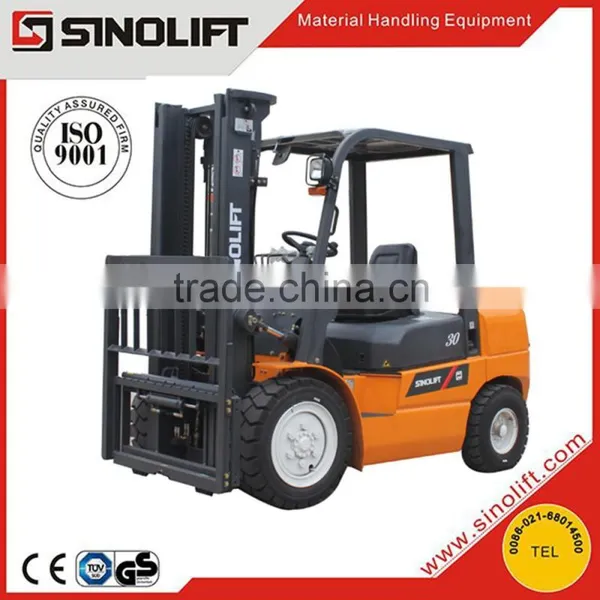

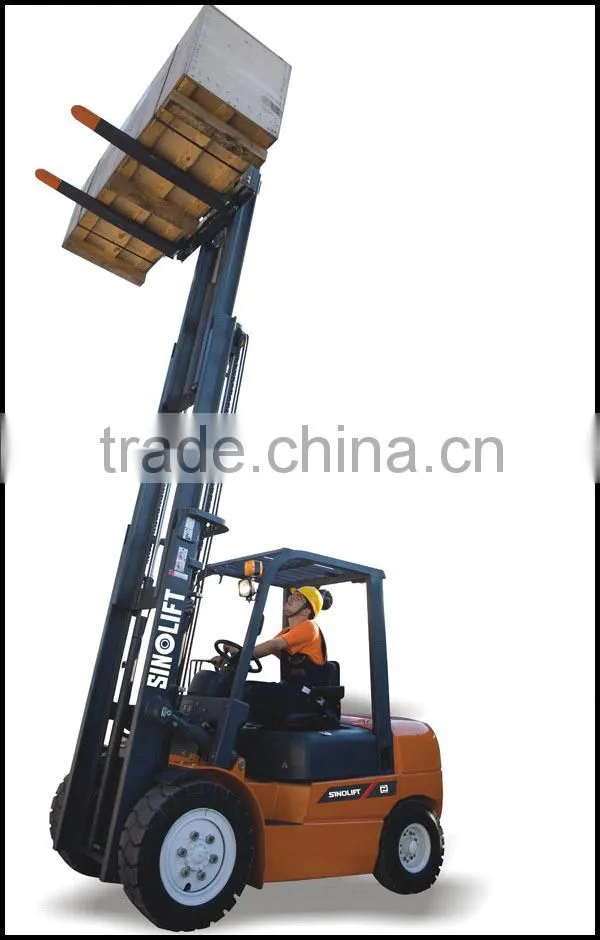

3) Photos of 2T 2.5T 3T Counterbalanced Diesel Forklifts
4) Forklift Family
5) Workshop
6) Parking and Loading into Container
7) Certificates
8) Terms and service
1.Lead time |
3-4 weeks |
2.Packing |
Standard export fumigated wooden pallet, foam rubbers |
3.Payment term |
T/T payment in advance; L/C at sight. |
4.Lead term |
FOB Shanghai or CFR/CIF |
5.Warranty period |
12 months |
6.Shipping method |
by sea or air; by express. |
9) Warranty Policy and service program
SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 24 months warranty on major components and 180 days on wearable items.
10) Why choose us?
1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.
2- We are unique. We are not assembling, 95% core parts are produced by ourselves. And Sinolift is keeping on investing 30% of its margin on R&D.
3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection.
4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.
5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.
6- Universal core parts and design between different models. Structure of Sinolift products and 80% core parts are universal between different models.
7- Most parts are available, no matter assembly or small components, because it’s produced by Sinolift itself. You don’t need to replace any assembly when its components are damaged.
8- Fast. Fast delivery time, Fast service and communication. Within one hour Sinolift will respond and within 3 hours we will offer the solution. Less than 15 days standard delivery time for electric products.
9- We don’t ask more though we do much better! We offer reasonable price level!
10- We're honest and straight forward at work because that's the way we are in our homes, we keeps loyal to our partners!
11) Contact Us
Mobile: 0086 15692169117
Skype:Sinolift-Penny
WhatsApp: 008615692169117
