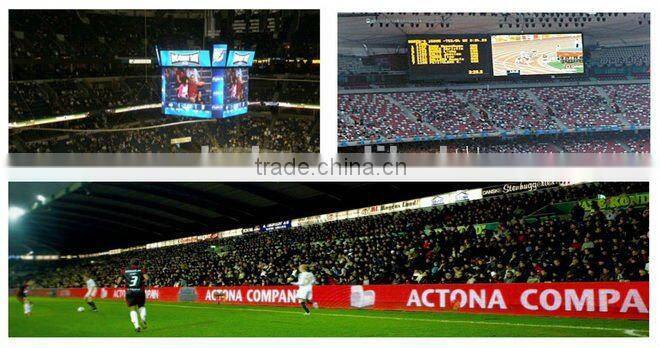

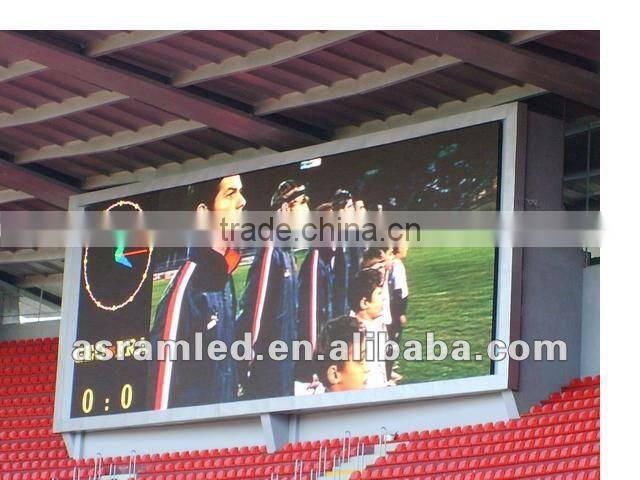

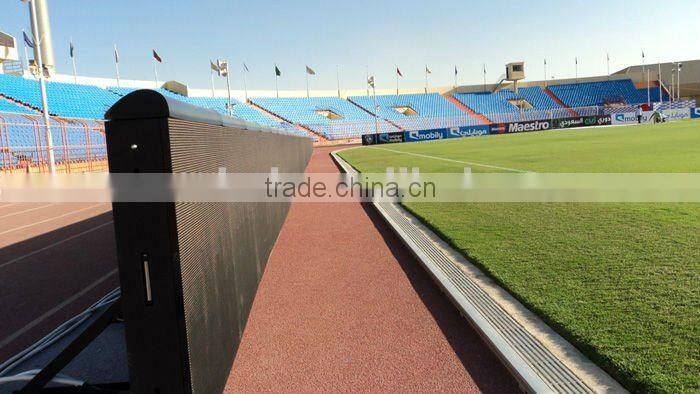

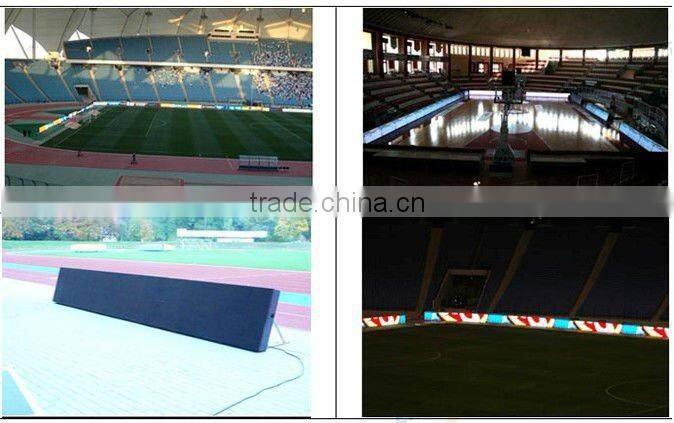

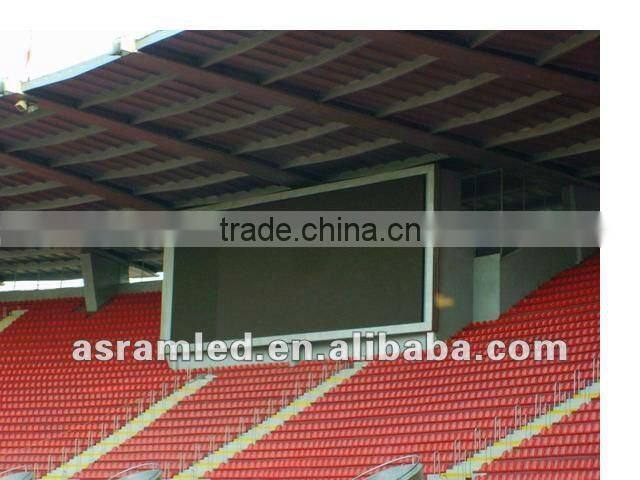

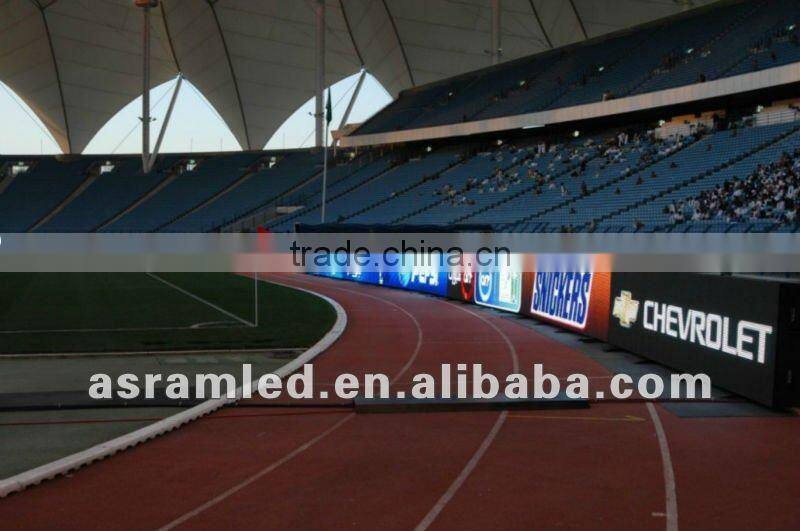

Sinoela P20 P10 Led Full Color CE RoHS Stadium Perimeter Led Display, Video Football Stadium Led Screen Display

Specifications

HD outdoor stadium football sport led display billboard sign
Good visual effect
Waterproof IP67
High brightness
AC110v-240v

Hot sale product:







Specification of Outdoor LED display
Classification	Ph10	Ph12	Ph14	Ph16	Ph18	Ph20	Ph22	Ph25	Ph31.25
Pixel pitch(mm)	10(physical)	12(physical)	14(physical)	16(physical)	18(physical)	20(physical)	22(physical)	25(physical)	31.25
		6(virtual)		8(virtual)		10(virtual)		12.5(virtual)
Pixel configuration	1R1G1B	2R1G1B	2R1G1B	2R1G1B	2R1G1B	2R1G1B	2R1G1B	2R1G1B	4R2G2B
LED package	DIP346	DIP346	DIP546	DIP546	DIP546	DIP546	DIP546	DIP546	DIP546
Pixel denstiy/ sqm	10000dots	6844dots	5102dots	3906dots	3086 dots	2500dots	2066dots	1600dots	1024dots
		27777 dots		15625 dots		10000dots		6400dots
Module size(mm*mm)	320*160(h)	192*192(h)	224*112(h)	256*128(h)	288*144(h)	320*160(h)	352*176(h)	200*200(h)	125*250(h)
Module pixel( dots)	32*16	16*16	16*8	16*8	16*8	16*8	16*8	8*8	4*8
Standard size of cabinet(mm*mm)	1280*960	1152*768	896*896	1024*768	1152*864	1280*960	1056*1056	1000*1000	1000*1000
Cabinet pixel( dots)	128*96	96*64	64*64	64*48	64*48	64*48	48*48	40*40	32*32
Best view angle	110°	110°	110°	110°	110°	110°	110°	110°	110°
Maximum power comsuption(W/sqm)	750	700	600	1000	950	900	700	600	600
Brightness cd/sqm	≥8 000	≥8000	≥8000	≥ 7500	≥ 6500	≥ 60 00	≥ 5500	≥5000	≥ 5500
Driving method	1/4 constant driving		1/2 contant driving	Constant static
Display color	256*256*256
Refresh frequency	300HZ
Frame frequency	60HZ
Protection Level	Front: IP 65; back: IP43
Working Voltage	AC220/110±10%
Working environment temperature	-40º degree - +50º degree
Life span	>100000hours











































Indoor SMD model:  PH4, PH5, PH6, PH7.62, PH8, PH10, PH12, PH16, PH20, PH25, PH31.25, PH40.....



Outdoor DIP model: PH10, PH12, PH14, PH16, PH20, PH22, PH25, PH31.25, PH40, PH50, PH70......



Outdoor SMD model: PH6, PH8, PH10, PH12, PH14, PH16, PH18, PH20, PH25, PH31.25.....





We can customize any size according to your request





OEM ODM service is acceptable





CE ROHS ISO certificate







Which models would you like please?
