Sinoela P10 Dual/single Color Wirelss Control Waterproof Double Side Led Board, Double Color Led Display

Specifications

Indoor video RGB led ad display sign

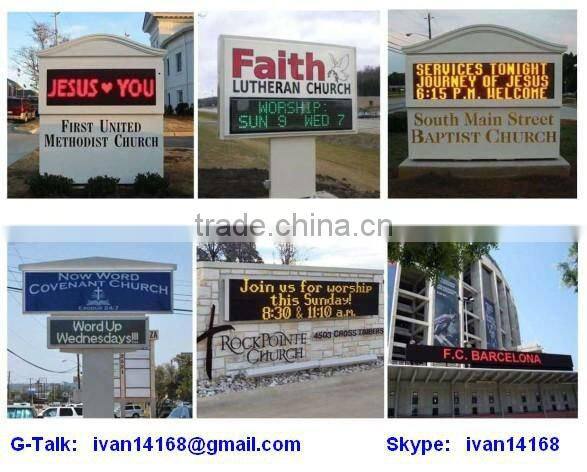

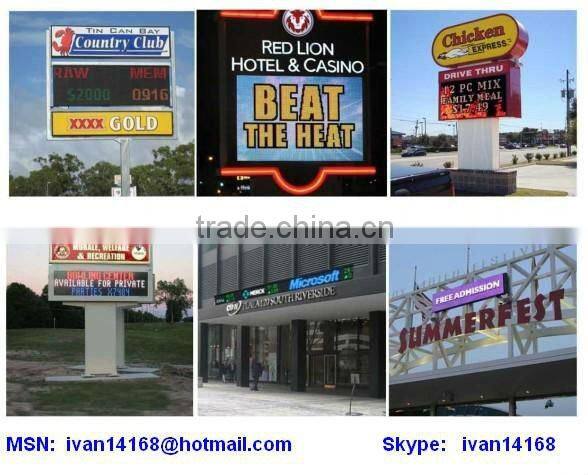

Two dual-sided, double-faced
High resolution Brightness
Good visual effect
Low price

 Hot sale product:





Item No	P5	P6	P7.62
Classification	Full color	Full color	Full color
Pixel pitch	5mm	6mm	7.62mm
Size of module (mm)	160*80	192*96	244*122
Pixel density	40000 dots/m2	27778 dots/m2	17222 dots/m2
Pixel composition	1R1G1B	1R1G1B	1R1G1B
LED encapsulation	SMD3528/5050	SMD3528/5050	SMD3528/5050
Resolution of module	32*16	32*16	32*16
Power consumption	25W	25W	25W
Best viewing distance	2m	4m	6m
Best viewing angle (H)	120°	120°	120°
Max power consumption	1700 W/m2	1400 W/m2	1000 W/m2
Size of standard cabinet(mm)	640*480	768*576	976*732
Resolution of standard cabinet	128*96	128*96	128*96
Weight of standard cabinet	21kg	30kg	32kg
Driving IC (5026 optional)	MBI5024GF	MBI5024GF	MBI5024GF
Driving method	1/8 constant	1/8 constant	1/8 constant
Frame frequency	more than60Hz/s	more than60Hz/s	more than60Hz/s
Refresh rate	more than360Hz/s	more than360Hz/s	more than360Hz/s
White balance brightness	more than3000cd/m2	more than2500cd/m2	more than2000cd/m2
Work environment temperature	—20°C—50°C lower temperature is optional
Working voltage	220±10% or 110±10%
Grey scale	Display colors more than 250M ( synchronized)
Brightness adjustment	256 levels of each color (RGB) can be adjusted manually, and 8 levels of each color can be adjusted automatically
Signal input	RF,S-video, etc
Control system	PCTV non-linear editing card+ DVI display card+ main controller card+ optical fibre transmission ( optional)
MTBF	more than 5000 hours
Life span	more than100000 hours
Malfunction dot rate	less than0.0001
Transmission distance	LAN cable less than100m; optic fiber transmission: MMF less than 500m, SMF less than 20km
Refresh rate can be higher by using more receivers: other parameter can be changed according to different application.



































Indoor SMD model:  PH4, PH5, PH6, PH7.62, PH8, PH10, PH12, PH16, PH20, PH25, PH31.25, PH40.....



Outdoor DIP model: PH10, PH12, PH14, PH16, PH20, PH22, PH25, PH31.25, PH40, PH50, PH70......



Outdoor SMD model: PH6, PH8, PH10, PH12, PH14, PH16, PH18, PH20, PH25, PH31.25.....

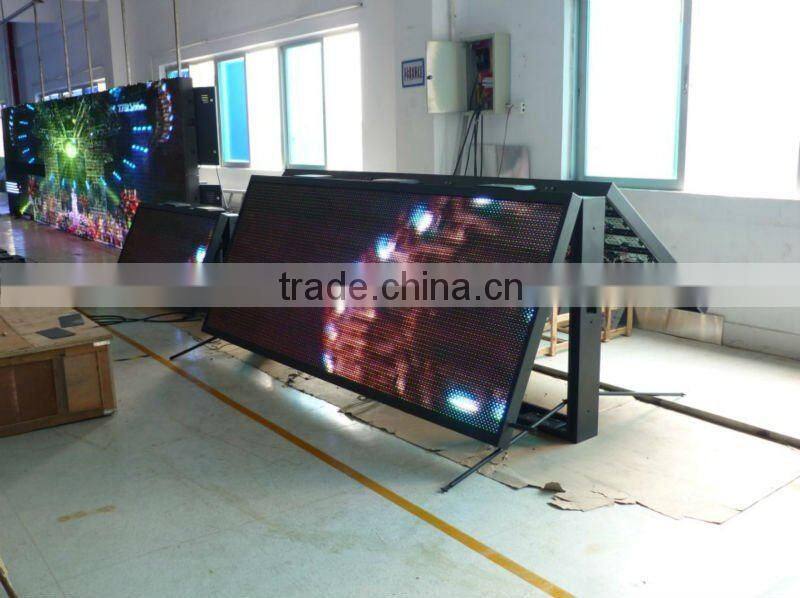

Double faced(Two-sided): Single color, Dual color, Tri-color, Full color





We can customize any size according to your request.







OEM ODM service is acceptable



CE ROHS ISO certificate
