The wedge wire screen welding machine is intended for manufacturing of wedged wire screens in length up to max. 4000/6000mm. The strength, precision and design flexibility that characterize our screens makes them the choice in a broad range of industries and applications. It made up of CNC mainframe, welding transformer, control cabinet and so on.

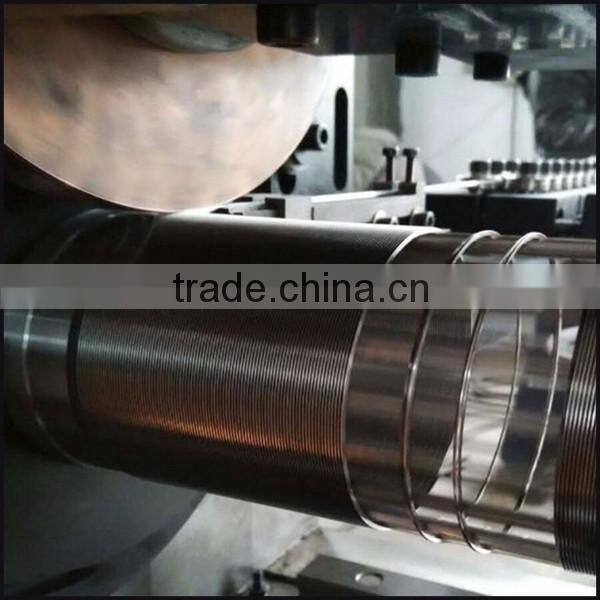

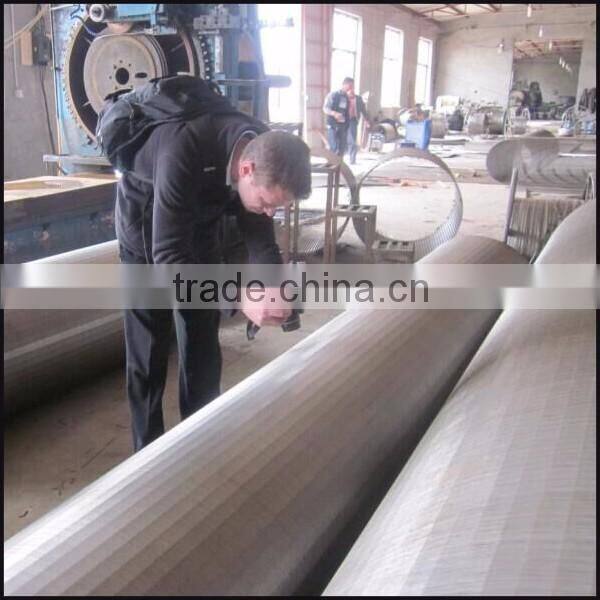

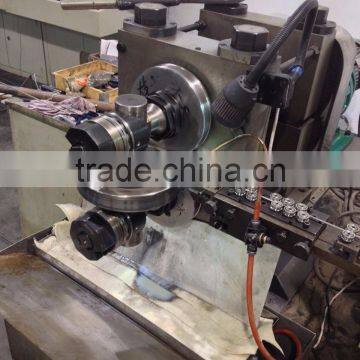

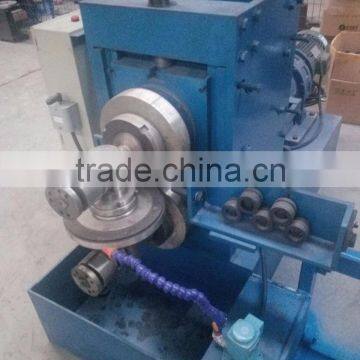

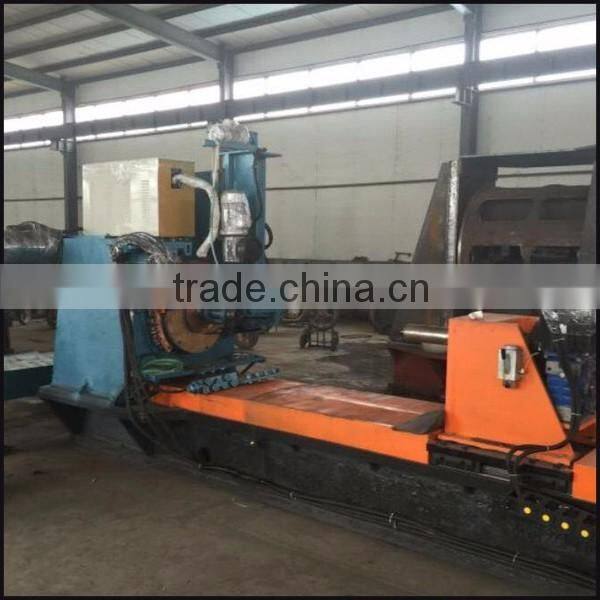

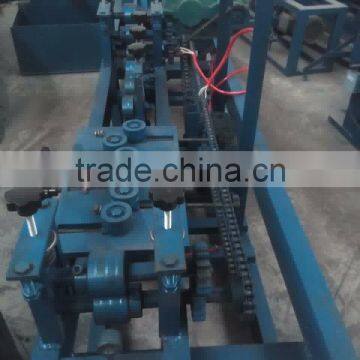

Images of automatic wedge wire wrap welding machine
Spec of Wedge Wire Screen Welding Machine
Model | φ50-200mm | φ100-400mm | φ400-1200mm |
Power | 3Phase 380V 50Hz | 3Phase 380V 50Hz | 3Phase 380V 50Hz |
Rated Capacity | 100 KVA | 100 KVA | 100 KVA |
Slot Distance | ≥0.1mm | ≥0.2mm | ≥0.25mm |
Canister Length | ≤6000mm | ≤6000mm | ≤4000mm |
Weld Material | Stainless Steel Wire & Low Carbon Steel Wire | ||
V-wire Size | 1.8-5.0mm | 1.8-5.0mm | 1.8-5.0mm |
Support Rod Size | 1.8-5.0mm | 1.8-5.0mm | 1.8-5.0mm |
Overall Dimension | 13000*1500*3300mm | 13000*1600*3400mm | 11000*2100*3800mm |
Weight | 10000KGS | 11000KGS | 13000KGS |
Get more datas, please contact our staff directly. see the below name card
Contact Lynn to get more professional info & help
