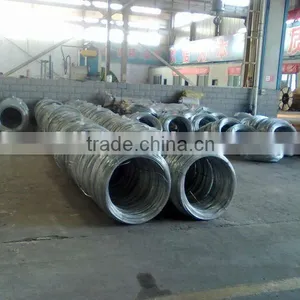

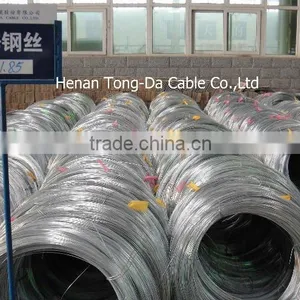

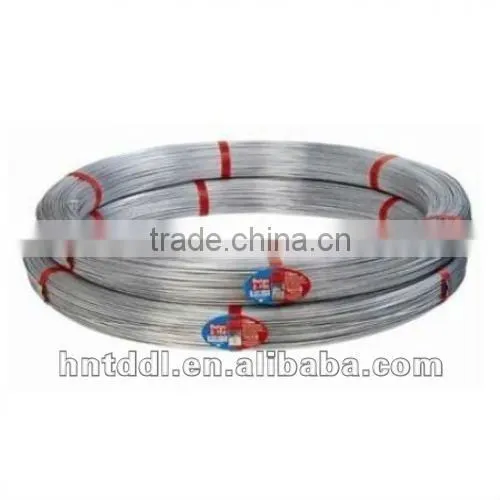

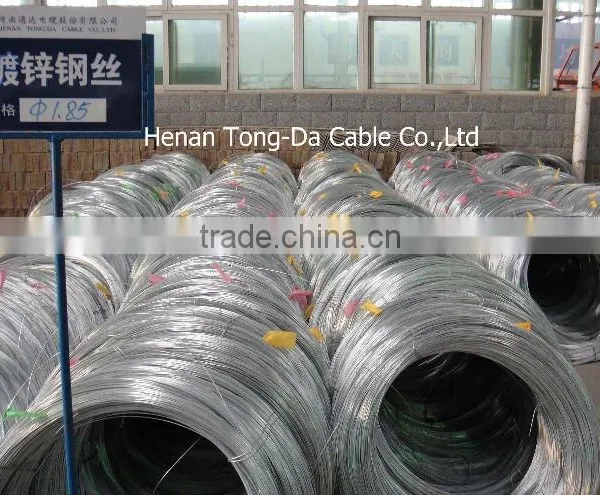

Help CenterGalvanized Steel Wire/strand
Related Products
Applications
1. The galvanized steel wire strand is used for overhead ground lines or electrical power transmission lines.
2.Stay or guy wire strands are produced for use with poles, towers, or any other form of guying. They can be used for telephones , power and CATV sets.
Construction

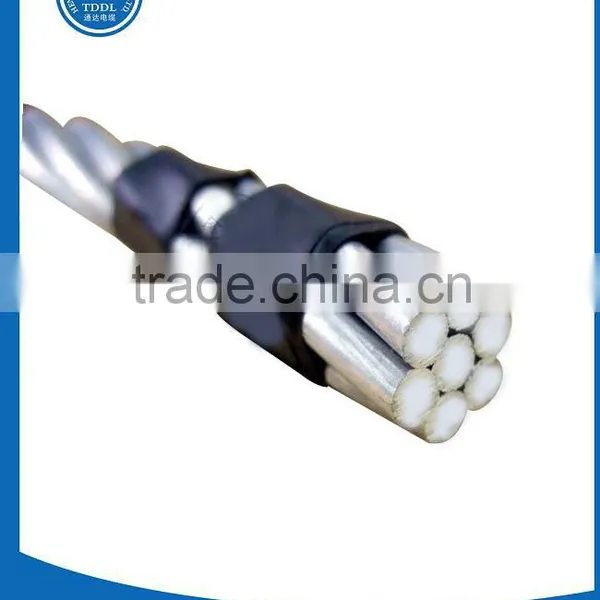

Concentrically stranded galvanized steel strand. Available in classes "A", "B" and "C" galvanizing, "A" being the least heavy and "C" being the most heavy. Available in five grades of strength: common, Siemens-Martin, high-strength, utilities, and extra-high-strength. Manufactured without welds per ASTM A-363 or with welds per ASTM A-475. Strands are formed to remain substantially in place when severed.
Standards
ASTM B498, BS443, GB/T 3428, DIN 48200, JIS C3110, etc
| Part of GALVANIZED STEEL WIRE STAND ASTM-A475 | ||||||
| Number of Wires/Dia. |
Approx. Strand Dia. |
Siemem Martin Grade |
High Strength Grade |
Extra-high Strength Grade |
Approx. Weight |
|
| Inch | mm | KN | KN | KN | kg/km | |
| 3/2.64 | 7/32 | 5.56 | 10.409 | 15.569 | 21.796 | 131 |
| 3/3.05 | 1/4 | 6.35 | 13.523 | 21.04 | 29.981 | 174 |
| 3/3.05 | 1/4 | 6.35 | - | - | - | 174 |
| 3/3.30 | 9/32 | 7.14 | 15.035 | 23.398 | 33.362 | 204 |
| 3/3.68 | 5/16 | 7.94 | 18.193 | 28.246 | 40.479 | 256 |
| 3/4.19 | 3/8 | 9.52 | 24.732 | 37.187 | 52.489 | 328 |
| 7/1.04 | 1/8 | 3.18 | 4.048 | 5.916 | 8.18 | 49 |
| 7/1.32 | 5/32 | 3.97 | 6.539 | 9.519 | 13.078 | 76 |
| 7/1.57 | 3/16 | 4.76 | 8.452 | 12.677 | 17.748 | 108 |
| 7/1.65 | 3/16 | 4.76 | - | - | - | 118 |
| 7/1.83 | 3/16 | 5.56 | 11.387 | 17.126 | 24.02 | 145 |
| 7/2.03 | 7/32 | 6.35 | 14.012 | 21.129 | 29.581 | 181 |
| 7/2.36 | 1/4 | 7.14 | 18.905 | 28.469 | 39.812 | 243 |
| 7/2.64 | 9/32 | 7.94 | 23.798 | 35.586 | 49.82 | 305 |
| 7/2.77 | 5/16 | 7.94 | - | - | - | 335 |
| 7/3.05 | 3/8 | 9.52 | 30.915 | 48.04 | 68.503 | 407 |
| 7/3.68 | 7/16 | 11.11 | 41.591 | 64.499 | 92.523 | 594 |
| 7/4.19 | 1/2 | 12.7 | 53.823 | 83.627 | 119.657 | 768 |
