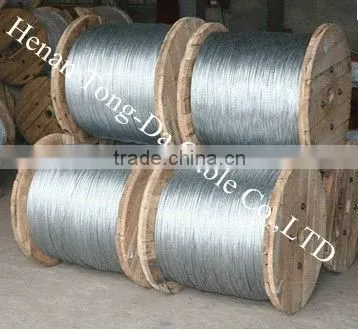

GSW---Galvanized Steel Wire stranded

Specifications

GSW as overhead ground wire or static wire on transmission lines, as pole or structure guy wires.

Quick Deatails

Steel Grade: steel                           Standard: ASTM , BS, DIN, JIS, GB       Wire Gauge:1.0-6.0mm

Place of Origin: Henan China (Mainland)    Type: Galvanized              Application: Power cable ACSR

Alloy or Not: Non-allloy                     Special Use: Cold Heading Steel         Model Number:1.0-6.0mm







Specification:

    1. Normal tensile, high tensile and Extra-high tensile

    2. Used for ACSR

    3. Packing: spoom and coil





Application:

    The product galvanized steel wire (GSW) is used for the cord of ACSR(Aluminum Conductor Steel Reinforced) conductor.





Diameter	Tensile Strength	Weight of Zinc
mm	mPa	g/m²
1.24-2.25	1340-1620	185-215
2.25-3.00	1310-1590	230
3.00-3.50	1290-1550	245
3.50-4.25	1290-1520	260
4.25-4.75	1290-1520	275
4.75-5.50	1290-1520	290
