Triplex Service Drop-ACSR Conductor ABC Cable

Name: Triplex Service Drop-ACSR Conductor ABC Cable
Brand: HNTDDL
SKU: 132282809
Availability: InStock

Triplex Service Drop-ACSR Conductor ABC Cable thumbnail-1

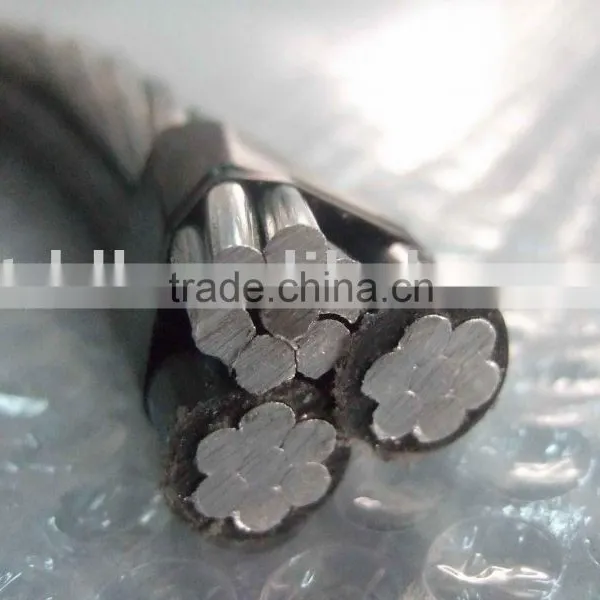

Triplex Service Drop-ACSR Conductor ABC Cable photo-1

Negotiable MOQ: 1 Kilometer (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

HNTDDL

Insulation Material:

XLPE

Contact Supplier Request Quote Chat Now

Henan Tong-Da Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name HNTDDL

Insulation Material XLPE

Type Low Voltage

Application Overhead

Conductor Material Aluminum

Specifications

To supply power from the utilitys lines to the consumers weatherhead.For service at 600 volts or less(phase to phase).

1. Applications

To supply power from the utilitys lines to the consumers weatherhead.For service at 600 volts or less(phase to phase) at a conductor temperature of 75^oC maximum for polyethylene insulation or 90^oC maximum for crosslinked insulation.

2. Construction

Concentric strand or compressed 1350-H19 conductor,polyethylene or crosslinked polyethylene insulation,concentric strand AAC,ACSR or 6201 alloy neutral messenger.

3. Standards

ASTM B-230,B-231,B-232 and B-339

ICEA S-76-474

4. The Diagram of Structure:

Code Name	Phase Conductor			Bare Neutral Messenger			Weight Per 1000ft (lbs)		Ampacity(amps)
Code Name	Size AWG	Stranding	Insulation Thickness(mls)	Size AWG	Stranding	Breaking Strength(lbs)	XLPE	Poly	XLPE	Poly
6201 ALLOY NEUTRAL-MESSENGER
Minex	6	Solid	45	6	7	1,110	106.6	102.9	85	70
Hippa	6	7	45	6	7	1,110	113.2	105.7	85	70
Prawn	4	Solid	45	4	7	1,760	158.4	154.1	115	90
Barnacles	4	7	45	4	7	1,760	168.3	158.2	115	90
Shrimp	2	7	45	2	7	2,800	253.7	239.7	150	120
Gammarus	1/0	7	60	1/0	7	4,460	411.7	386.0	205	160
Leda	1/0	19	60	1/0	7	4,460	402.7	386.0	205	160
Dungenese	2/0	7	60	2/0	7	5,390	506.8	476.3	235	185
Cyclops	2/0	19	60	2/0	7	5,390	495.3	476.3	235	185
Dlustra	3/0	19	60	3/0	7	6,790	611.4	589.1	275	215
Lepas	4/0	19	60	4/0	7	8,560	757.1	730.5	315	245
6201 ALLOY REDUCED NEUTRAL-MESSENGER
Artemia	4	Solid	45	6	7	1,110	141.4	137.1	115	90
Crab	4	7	45	6	7	1,110	151.3	141.2	115	90
Solaster	2	7	45	4	7	1,760	226.6	212.6	150	120
Sandcrab	1/0	7	60	2	7	2,800	368.8	343.1	205	160
Echinus	1/0	19	60	2	7	2,800	358.8	343.1	205	160
Crayfish	2/0	7	60	1	7	3,530	452.6	422.5	235	185
Sipho	2/0	19	60	1	7	3,530	441.0	422.5	235	185
Fulgar	3/0	19	60	1/0	7	4,460	543.4	521.1	275	215
Arca	4/0	19	60	2/0	7	5,390	671.2	644.6	315	245
