ABC Conductor

Specifications

Used to supply 3-phase power,usually from a pole-mounted transformer,to the user's service head where connection to the service

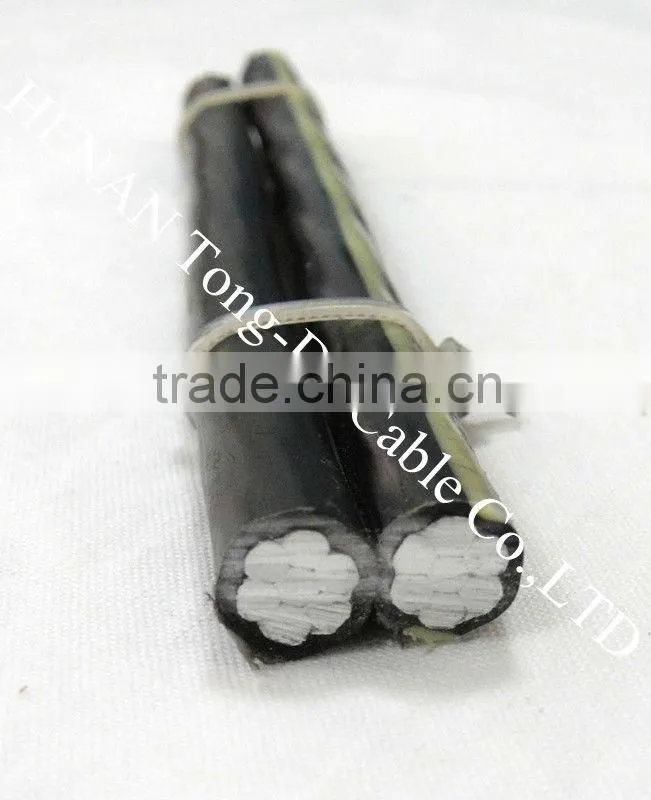

Duplex Service Drop
1Application
Primarily used for 120volt overhead service application such as street lighting,outdoor lighting,and temporary service for construction.To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75 for polyethylene insulated conductors or 90 for crosslinked polyethylene(XLP) insulated conductors.
2Construction



Code*Word	Phase conductor			Bare Neutral Message			Nominal lay Length	Weight Per 1000 ft.(lbs.)		Allo wable Amp acitles
	Size (A WG)	Stranding	Insul Thick(Mils)	Size (AWG)	Stranding	Rated Strength (lbs.)	inches	XLP	POLY	XLP	POLY
AAC Neutral-messenger
Pekingese	6	1	45	6	7	563	10.36	61	61	85	70
Collie	6	7	45	6	7	563	10.36	64	64	85	70
Dachshund	4	1	45	4	7	881	10.36	92	92	115	90
Spaniel	4	7	45	4	7	881	10.36	96	96	115	90
Doberman	2	7	45	2	7	1350	14.88	147	147	150	120
Malemute	1/0	9	60	1/0	7	1990	14.88	234	234	205	160

*Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Chihuahua/XLP)
+Conductor temperature of 90 for XLP,75 for Poly;ambient temperature of 40;emissivity 0.2;2ft./sec.Wind in sun.





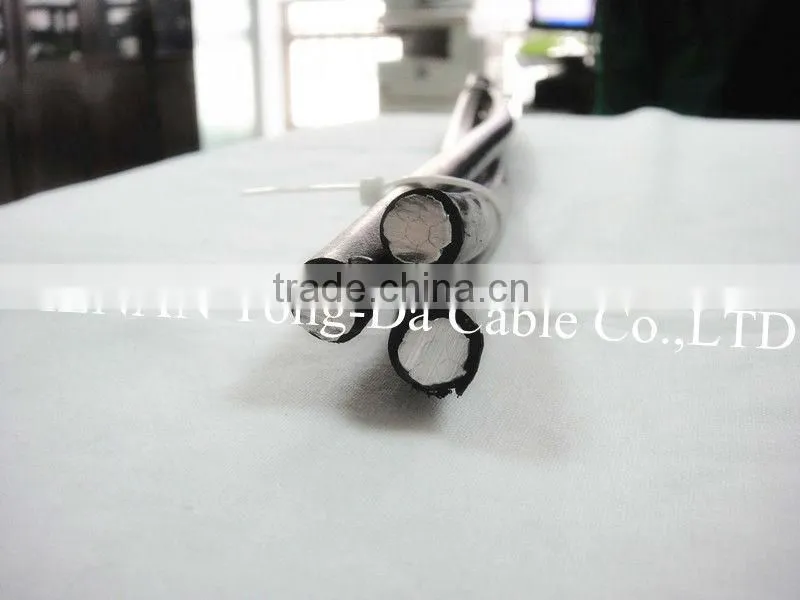

Triplex Service Drop
1Application
Used to supply power,usually from a pole-mounted transformer,to the user's service head where connection to the service entrance cable is made.To be used at voltage of 600 volts phase-to-phase or less and at conductor temperature not to exceed 75 for polyethylene insulated conductors or 90 for crosslinked polyethylene(XLP) insulated conductors.
2Construction

Code*Word	Phase conductor			Bare Neutral Message			Nominal lay Length	Weight Per 1000 ft.(lbs.)		Allo wable Amp acitles
	Size (A WG)	Stranding	Insul Thick(Mils)	Size (AWG)	Stranding	Rated Strength (lbs.)	inches	XLP	POLY	XLP	POLY
AAC Neutral-messenger
Pateela	6	7	45	6	7	563	14.88	103	103	85	70
Oyster	4	7	45	4	7	881	14.88	154	154	115	90
Clam	2	7	45	2	7	1350	20.58	233	233	150	120
Murex	1/0	7	60	1/0	7	1990	20.58	374	374	205	160
Purpura	1/0	9	60	1/0	7	1990	20.58	368	368	205	160
Nassa	2/0	7	60	2/0	7	2510	25.42	462	462	235	185
Melita	3/0	17	60	3/0	19	3310	29.97	562	562	275	215
Portunus	4/0	18	60	4/0	19	4020	29.97	696	696	315	245
Nannynose	336.4	19	60	336.4	19	6146	38.79	1118	1118	420	325
*Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Chihuahua/XLP) +Conductor temperature of 90 for XLP,75 for Poly;ambient temperature of 40;emissivity 0.2;2ft./sec.Wind in sun.

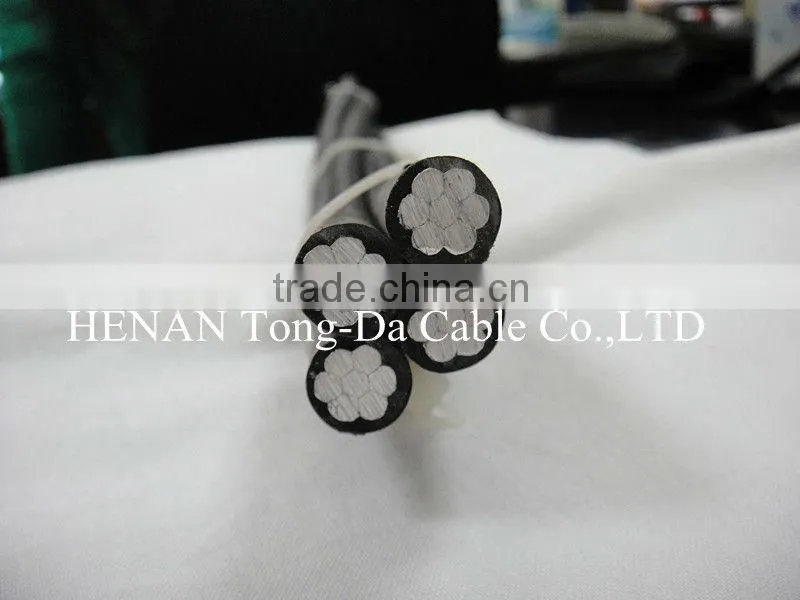

Quadruplex Service Drop
1Application
Used to supply 3-phase power,usually from a pole-mounted transformer,to the user's service head where connection to the service entrance cable is made.To be used at voltage of 600 volts phase-to-phase or less and at conductor temperature not to exceed 75 for polyethylene insulated conductors or 90 for crosslinked polyethylene(XLP) insulated conductors.
2Construction

Code*Word	Phase conductor			Bare Neutral Message			Nominal lay Length	Weight Per 1000 ft.(lbs.)		Allo wable Amp acitles
	Size (A WG)	Stranding	Insul Thick(Mils)	Size (AWG)	Stranding	Rated Strength (lbs.)	inches	XLP	POLY	XLP	POLY
AAC Neutral-messenger
Clydessdale	4	1	45	4	7	881	20.58	198	198	100	80
Pinto	4	7	45	4	7	881	20.58	211	211	100	80
Mustang	2	7	45	2	7	1350	25.42	318	318	135	105
Criollo	1/0	9	60	1/0	7	1990	25.42	503	503	180	140
Percheron	2/0	11	60	2/0	7	2510	29.97	619	619	205	160
Hanovarian	3/0	17	60	3/0	19	3310	35.18	764	764	235	185
Oldenburg	4/0	18	60	4/0	19	4020	35.18	945	945	275	210
Lippizaner	336.4	19	80	336.4	19	6146	38.79	1519	1519	370	280
*Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Chihuahua/XLP) +Conductor temperature of 90 for XLP,75 for Poly;ambient temperature of 40;emissivity 0.2;2ft./sec.Wind in sun.
