AAAC Conductor IEC 61089, BS EN 50183, ASTM B 399, BS 3242, DIN 48201, Etc.

FOB Price

US$ 100 - 1,000 / Kilometer

10 Kilometers(Min. Order)

Port QINGDAO NINGBO
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	HNTDDL
Model Number	16-1120mm2	Type	Bare
Application	Overhead	Conductor Material	Aluminum
Conductor Type	Stranded

Product Description

Specifications

ASTM B 399, BS 3242, BS EN 50183, IEC 61089, DIN 48201, etc.

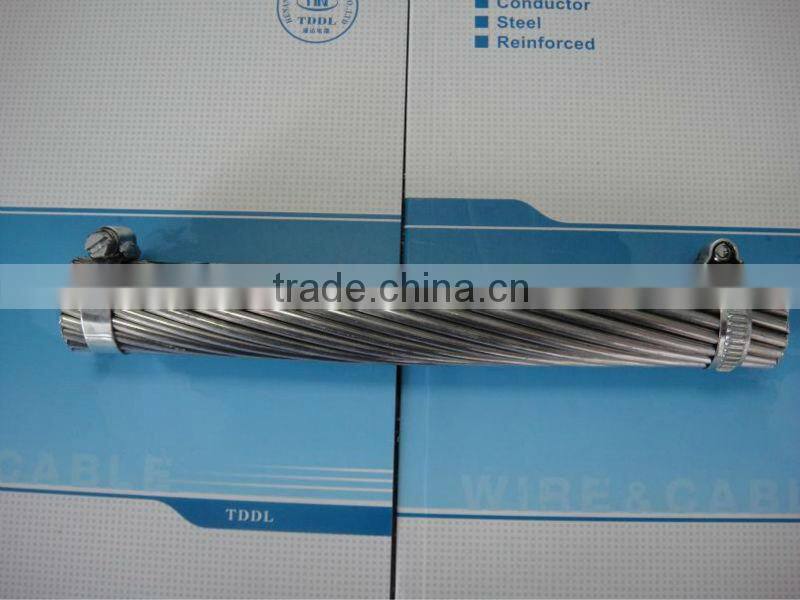

AAAC

Details of the products

The all aluminium conductor is a kind of aluminum product made through stranding aluminum 1350 wires.

It is used for the electricity transmission and distribution lines with short span length and small load-carrying capacity of the pole. The AAC provides reliable performance for overhead power transmission and

distribution lines.This strand covers hard drawn circular aluminum wires for electric purposes to be used as

component of hard drawn aluminum stranded cables and aluminum conductor steel reinforced.

Applications

The AAC conductor is used for the electricity transmission and distribution lines with short span length and small load-carrying capacity of the pole. The AAC provides reliable performance for overhead power transmission and distribution lines

Characteristics of AAAC Conductors IEC 61089

Code number	Area	No. of wires	Diameter		Linear mass	D.C. Resistance at 20°C
Code number	Area	No. of wires	Wire	Cond	Linear mass	D.C. Resistance at 20°C
	mm²		mm	mm	kg/km	ohm/km
16	18.4	7	1.83	5.49	50.4	1.7896
25	28.8	7	2.29	6.86	78.7	1.1453
40	46.0	7	2.89	8.68	125.9	0.7158
63	72.5	7	3.63	10.9	198.3	0.4545
100	115	19	2.70	13.9	316.3	0.2877
125	144	19	3.10	15.5	395.4	0.2302
160	184	19	3.51	17.6	506.1	0.1798
200	230	19	3.93	19.6	632.7	0.1439
250	288	19	4.39	22.0	790.8	0.1151
315	363	37	3.53	24.7	998.9	0.0916
400	460	37	3.98	27.9	1268.4	0.0721
450	518	37	4.22	29.6	1426.9	0.0641
500	575	37	4.45	31.2	1585.5	0.0577
560	645	61	3.67	33.0	1778.4	0.0516
630	725	61	3.89	35.0	2000.7	0.0458
710	817	61	4.13	37.2	2254.8	0.0407
800	921	61	4.38	39.5	2540.6	0.0361
900	1036	91	3.81	41.8	2861.1	0.0321
1000	1151	91	4.01	44.1	3179.0	0.0289
1120	1289	91	4.25	46.7	3560.5	0.0258
1250	1439	91	4.49	49.4	3973.7	0.0231
