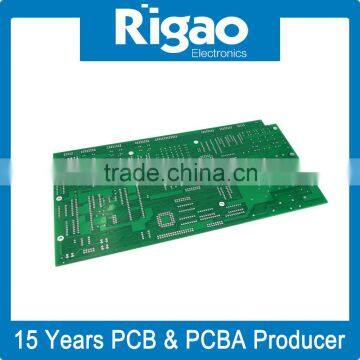

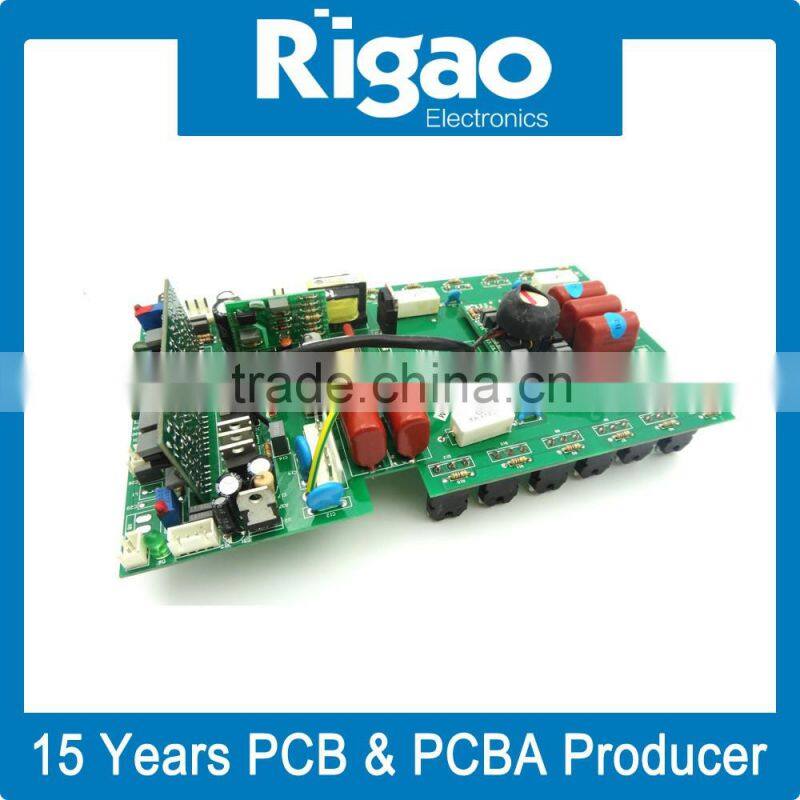

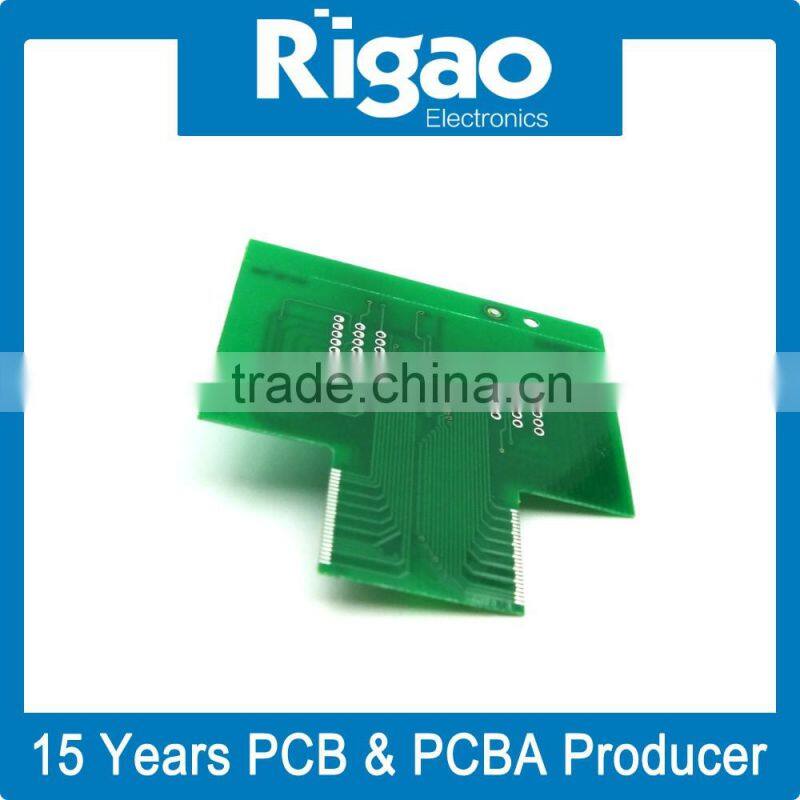

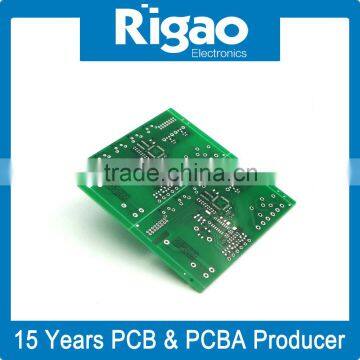

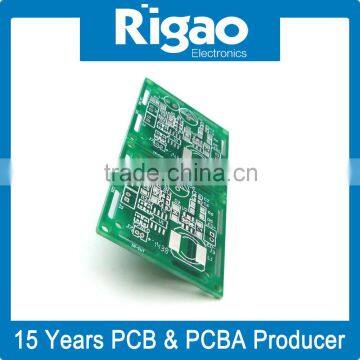

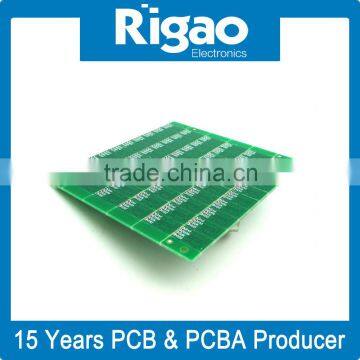

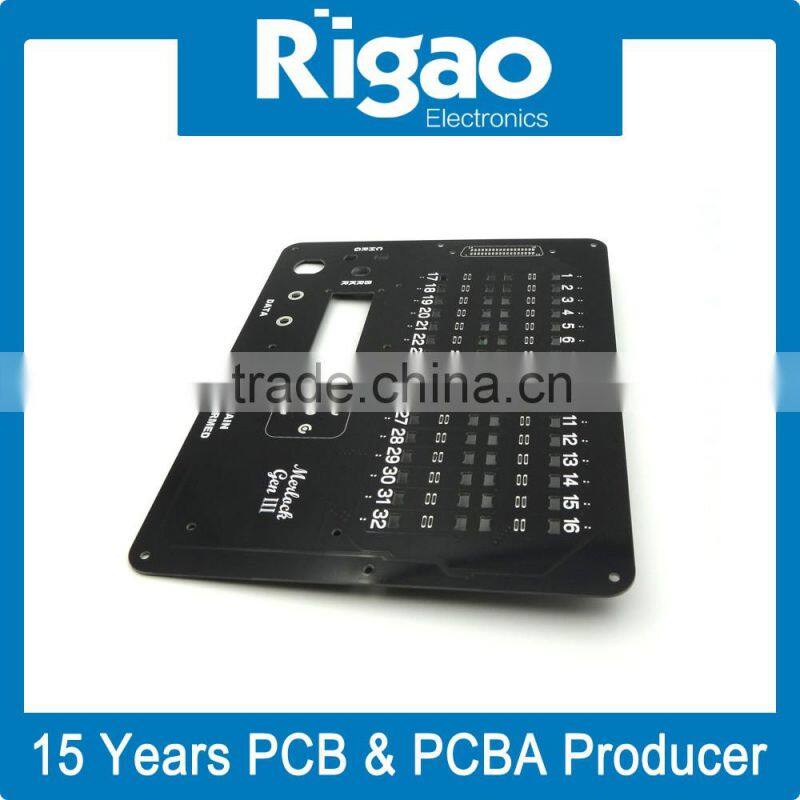

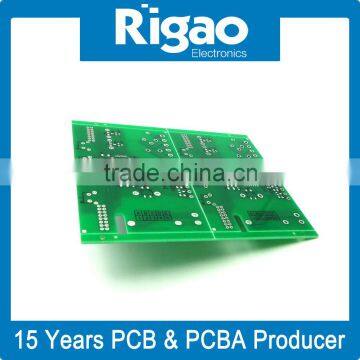

pcb schematic design,electronic pcba prototyping
- 6500 Square Meter / Square Meters per Month
- Hongkong/Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | OEM | Model Number: | PCBA |
| Base Material: | FR-4 | Copper Thickness: | 0.5-4.0oz | Board Thickness: | 0.5mm - 3.0mm |
| Min. Hole Size: | 3mil(0.075mm) | Min. Line Width: | 0.1mm4mil) | Min. Line Spacing: | 0.1mm4mil) |
| Surface Finishing: | HASL |
Product Description
pcb schematic design,electronic pcba prototyping
1.Layer: 1-30 layer
2Material: FR-4,CEM-1,CEM-3,Hight TG,FR4 Halogen Free,FR-1,FR-2,Aluminum
3.Board thickness: 0.2mm-7mm
4.Max.finished board side: 500mm*500mm
5.Min.drilled hole size: 0.25mm
6.Min.line width: 0.075mm(3mil)
7.Min.line spacing: 0.075mm(3mil)
8.Surface finish/treatment: HALS/HALS lead free,Chemical tin,Chemical Gold, Immersion gold Immersion Silver/Gold,Osp,Gold Plating
9.Copper thickness: 0.5-4.0oz
10.Solder mask color: green/black/white/red/blue/yellow
11.Inner packing: Vacuum packing,Plastic bag
12.Outer packing: Standard carton packing
13.Hole tolerance: PTH:±0.076,NTPH:±0.05
14.Certificate: UL,ISO9001,ISO14001,ROHS,CQC
15.Profiling Punching: Routing,V-CUT,Beveling
16.Assembly Service: Providing OEM service to all sorts of printed circuit board assembly
Welcome To Rigao Electronics
pcb board and pcb assembly from Shenzhen Rigao
Several kinds of express can be chosen.
