high capacity baby diaper making production line machine factory supplied
- 10 Set / Sets per Month
- NANJING
- T/T
- Toilet Paper Cutter/Kitchen Towel Cutting Machine Price with High Performance
- High Capacity 3200mm A3 A4 Paper Writing Paper Recycling Machine, Office Paper Product Machinery for Sale
- Best Price 3200 Model Office Paper Copy Paper Manufacturing Line with Good Reputation
- Henan Toilet Tissue Paper Cutter/Cutting Machine with High Quality
- 1880mm Type Napkin Paper Making Machine Made in China
- Manufacturer Supply1575mm Napkin Paper/Tissue Paper Manufacturing Machine
Product Details
Condition: | New | Product Type: | Diaper Machine | Processing Type: | Pulp Molding Machine |
Place of Origin: | Jiangsu, China | Brand Name: | JWC diaper making machine | Model Number: | JWC-NK500-SV |
Voltage: | 380v | Power(W): | 345kw | Dimension(L*W*H): | 25*1.95*2.2m |
Weight: | 70000kg | Certification: | Other, CE, CE, ISO9001 | Warranty: | 12 months |
After-sales Service Provided: | Overseas third-party support available |
Product Description
♦ Main technical parameters:
machine Model | JWC-NK500-SV |
Design speed | 250m/min |
Practical speed | 450-500pcs/min(Small size) |
Installed capacity | 260KW (Including hot melt system) |
Practical capacity | 200KW(Including hot melt system) |
Electric wire | 3×120 mm2+1×50 mm2+1×25 mm2 |
Machine size | 30m×8m×3.5m |
Working space | 34m×12m×4m |
Gross weight | 7t |
Range of products | XL,L,M,S |
Product size | (design as per customers’ requirements) |
L×W(to be adjusted) S:(380×270)mm M:(450×310)mm L:(490×330)mm XL:(540×340) mm | |
Noise | <85dB(A) |
Efficiency | ≥85%(actual output to standard output within 7.5 hours) |
Color | sand yellow with blue (At customer’s request) |
Air compressor | >0.6Mpa, 2.2 m3/min, 22kw(for reference) |
Container | 4×40HQ+1×20GP |
♦ Main functions and features:
1. Sawmill crushing machine can crush untreated pulp, half-treated pulp and treated pulp. Pulp feeding is controlled by convertible frequency.
2. Upper sanitary paper supplied, center auto-unwinding, constant tension control and automatic feeding.
3. Cotton core formed by double net wheels.
4. SAP adding device and quantity can be adjusted. Controlled by convertible frequency
5. Knurling and compacting core device are provided.
6. Down sanitary paper supplied by cutting and transferring, constant tension control, center auto-unwinding and automatic feeding.
7.Cotton core is cut down.
8. Standing cuff, constant tension control auto-wind and automatic feeding, deviation rectifying guide.
9. Back sheet film supplied, center auto-unwinding, constant tension control and automatic feeding, deviation rectifying guide.
10. Frontal waist tape supplied, shut down and transferring.
26.
PLC controlling system.
27. Touchable screen
Profession design
Our company is specialize in disposable baby diaper manufacturing machine, improve and innovate the technology from Germany and Japan all the time. and the machine is easy to operate.
Responsibility for machine quality
All the spare parts used according to the contract, original German, Japan, Italy and USA brand.
Excellent After-sale Service
1. You can send technician to our factory to learn operate the machine before the machine delivery for 1-2 month. We can offer food and accommodation.
2. When the machine arrive your workshop, we will send technician to your workshop installing, testing the machine and training your workers.
3. If you need 1-3 Chinese technicians work for you, we can help you find them to work for you.
4. Life-long after service for the disposable baby diaper manufacturing machine.
Aditional service
If you need,we can search for the raw material supplier and introduce to you ,or we can supply the raw material by ourselves.(according to the product cost price)

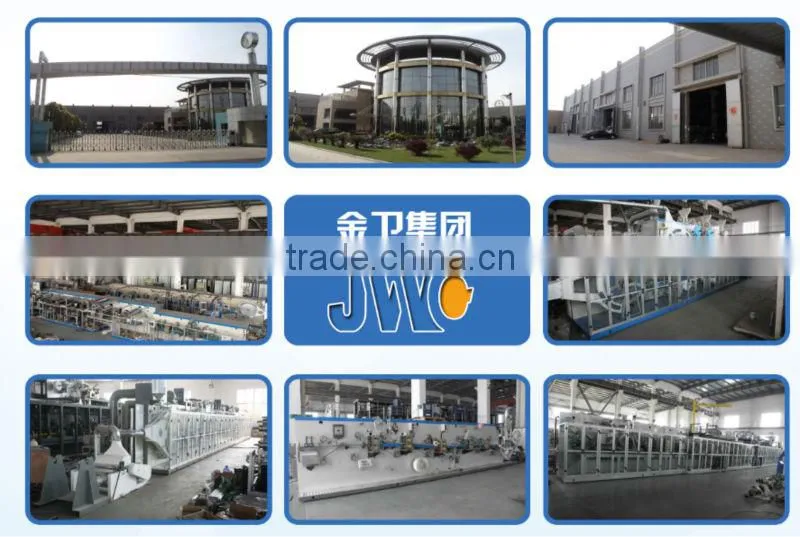

♦Group Introduction:
♦ Quality certification
♦Exhibition:
♦Cooperation brand:
1. We can provide free equipment production of finished products, need can feel free to contact us.
2.We can provide quality after-sales service :
• You can send technician to our factory to learn operate the machine before the machine delivery for 1-2 month. We can offer food and accommodation.
• When the baby diaper machine arrive your workshop, we will send technician to your workshop installing, testing the machine and training your workers.
• If you need one Chinese technician work for you, we can help you find one work for you.
• Life-long after service for the baby diaper machinery
4.

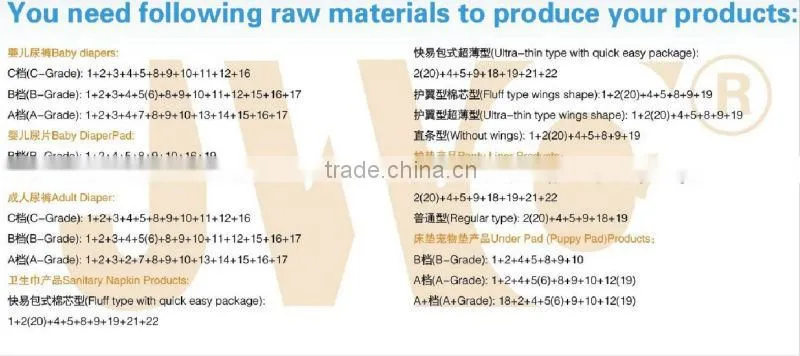

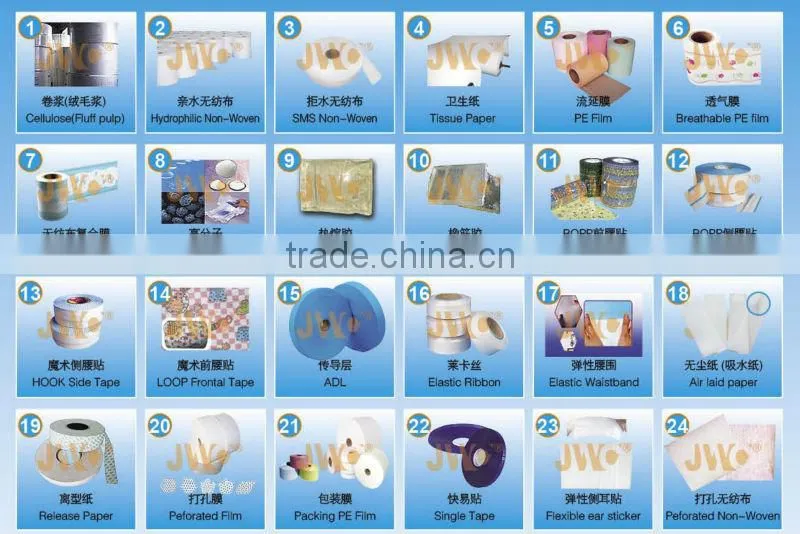

We can provide you need raw materials ( As shown above )
Contact Us
- Jiangsu JWC Machinery Co., Ltd.
- Contact nameDelia Ju
- Phone86-517-86989802
- AddressNo. 3, Huahai Road, Jinhu County
