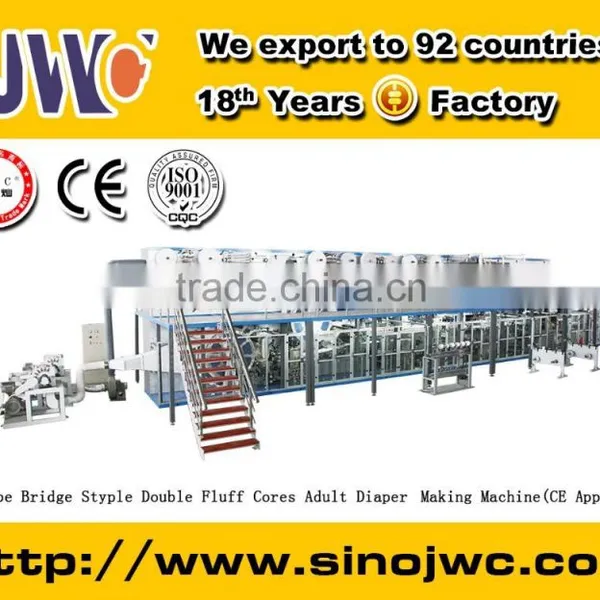

2015 W Shape Bridge Styple Double Fluff Cores Adult Diaper Making Machine(CE Approved)
Technical Parameters:
| model | driven mode | speed(pcs/min) | weight(T) | capacity | machine size(L*W*H) |
| JWC-LKC-SV-W | full servo driving | 200-250 | 118 | 400kw | 38*10*5.5m |
| adult diaper machine Model | JWC-LKC-SV-W |
| Designed speed | 200-250m/min |
| Qualified rate | 97% (The rate is compared with qualified products with gross output products within7.5 hours) |
| Efficiency | ≥85%(The rate is compared real output with principle output within 7.5 hours) |
| Installed capacity | 400KW (Including hot melt system) |
| Electric power supply | Three-phase & four-wire 380V/50HZ(Ground wire) |
| Electric wire | 3x120mm2+1x50mm2+1x25mm2 |
| Lowest barometric pressure | 8 kg/cm2 |
| Air compressor | >0.6Mpa, 1.8m3/min, 22kw(to be reference) |
| Gross weight | 118T |
| Noise | <85dB(A) |
| Machine size | (38*10*5.5)M |
| Color | Silver (According to order) |
| Container | 4×40HQ+1×20GP |
| Range of | XL L M S |
functions :
1.Main machine adopts servo motors driving.
2.Adopted imported convey belt driven. The friction coefficient can be auto profit adjusted at low or high speed to ensure whole line in consistent situation and good products.
3.The key parts adopt ball cage coupling, can improve the parallelism between upper and bottom cutting rollers, reduce the transmission error, more stable
4.The thickness of inside and outside plate use 50mm, 45 # hardening and tempering.
5.Using high quality HSS, ensure the life of cutter. Customers also can choose M7 material
6.The key position tool transmission adopts planetary reducer drive, free maintenance, zero error.
Image Figure:
About JWC
♦Since 1996
♦Specializes in researching &developing,hygiene products manufacturing,raw materials importing and exporting,hygienic products manufacturing and real estate development
♦Passed the ISO9001 and CE certificate and wins more than 100 national patents as "China Famous Brand"
♦Provide OEM service and different grades of raw materials to overseas customer
♦Ecport to more than 94 countries in Europe,southeast asia,south America ,the middle east and areas
♦Can be customized according to customer requirments
Company Show
Fair Show
Certifications
1. We can provide free equipment production of finished products, need can feel free to contact us.
2.We can provide quality after-sales service :
• You can send technician to our factory to learn operate the machine before the machine delivery for 1-2 month. We can offer food and accommodation.
• When the baby diaper machine arrive your workshop, we will send technician to your workshop installing, testing the machine and training your workers.
• If you need one Chinese technician work for you, we can help you find one work for you.
• Life-long after service for the baby diaper machinery
Q1:When can I get the price?
A1:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price,
please call us by 8613915199999 or tell us by Email so that we will regard your inquiry as the first priority.
Q2:How can I get a sample to check your quality?
A2:After price confirmation, we sincerely invite you to our factory to visit. I am representing our all staffs and engineers to welcome your coming for learning or checking our operation and production.
Q3:Can you do the machines' appearance design for us?
A3:Yes. We have a professional team with rich experience in machne's apperance design and manufacturing.
Q4:What's your after-sale service?
A4:Our own engineers could be asked by you overseas for your serve. You can also ask your staff or yourself to our factory to learn.
Q5:Could you also supply a raw material?
A5:Yes, we surely can.
