ATI-high Quality 7 Segment Led Dispaly Manufacturer

FOB Price

US$ 0.029 - 1.99 / Piece

1000 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	ATI led display manufacturer
Model Number	SM/SN/SR	Usage	Indoor
Tube Chip Color	Full Color	Display Function	Graphics
Pixels	Other, 1mm	Screen Dimension	all series are available

ATI-7 Segment LED Display Manufacturer

Features—Our Products Stand out of Others

1.Over 12 years producing experience as the vendor of Samsung,Haier,LG etc.

2.Big scale of producing makes sure that your purchase cost is lower.

3.Advanced production line guarantees stable quality and long life span.

4.High luminous intensity output, low voltage and current operating, ultra-low power consumption.

5.Solid-state LED Epistar chip based, easy mounting on printed circuit board and sockets.

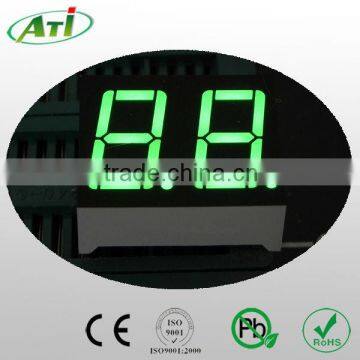

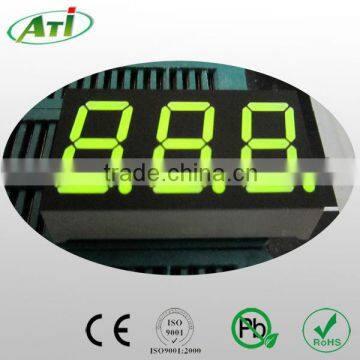

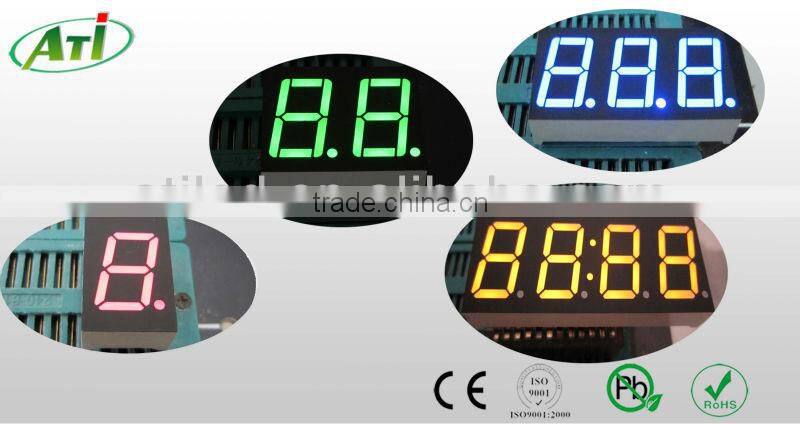

Product Exhibition—Show the Details for You

ELECTRICAL/OPTICAL CHARACTERISTICS AT Ta=25°C:

PARAMETER	SYMBOL	TEST CONDITION	Color	MIN	TYP	MAX	UNIT
Forward Voltage ,Per Segment	VF	IF=20mA	Red	1.7	1.8	2.2	V
Reverse Current , Per Segment	IR	VR=5V	Red			50	μA
Peak Emission Wavelength	λp	IF=20mA	Red	640	645	649	nm
Luminous Intensity Per Segment	IV	IF=20mA	Red	43	45	48	mcd

PARAMETER	SYMBOL	TEST CONDITION	Color	MIN	TYP	MAX	UNIT
Forward Voltage ,Per Segment	VF	IF=20mA	yellow	3.8	4,2	5.0	V
Reverse Current , Per Segment	IR	VR=5V	yellow			50	μA
Peak Emission Wavelength	λp	IF=20mA	yellow	585	588	592	nm
Luminous Intensity Per Segment	IV	IF=20mA	yellow	70	80	100	mcd

PARAMETER	SYMBOL	TEST CONDITION	Color	MIN	TYP	MAX	UNIT
Forward Voltage ,Per Segment	VF	IF=20mA	Blue	3	3.2	3.5	V
Reverse Current , Per Segment	IR	VR=5V	Blue			50	μA
Peak Emission Wavelength	λp	IF=20mA	Blue	460	462	465	nm
Luminous Intensity Per Segment	IV	IF=20mA	Blue	70	80	100	mcd

PARAMETER	SYMBOL	TEST CONDITION	Color	MIN	TYP	MAX	UNIT
Forward Voltage ,Per Segment	VF	IF=20mA	Pure Green	3	3.2	3.5	V
Reverse Current , Per Segment	IR	VR=5V	Pure Green			50	μA
Peak Emission Wavelength	λp	IF=20mA	Pure Green	512.5		515	nm
Luminous Intensity Per Segment	IV	IF=20mA	Pure Green	200	259	300	mcd

Perfect Product Package—We Care about Your Goods and You

Our New Production Line—Make Your Choice to be The Best

Our Certifications—No Worry for Our Products

More Information, You Could Easily Contact Us
