7 Segment Led Display 1 Digit 0.28" Pure Green Color

FOB Price

US$ 0.049 - 0.159 / Piece

1000 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	ATI LED 7 Segment Display 1 digit
Model Number	SM81028	Usage	Indoor
Tube Chip Color	Other, Pure Green	Display Function	Graphics
Pixels	Other, 1mm	Screen Dimension	7.64x 10.0 x 6.1mm

ATI 7 Segment Led Display 1 Digit

Features—Our Products Stand out of Others

1.Over 12 years producing experience as the vendor of Samsung,Haier,LG etc.

2.Big scale of producing makes sure that your purchase cost is lower.

3.Advanced production line guarantees stable quality and long life span.

4.High luminous intensity output, low voltage and current operating, ultra-low power consumption.

5.Solid-state LED Epistar chip based, easy mounting on printed circuit board and sockets.

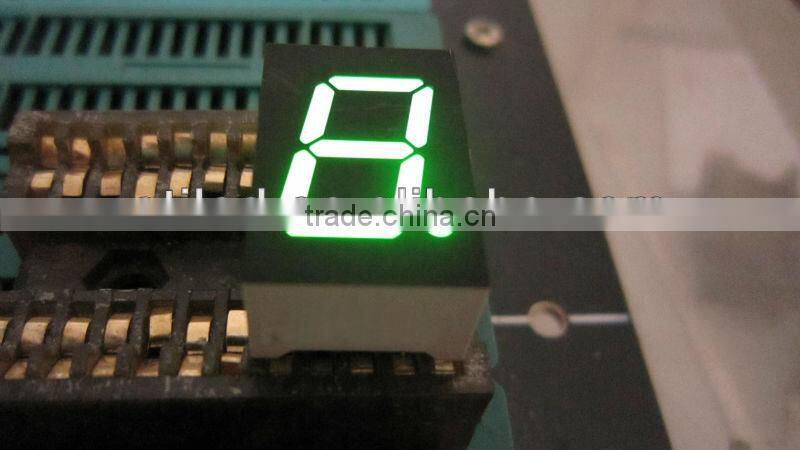

Product Exhibition—Show the Details for You

ELECTRICAL/OPTICAL CHARACTERISTICS AT Ta=25°C:

PARAMETER	SYMBOL	TEST CONDITION	Color	MIN	TYP	MAX	UNIT
Forward Voltage ,Per Segment	VF	IF=20mA	pure green	3.0	3.2	3.5	V
Reverse Current , Per Segment	IR	VR=5V	pure green			50	μA
Peak Emission Wavelength	λp	IF=20mA	pure green	512.5	513	515	nm
Luminous Intensity Per Segment	IV	IF=20mA	pure green	200	259	300	mcd

Perfect Product Package—We Care about Your Goods and You

Our New Production Line—Make Your Choice to be The Best

Our Certifications—No Worry for Our Products

7 segment LED Display Series—More Choices for Your Purchase

More Information, You Could Easily Contact Us
