0.36 Inch Led Display 7 Segment Single Digit Red Color

Name: 0.36 Inch Led Display 7 Segment Single Digit Red Color
Brand: ATI led display 7 segment
SKU: 132234559
Availability: InStock

US$ 0.049 - 0.259 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

ATI led display 7 segment

Model Number:

SM41036

ATI Electronics Technology Limited (Wuxi)

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name ATI led display 7 segment

Model Number SM41036

Usage Indoor

Tube Chip Color Red

Display Function Graphics

Pixels Other, 1mm

Screen Dimension 7.5 x 14.0 x 8.5mm

ATI LED Display 7 Segment

Features—Our Products Stand out of Others

1.Over 12 years producing experience as the vendor of Samsung,Haier,LG etc.

2.Big scale of producing makes sure that your purchase cost is lower.

3.Advanced production line guarantees stable quality and long life span.

4.High luminous intensity output, low voltage and current operating, ultra-low power consumption.

5.Solid-state LED Epistar chip based, easy mounting on printed circuit board and sockets.

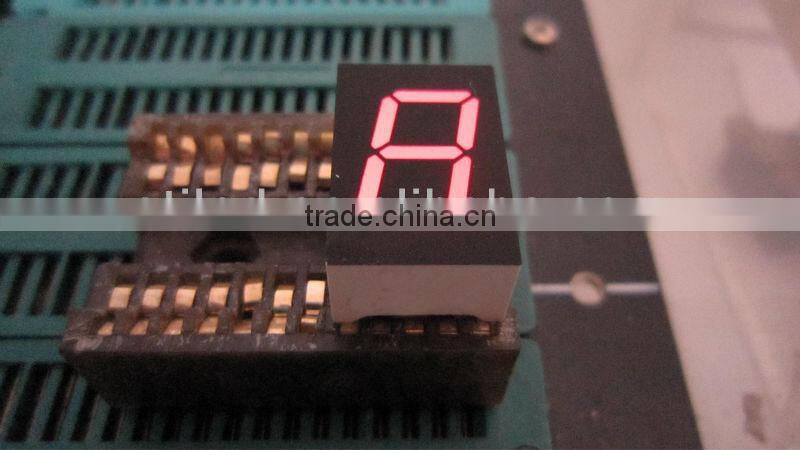

Product Exhibition—Show the Details for You

ELECTRICAL/OPTICAL CHARACTERISTICS AT Ta=25°C:

PARAMETER	SYMBOL	TEST CONDITION	Color	MIN	TYP	MAX	UNIT
Forward Voltage ,Per Segment	VF	IF=20mA	Red	1.9	2	2.5	V
Reverse Current , Per Segment	IR	VR=5V	Red			50	μA
Peak Emission Wavelength	λp	IF=20mA	Red	630	633	637	nm
Luminous Intensity Per Segment	IV	IF=20mA	Red	43	45	48	mcd
