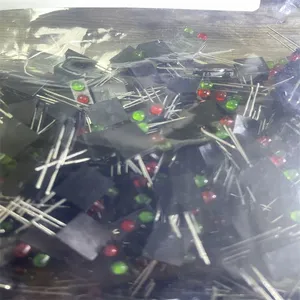

MHK2512RGTD

Luminous color: red light, plain green/yellow green lens color: foggy red, foggy green main wavelength: 568nm; 628nm Power: 78mW Luminous angle: 80 °; 120 ° C working temperature: -25 ℃~+85 ℃ LED cargo kit housing dual LED

Lianyungang Meihua Electronics Technology Co.,Ltd

 FEATURES

High intensity and reliability

LOW POWER CONSUMPTION

IC compatible, Easy assembly

LONG LIFE SOLID STATE RELIABILITY

Pb FREE PRODUCTS(Compliant with EU’s RoHS.)

.

 Description

5mm diameter package

Emitted color：

Yellow Green

 R:Red

 Chips materials：

1. G: GaAlInP/GaAs

2. R: GaAlInP/GaAs

 3.

Lens Type

 1. Green Diffused

2. Red Diffused

3

 Absolute Maximum Ratings(Ta=25℃) LED1

Parameter

Symbol

Rating

R G Unit

Power Dissipation Per Segment PAD 78/78 mW

Peak Forward Current Per Chip

（Duty=0.1,1KHZ）

IPF 120/120 mA

Average Forward Current

IF 30 mA

Reverse Voltage VR 5 V

Operating Temperature Range TOPR -25℃ to 85℃

Storage Temperature Range TSTG -40℃ to 85℃

 Optical-Electrical Characteristic(Ta=25℃)

Notes:

1. ±10%。 Tolerance of Luminous Intensity ±10%.

2. ±0.05V。Tolerance of Forward Voltage : ±0.05V.

Symbol

Parameter

Test Condition

Min

Typ

Max

Unit

VF

Forward Voltage

R:IF = 5mA - 2.0 2.6

V

G:IF = 5mA - 2.2 2.6

IR

Reverse Current

R:VR=5V - - 100

uA

G:VR=5V - - 100

λp

Peak Wavelength

R:IF = 5mA - 636 - nm

G:IF = 5mA - 574 -

λd

Dominant Wavelength

R:IF = 5mA - 628 - nm

G:IF = 5mA - 568 -

2θ1/2

Viewing Angle

R:IF = 5mA - 80 -

deg G:IF = 5mA - 120 -

Iv

Luminous Intensity

R:IF = 5mA - 20 - mcd
