7 Segment Led Digit Display 4 Digits 0.56" Blue Color

Name: 7 Segment Led Digit Display 4 Digits 0.56" Blue Color
Brand: ATI led digit display
SKU: 132234375
Availability: InStock

US$ 0.729 - 1.359 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

ATI led digit display

Model Number:

SR41056

ATI Electronics Technology Limited (Wuxi)

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name ATI led digit display

Model Number SR41056

Usage Indoor

Tube Chip Color Blue

Display Function Graphics

Pixels Other, 1.9mm

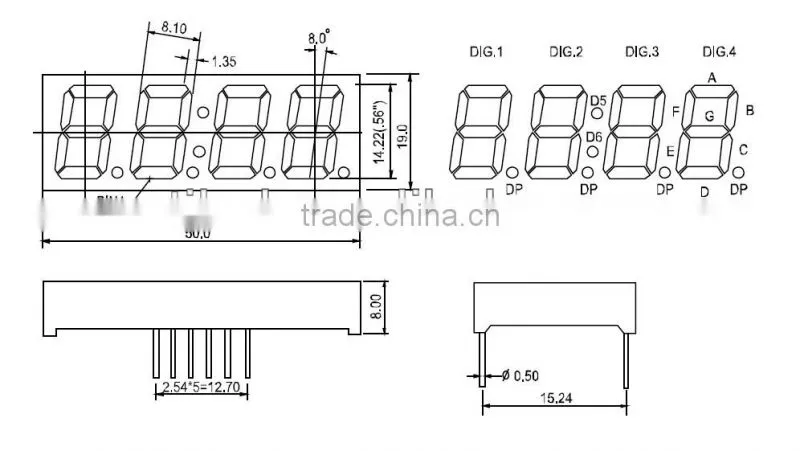

Screen Dimension 50.63x 19.0 x 8.0mm

ATI 7 Segment LED Digit Display

Features—Our Products Stand out of Others

1.Over 12 years producing experience as the vendor of Samsung,Haier,LG etc.

2.Big scale of producing makes sure that your purchase cost is lower.

3.Advanced production line guarantees stable quality and long life span.

4.High luminous intensity output, low voltage and current operating, ultra-low power consumption.

5.Solid-state LED Epistar chip based, easy mounting on printed circuit board and sockets.

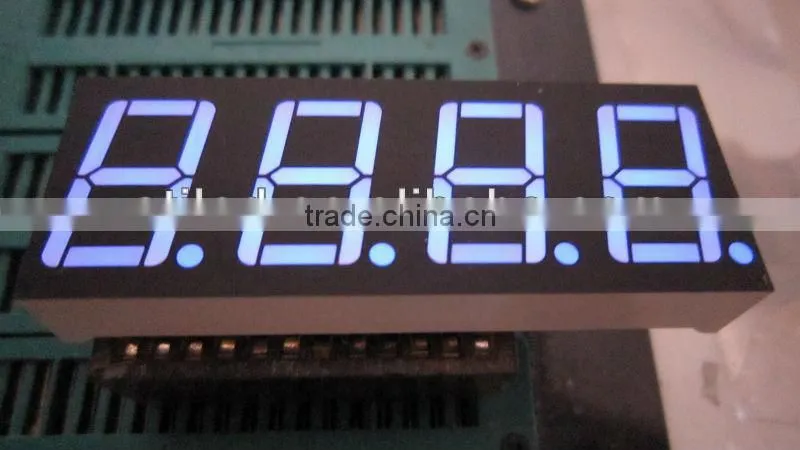

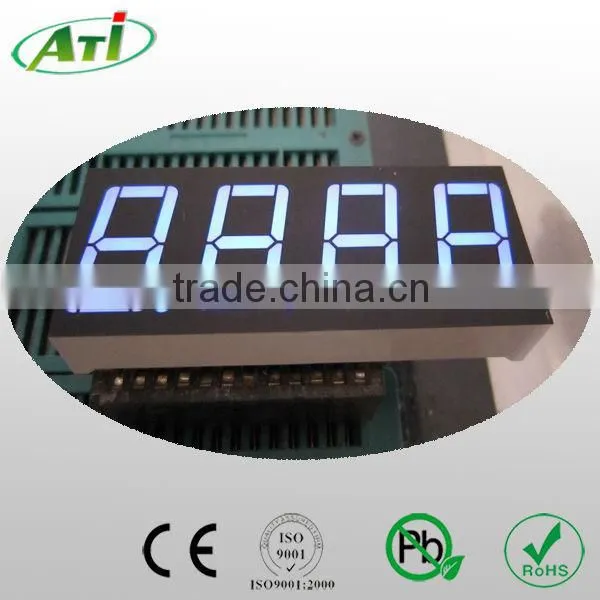

Product Exhibition—Show the Details for You

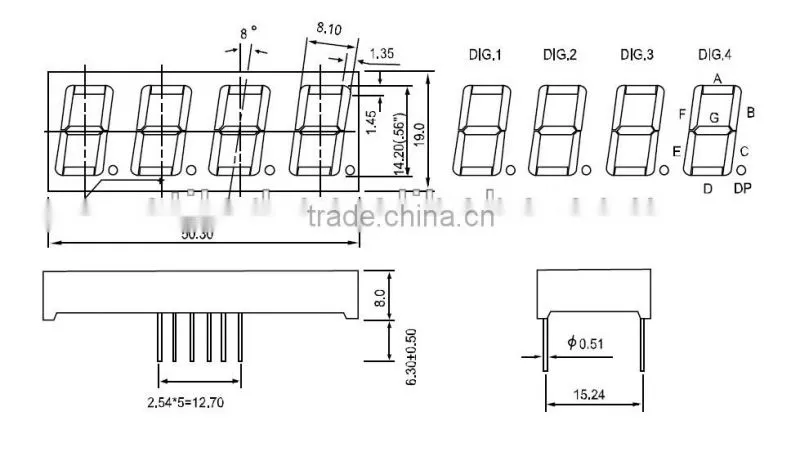

Other Type Option for 4 Digit LED Display

ELECTRICAL/OPTICAL CHARACTERISTICS AT Ta=25°C:

PARAMETER	SYMBOL	TEST CONDITION	Color	MIN	TYP	MAX	UNIT
Forward Voltage ,Per Segment	VF	IF=20mA	Blue	3.0	3.2	3.5	V
Reverse Current , Per Segment	IR	VR=5V	Blue			50	μA
Peak Emission Wavelength	λp	IF=20mA	Blue	460	462.5	465	nm
Luminous Intensity Per Segment	IV	IF=20mA	Blue	70	80	100	mcd
