Product Details
Condition: | New | Type: | Vertical | Place of Origin: | Guangdong, China |
Brand Name: | JOINT | Model Number: | CM750 | Voltage: | 220V/380V/415V |
Power(W): | 5.5/4.5KW | Dimension(L*W*H): | 2370*1900*2300mm | Weight: | 3500kgs |
Certification: | CE | Warranty: | one year of free parts due to quality problems |
Product Description
Specifications
CNC MachineLinear way, ball screw, servo and drive motor are imported from Taiwan and Japan;
Best cast, Dragon frame dsigh;

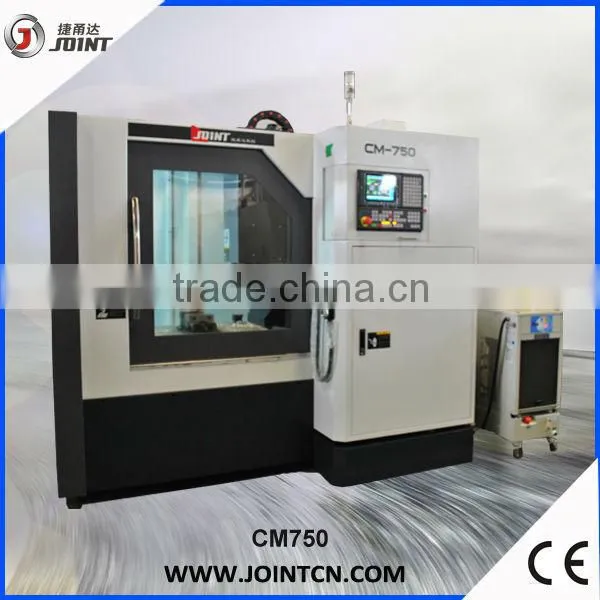

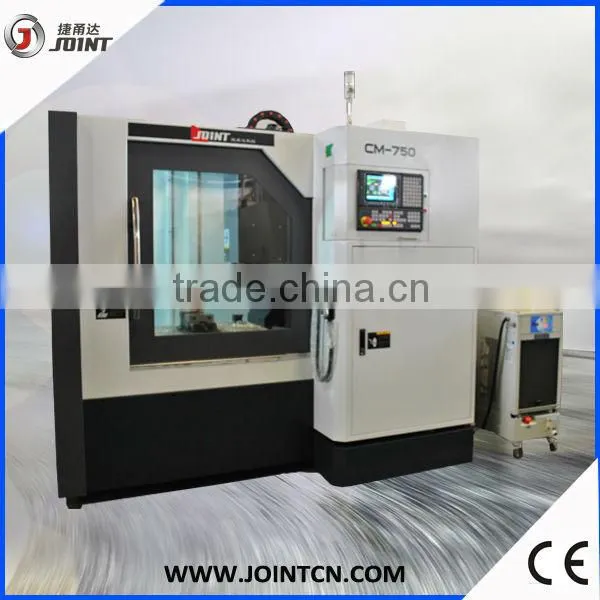

CNC Engraving Machine
Features:
Features:
1.Imported limit switch
2.NSK bearing
3.High speed electric spindle
4.PMI/ HIWIN Lead screw ball
5.AMT/HIWIN linear way
6.Germany R+W coupling

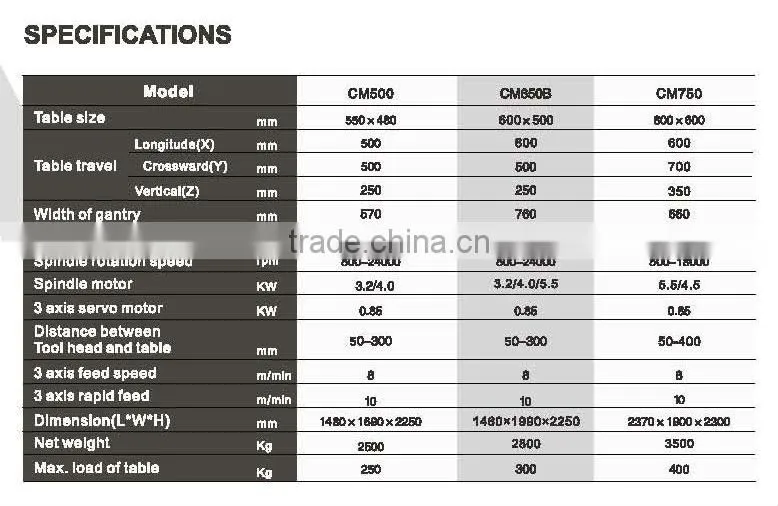

Specification:CNC Engraving Machine CM750
Accessories:
1.Standard accessories:
Taiwan LNC control system
Taiwan three axes ball screw
Imported linear way
Japan three axes servo motor
Working light
Coolant pump
Spindle coolant
2.Optional accessories:
BT30 tool magazine
Auto tool measurement
Voltage regulator
After-sales services:
Warranty is a year, we would offer the parts( quality problem) free of charge during this period. Overseas service need to be charged extra.
Photo:
1.Plant:
Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.
2.Research and Development team:
We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field.
3.Certificate and Honour:
1.8 Intellectual property rights and 5 the patents
2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field.
3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China.
4.In 2011,we have been granted as "National Grade HI-Tech Enterprise".
5.We have introduced ISO9001:2008 in 2009.
6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.
4. Production lines
