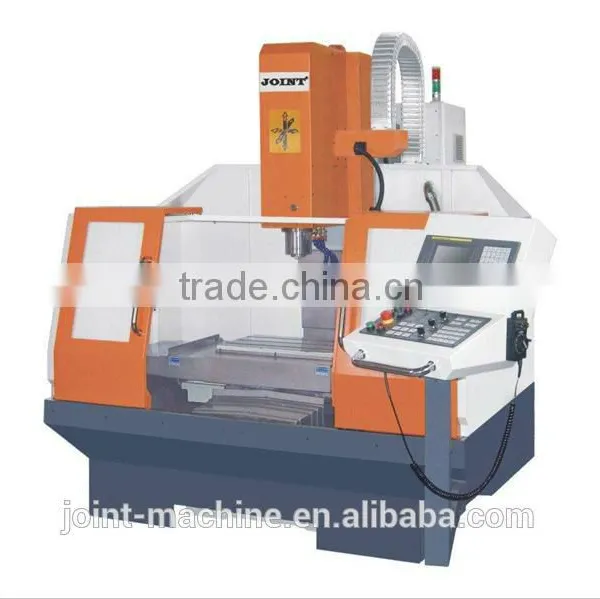

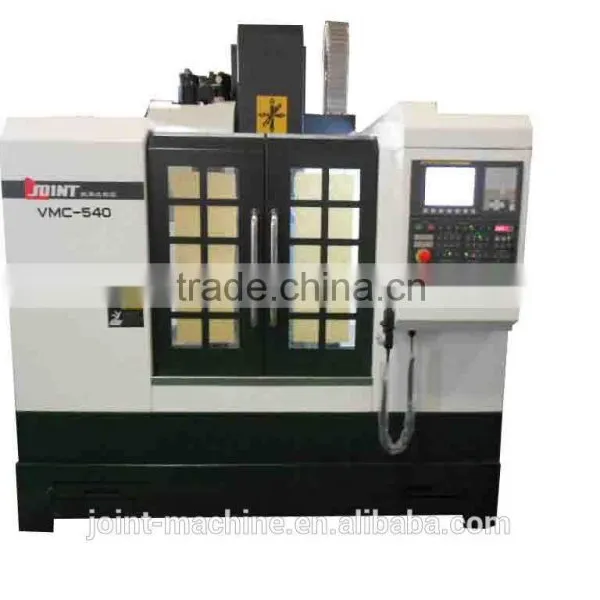

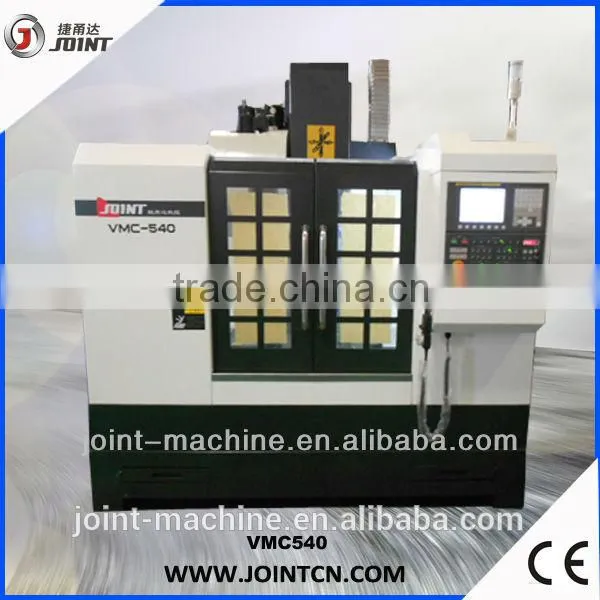

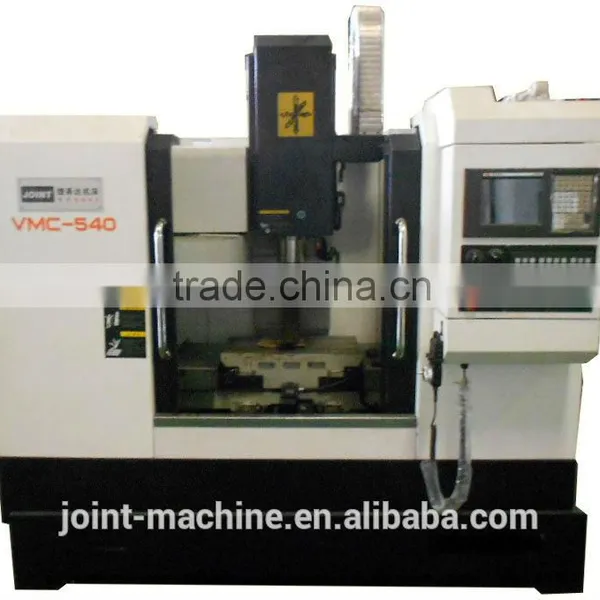

Three axes hard way and good rigidity CNC milling machine centerVMC540
specification:
1.Positioning accuracy 0.008mm/m;
2.Hardned & quenched slideway with Turcite B coated;
3.Imported ball screw;
4.Hardway type.
5.Hardened and quenched slideway with Turcite B coated makes the machine good anti-vibration performance,high rigidity and heavy loaded.
6.Spindle and spindle motor have been dynamic balanced,so tool life could be extended,and fantastic processing quality could be reached.
7.The design of whole cover is designing with good oil and water proof performance.
8.Taiwan famouse brand components(C3 leading screw,spindle and tool magazine).
9.Renishaw equipments are used to test each machine to meet the requirements of all clients.
10.Two dimensional and three dimensional trial cutting test of rigidity of tool magazine,to assure its high cutting quality.
Specification:Vertical Machining Center VMC540
| Model | VMC540 |
| Table size | 620*380mm |
| Travel (Longitude (X)) | 500mm |
| Travel (Crossward (Y)) | 380mm |
| Travel (Vertical (Z)) | 420mm |
| Distance between spindle and table | 80-560mm |
| Distance between spindle and column | 545mm |
| Spindle (Rotation speed) | 8000/10000 |
| Spindle (Taper) | BT30/BT40 |
| Spindle (Motor) | 5.5kw |
| Rapid feed (Longitude(X)) | 10m/min |
| Rapid feed (Crossward(Y)) | 10m/min |
| Rapid feed (Vertical(Z)) | 10m/min |
| Cutting feed | 6m/min |
| Positioning accuracy | 0.008mm/m |
| Min enactment move unit | 0.001mm |
| Dimension(L*W*H) | 2055*2000*2120mm |
| Net weight | 3000kg |
| Max loaded of table | 250kg |
Accessories:
1.Standard accessoires:
Control system
Electronic hand wheel
Cover
Auto lubrication of slide way
Coolant system
Operation manual of machine
Operation manual of control system
Cutting fluid and filter system
Stainless steel covers of slide way
Alarming light
Hammer balance
Tool and toolbox
2.Optional accessories:
Milling chuck and tool unlock
Arm type or umbrella type tool magazine
Auto chip conveyor
Oil coolant
The fourth axis NC dividing head or rotary table
Heat exchanger
After-sales services:
Warranty is a year, we would offer the parts( quality problem) free of charge during this period. Overseas service need to be charged extra.
Photos:
1.Workshop:
Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.
2.Research and Development team:
We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field.
3.Certificate and Honour:
1.8 Intellectual property rights and 5 the patents
2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field.
3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China.
4.In 2011,we have been granted as "National Grade HI-Tech Enterprise".
5.We have introduced ISO9001:2008 in 2009.
6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.
4.Accessories for Vertical machine center:
