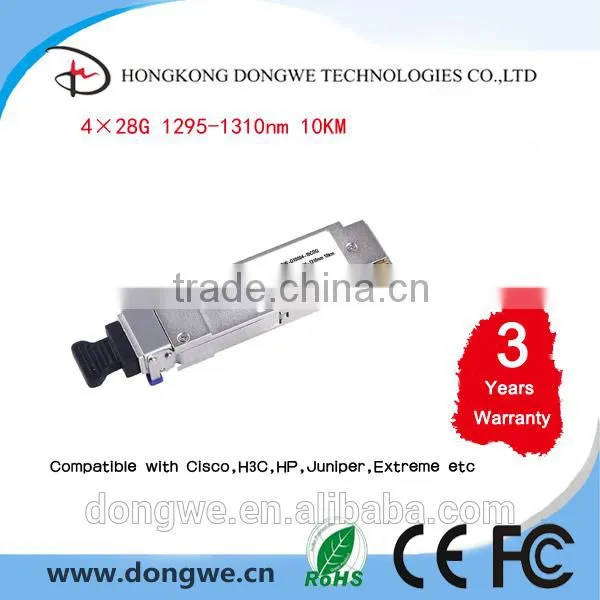

100Gb/s QSFP28 LR4 10km Optical Transceiver Pull-Tab Version

100Gb/s QSFP28 LR4 10km Optical Transceiver Pull-Tab Version thumbnail-1
100Gb/s QSFP28 LR4 10km Optical Transceiver Pull-Tab Version photo-1
US$ 3,000 - 3,400 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DONGWE
Model Number:
DW-D10004-10XDQ
Contact Supplier Request Quote Chat Now
Shenzhen Dongwe Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name DONGWE
Model Number DW-D10004-10XDQ



100Gb/s QSFP28 LR4 10km Optical Transceiver Pull-Tab Version



Product Description

 Features

  • Hot pluggable QSFP28 MSA form factor

  • Compliant to IEEE 802.3ba 100GBASE-LR4

  • Up to 10km reach for G.652 SMF

  • Single +3.3V power supply

  • Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)

  • Receiver: 4x25Gb/s PIN ROSA

  • 4x28G Electrical Serial Interface (CEI-28G-VSR)

  • Maximum power consumption 4.0W

  • Duplex LC receptacle

  • RoHS-6 compliant

  • Operating case temperature

    Standard :  0 to +70°C

    Industrial : -40 to +85°C



Applications

  • 100GBASE-LR4 Ethernet Links

  • Infiniband QDR and DDR interconnects

  • Client-side 100G Telecom connections



Product Description



This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.



Ordering Information
Part Number Product Description
DW-D10004-10CDQ

QSFP28 LR4 10km optical transceiver with full real-time digital diagnostic monitoring and pull tab;Standard :  0 to +70°C
DW-D10004-10IDQ QSFP28 LR4 10km optical transceiver with full real-time digital diagnostic monitoring and pull tab; Industrial : -40 to +85°C



Compatible Brands

100Gb/s QSFP28 LR4 10km Optical Transceiver Pull-Tab Version



Product Serial
100Gb/s QSFP28 LR4 10km Optical Transceiver Pull-Tab Version 100Gb/s QSFP28 LR4 10km Optical Transceiver Pull-Tab Version 100Gb/s QSFP28 LR4 10km Optical Transceiver Pull-Tab Version 100Gb/s QSFP28 LR4 10km Optical Transceiver Pull-Tab Version
100Gb/s QSFP28 LR4 10km Optical Transceiver Pull-Tab Version 100Gb/s QSFP28 LR4 10km Optical Transceiver Pull-Tab Version 100Gb/s QSFP28 LR4 10km Optical Transceiver Pull-Tab Version 100Gb/s QSFP28 LR4 10km Optical Transceiver Pull-Tab Version
100Gb/s QSFP28 LR4 10km Optical Transceiver Pull-Tab Version 100Gb/s QSFP28 LR4 10km Optical Transceiver Pull-Tab Version 100Gb/s QSFP28 LR4 10km Optical Transceiver Pull-Tab Version












Package and Shipment

100Gb/s QSFP28 LR4 10km Optical Transceiver Pull-Tab Version

Shipment:

International  Express: DHL, FedEx, UPS, TNT and EMS optional

Factory Show

100Gb/s QSFP28 LR4 10km Optical Transceiver Pull-Tab Version

Our Service

      1.  Competitive price

      2.  3 years warranty
       3.  Reply your inquiry within 2 hours
      4.  Have large quantity modules in stock, delivery fast
      5.  Label can be customized, also ODM and OEM service offered
      6.  100% new material and good quality
      7.  Can be compatible with a lot of brands like Cisco, HP, H3C, Extreme, Juniper etc.
      8.  Capacity: 10,000pcs/day
      9.  Certificates below:

      100Gb/s QSFP28 LR4 10km Optical Transceiver Pull-Tab Version
