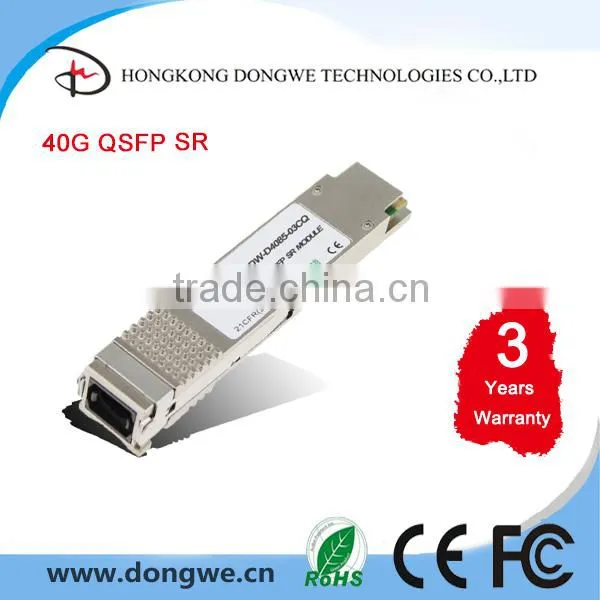

QSFP Module QSFP+ SR4 40G 300m on OM3 Fiber MMF and 400m on OM4 MMF Optic Module/Transcveiver

QSFP Module QSFP+ SR4 40G 300m on OM3 Fiber MMF and 400m on OM4 MMF Optic Module/Transcveiver thumbnail-1
QSFP Module QSFP+ SR4 40G 300m on OM3 Fiber MMF and 400m on OM4 MMF Optic Module/Transcveiver photo-1
US$ 250 - 300 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DONGWE
Model Number:
DW-D4085-03CQ
Contact Supplier Request Quote Chat Now
Shenzhen Dongwe Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DONGWE
Model Number DW-D4085-03CQ

QSFP Module, QSFP+ SR4, 40G, 300m on OM3 Fiber MMFand 400m on OM4 MMF, Optic Module/Transcveiver

Product Description

 Features

  • 4 channels full-duplex transceiver modules
  • Transmission data rate up to 10.5Gbps per channel
  • 4 channels 850nm VCSEL array
  • 4 channels PIN photo detector array
  • Low power consumption <1.5W
  • Hot Pluggable QSFP form factor
  • Maximum link length of 300m on OM3 Multimode Fiber (MMF)and 400m on OM4 MMF
  • Single MPO connector receptacle
  • Built-in digital diagnostic functions
  • Operating case temperature 0°C to +70°C
  • 3.3V power supply voltage
  • RoHS 6 compliant

Applications

  • 40GBASE-SR4 40G Ethernet
  • Datacom/Telecom switch & router connections
  • Data Aggregation and Backplane Applications
  • Proprietary Protocol and Density Applications
  • Infiniband transmission at 4ch SDR, DDR and QDR



Detail Description

The DONGWE Technologies DW-D4085-03CQ is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+
Transceiver for 40 Gigabit Ethernet Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 40 Gbps bandwidth. Each lane can operate at 10.3125 Gbps up to 300 m using OM3 fiber or 400 m using OM4 fiber.
These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 12 fiber MTP (MPO) connector. This module incorporates DONGWE Technologies proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service

Order Information
Part Number Product Description
40G QSFP
DW-D4085-01CQ QSFP+ SR4, 40G, 100m on OM3 Fiber MMFand 150m on OM4 MMF
DW-D4085-03CQ QSFP+ SR4, 40G, 300m on OM3 Fiber MMFand 400m on OM4 MMF
DW-D404C-10CQ QSFP+ LR4, 40G, 10km on a standard SM fiber
DW-D404C-30CQ QSFP+ ER4, 40G, 30km
56G QSFP
DW-D5685-01CQ QSFP+ SR4, 56G, 100m on OM3 Fiber MMFand 150m on OM4 MMF
Compatible Brands

QSFP Module QSFP+ SR4 40G 300m on OM3 Fiber MMF and 400m on OM4 MMF Optic Module/Transcveiver

Product Serial

QSFP Module QSFP+ SR4 40G 300m on OM3 Fiber MMF and 400m on OM4 MMF Optic Module/Transcveiver

           GBIC



QSFP Module QSFP+ SR4 40G 300m on OM3 Fiber MMF and 400m on OM4 MMF Optic Module/Transcveiver

SFP

QSFP Module QSFP+ SR4 40G 300m on OM3 Fiber MMF and 400m on OM4 MMF Optic Module/Transcveiver

                      SFP+

QSFP Module QSFP+ SR4 40G 300m on OM3 Fiber MMF and 400m on OM4 MMF Optic Module/Transcveiver

                  XFP

QSFP Module QSFP+ SR4 40G 300m on OM3 Fiber MMF and 400m on OM4 MMF Optic Module/Transcveiver

                    X2

QSFP Module QSFP+ SR4 40G 300m on OM3 Fiber MMF and 400m on OM4 MMF Optic Module/Transcveiver

                 Xenpak

QSFP Module QSFP+ SR4 40G 300m on OM3 Fiber MMF and 400m on OM4 MMF Optic Module/Transcveiver

                QSFP

QSFP Module QSFP+ SR4 40G 300m on OM3 Fiber MMF and 400m on OM4 MMF Optic Module/Transcveiver

  SFP GPON ONU/OLT

QSFP Module QSFP+ SR4 40G 300m on OM3 Fiber MMF and 400m on OM4 MMF Optic Module/Transcveiver

          10G Converter



QSFP Module QSFP+ SR4 40G 300m on OM3 Fiber MMF and 400m on OM4 MMF Optic Module/Transcveiver

               CSFP

QSFP Module QSFP+ SR4 40G 300m on OM3 Fiber MMF and 400m on OM4 MMF Optic Module/Transcveiver

   Direct Attach Cable


Package and shipment

QSFP Module QSFP+ SR4 40G 300m on OM3 Fiber MMF and 400m on OM4 MMF Optic Module/Transcveiver

Shipment:

International  Express: DHL, FedEx, UPS, TNT and EMS optional

Factory Show

QSFP Module QSFP+ SR4 40G 300m on OM3 Fiber MMF and 400m on OM4 MMF Optic Module/Transcveiver

Our Service

      1.  Competitive price

      2.  3 years warranty
        3.  Reply your inquiry within 2 hours
      4.  Have large quantity modules in stock, delivery fast
      5.  Label can be customized, also ODM and OEM service offered
      6.  100% new material and good quality
      7.  Can be compatible with a lot of brands like Cisco, HP, H3C, Extreme, Juniper etc.
      8.  Capacity: 10,000pcs/day
      9.  Certificates below:

      QSFP Module QSFP+ SR4 40G 300m on OM3 Fiber MMF and 400m on OM4 MMF Optic Module/Transcveiver

Related Products

You may also be interested in other products like:

WS-G5483                     WS-G5484                    WS-G5486                  WS-G5487

GLC-T                            GLC-SX-MM                GLC-LH-SM                GLC-EX-SM

GLC-ZX-SM                   GLC-BX-D                    GLC-BX-U

SFP-10G-SR                 SFP-10G-LR                SFP-10G-ER              SFP-10G-ZR

For further information and more products, please don't hesitate to contact us, we would be glad to hear from you. Thanks!!! :) :) :)
