QSFP Module QSFP+ LR4 40G 10km Optic Module Transcveiver
Features
- Transmission data rate up to 11.2Gbps per channel
- QSFP+ MSA compliant
- Compliant to IEEE 802.3ba specification for 40GBASE-LR4 links
- 4 CWDM un-cooled DFB lasers, using ITU G.694.2 wavelength grid at 1270, 1290, 1310 and 1330nm
- High Sensitivity PIN-TIA with optical DEMUX
- Up to 10km reach over standard single mode fiber
- Compliant with QDR/DDR Infiniband data rates
- Hot pluggable electrical interface
- Lower power consumption
- Operating case temperature 0°C to +70°C
- 3.3V power supply
- RoHS 6 compliant(lead free)
Applications
- 40GBASE-LR4 40G Ethernet links
- Infiniband QDR and DDR interconnects
- Client-side 40G Telecom connections
Detail Description

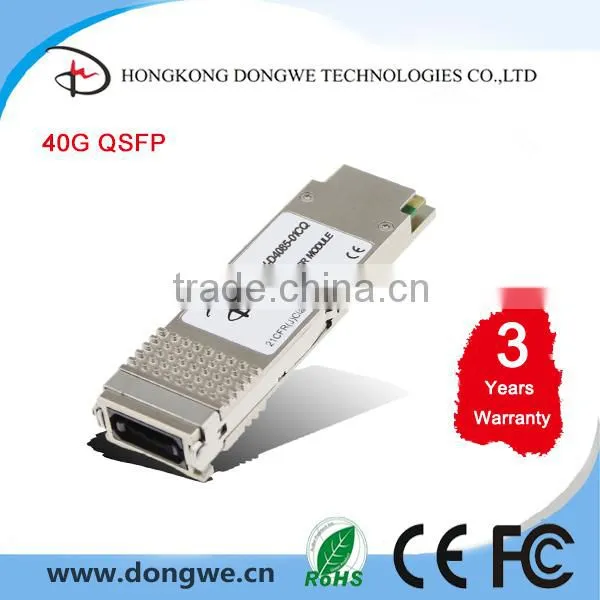

The DW-D404C-10CQ is a 4x10G hot pluggable optical transceiver. The DONGWE technology enables the
integration of 4 transmitters, 4 receivers and an optical MUX/DeMUX into a small form factor package that delivers a 40 Gbps data link in a compact QSFP footprint. The optical connectivity is based on two SMF LC connectors, one for Tx and one for Rx. The Tx and Rx each consist of 4 10GB/s CWDM channels, whose wavelengths are in the 1300nm range. The QSFP-LR transceiver is designed for applications based on the IEEE 802.3ba 40BASE-LR4 standard of up to 10km reach.
| Part Number | Product Description |
| 40G QSFP | |
| DW-D4085-01CQ | QSFP+ SR4, 40G, 100m on OM3 Fiber MMFand 150m on OM4 MMF |
| DW-D4085-03CQ | QSFP+ SR4, 40G, 300m on OM3 Fiber MMFand 400m on OM4 MMF |
| DW-D404C-10CQ | QSFP+ LR4, 40G, 10km on a standard SM fiber |
| DW-D404C-30CQ | QSFP+ ER4, 40G, 30km |
| 56G QSFP | |
| DW-D5685-01CQ | QSFP+ SR4, 56G, 100m on OM3 Fiber MMFand 150m on OM4 MMF |
|
GBIC
|
SFP |
SFP+ |
|
XFP |
X2 |
Xenpak |
|
QSFP |
SFP GPON ONU/OLT |
10G Converter
|
|
CSFP |
Direct Attach Cable |
