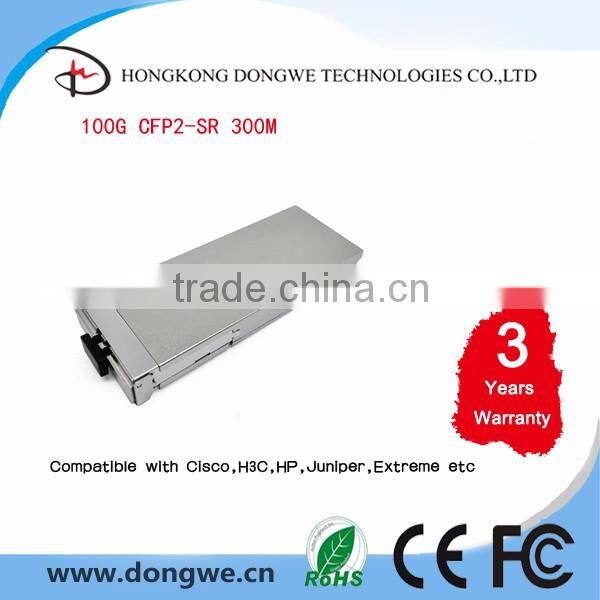

Network 100GBASE-SR10 CFP2 Optical Transceiver Module
Features
-
Compliant to CFP2 Hardware Specification Version 1.0
Compliant to CFP2 MSA Management Interface Specification Version 2.2
Compliant to the IEEE 802.3ba(100GBASE-SR10)
Transmission data rate up to 11.18 Gbit/s per channel
Up to 300m on OM3 and 400m on OM4 MMF
Power class 1 (<7W max)
OTU4 compatible
10 channels 850nm VCSEL array transmitter
10 channels PIN photo detector array receiver
MDIO digital diagnostic interface and control capabilities.
TX input and RX output CDR retiming
Hot pluggable electrical interface
Single 3.3V power supply
RoHS 6 compliant(lead free)
Utilizes a standard 24/20 lane optical fiber with MPO connector
Operating case temperature:
Standard : 0 to +70°C
Industrial : -40 to +85°C
Applications
100GBE interconnects
High-speed core router connections& Datacom/Telecom switch
- Data aggregation and backplane applications
- Proprietary protocol and density application
Product Description
DONGWE CFP2 optical transceiver module are a high performance, low power consumption, short reach interconnect solution supporting 100G Ethernet and Telecom. It is compliant with the CFP2 MSA and IEEE P802.3ba 100GBASE-SR10.Networks CFP2 SR10 modules offer 10 transmit and 10 receive asynchronous channels operating at up to 11.18Gbps per channel.
As shown in Figure 1, the transmitter side of the module consists of an array of VCSELs (Vertical Cavity Surface Emitting Lasers) and associated circuitry, which converts 10 parallel electrical data inputs to 10 parallel optical data output signals and also converts 10 parallel optical signals into 10 parallel electrical signals through an array of PIN photodiodes and associated circuitry
| Part Number | Product Description |
| DW-D10010-03CDC2 | CFP2 100G SR10, 300m on OM3 MMFand 400m on OM4 MMF;0 to +70°C |
| DW-D10010-03IDC2 | CFP2 100G SR10, 300m on OM3 MMFand 400m on OM4 MMF;-40 to +85°C |
|
|
|
|---|---|---|
|
|
|
Shipment:
International Express: DHL, FedEx, UPS, TNT and EMS optional
1. Competitive price
You may also be interested in other products like:
WS-G5483 WS-G5484 WS-G5486 WS-G5487
GLC-T GLC-SX-MM GLC-LH-SM GLC-EX-SM
GLC-ZX-SM GLC-BX-D GLC-BX-U
SFP-10G-SR SFP-10G-LR SFP-10G-ER SFP-10G-ZR
For further information and more products, please don't hesitate to contact us, we would be glad to hear from you.
