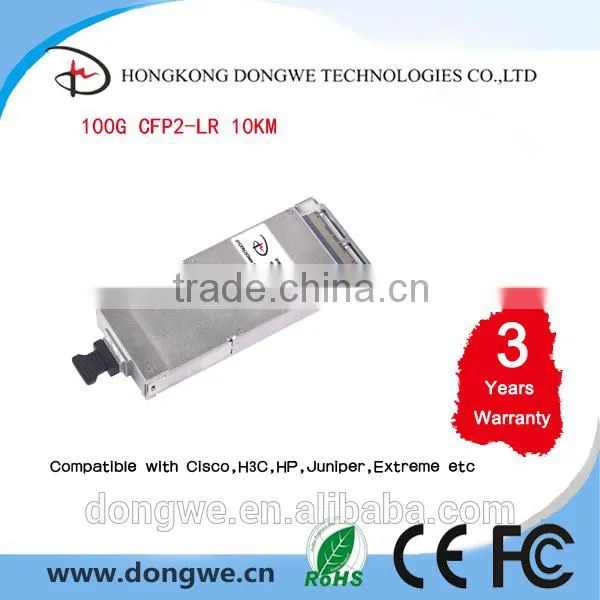

Duplex LC 100G 1310nm 10km CFP2 Transceiver Compatible CFP2-100G-LR4-D
Features
- Compliant with IEEE 802.3ba
Compliant with CFP2 MSA hardware specifications
Compliant with CFP2 MSA management specifications
Compliant with ITU-T G709/Y.1331
Compliant with RoHS - Duplex LC receptacle optical interface
Single +3.3V power supply
Hot-pluggable
Operating optical data rate up to 112Gbps
Operating electrical serial data rate up to 27.952493Gbps
4 parallel electrical serial interface
AC coupling of CML signals
PIN ROSA
Low power dissipation(Max:9W)
Built in digital diagnostic function
Operating case temperature range:0℃ to 70℃
Compliant with 100GBASE-LR4 and OTU4
MDIO Communication Interface
Compatible with all kinds of commercial ONT
Applications
Local Area Network(LAN)
Wide Area Network(WAN)
Switch to router interface
ITU-T OTU4 OTL4.4 applications
Product Description
The 100G CFP2 LR4 optical transceiver integrates the transmit and receive path onto one module. Four electric-absorption modulated lasers (EMLs) with 1296, 1300, 1305, and 1309 nm center wavelengths, which multiplexed/demutiplexed into a single-mode fiber through an industry-standard LC connector. Each data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output driver.
| Part Number | Product Description |
| DW-D10010-03CDC2 | CFP2 100G SR10, 300m on OM3 MMFand 400m on OM4 MMF;0 to +70°C |
| DW-D10010-03IDC2 | CFP2 100G SR10, 300m on OM3 MMFand 400m on OM4 MMF;-40 to +85°C |
| DW-D10010-10CDC2 | CFP2 100G LR10, 10KM, 0 to +70°C |
| DW-D10010-10IDC2 | CFP2 100G LR10, 10KM, -40 to +85°C |
|
|
|
|---|---|---|
|
|
|
Shipment:
International Express: DHL, FedEx, UPS, TNT and EMS optional
1. Competitive price
