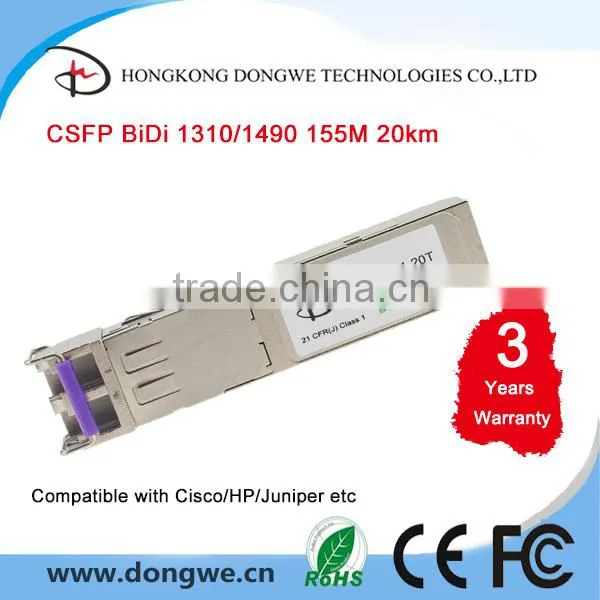

CSFP Module 155M Compact Bi-Di SFP Transceiver 20km Reach 1310nm TX 1490 nm RX

CSFP Module 155M Compact Bi-Di SFP Transceiver 20km Reach 1310nm TX 1490 nm RX thumbnail-1
CSFP Module 155M Compact Bi-Di SFP Transceiver 20km Reach 1310nm TX 1490 nm RX photo-1
US$ 1 - 20 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DONGWE
Model Number:
DW-C0334-20C
Contact Supplier Request Quote Chat Now
Shenzhen Dongwe Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DONGWE
Model Number DW-C0334-20C



CSFP Module 155M Compact Bi-Di SFP Transceiver 20km Reach 1310nm TX 1490 nm RX



Product Description

 Features

Support 155Mbps data links

1310nm FP laser and PIN photodetector for 20km transmission

2xBi-directional transceivers in 1 SFP transceiver package

Compliant with CSFP MSA Option 2 and SFF-8472

Digital Diagnostic Monitoring: Internal Calibration or External Calibration

Compatible with SONET OC-3 system
Compatible with RoHS
+3.3V single power supply

Operating case temperature:0 to +70°C(Commercial) -40°C to +85°C (Industrial)

Applications

SONET OC-3 system
Fast Ethernet

Switch to Switch interface

Point to Point FTTH Application
Other optical transmission systems



Detail Description

The CSFP transceivers are high performance, cost effective modules supporting 155Mbps and 20km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with Compact SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.



Ordering Information



Part Number Product Description
155M CSFP BIDI
DW-C0334-02C(D) Compact SFP BIDI 155M 1310nm/1490nm 2km 0ºC ~ +70ºC (DDM)
DW-C0334-02T(D) Compact SFP BIDI 155M 1310nm/1490nm 2km -40ºC ~ +85ºC (DDM)

DW-C0334-10C(D) Compact SFP BIDI 155M 1310nm/1490nm 10km 0ºC ~ +70ºC (DDM)
DW-C0334-10T(D) Compact SFP BIDI 155M 1310nm/1490nm 10km -40ºC ~ +85ºC (DDM)

DW-C0334-20C(D) Compact SFP BIDI 155M 1310nm/1490nm 20km 0ºC ~ +70ºC (DDM)
DW-C0334-20T(D) Compact SFP BIDI 155M 1310nm/1490nm 20km -40ºC ~ +85ºC (DDM)

DW-C0335-02C(D) Compact SFP BIDI 155M 1310nm/1550nm 2km 0ºC ~ +70ºC (DDM)
DW-C0335-02T(D) Compact SFP BIDI 155M 1310nm/1550nm 2km -40ºC ~ +85ºC (DDM)

DW-C0335-10C(D) Compact SFP BIDI 155M 1310nm/1550nm 10km 0ºC ~ +70ºC (DDM)
DW-C0335-10T(D) Compact SFP BIDI 155M 1310nm/1550nm 10km -40ºC ~ +85ºC (DDM)

DW-C0335-20C(D) Compact SFP BIDI 155M 1310nm/1550nm 20km 0ºC ~ +70ºC (DDM)
DW-C0335-20T(D) Compact SFP BIDI 155M 1310nm/1550nm 20km -40ºC ~ +85ºC (DDM)

1.25G CSFP BIDI
DW-C1234-10C(D) Compact SFP BIDI 1.25G 1310nm/1490nm 10km 0ºC ~ +70ºC (DDM)
DW-C1234-10T(D) Compact SFP BIDI 1.25G 1310nm/1490nm 10km -40ºC ~ +85ºC (DDM)

DW-C1234-20C(D) Compact SFP BIDI 1.25G 1310nm/1490nm 20km 0ºC ~ +70ºC (DDM)
DW-C1234-20T(D) Compact SFP BIDI 1.25G 1310nm/1490nm 20km -40ºC ~ +85ºC (DDM)

DW-C1235-20C(D) Compact SFP BIDI 1.25G 1310nm/1550nm 20km 0ºC ~ +70ºC (DDM)
DW-C1235-20T(D)     Compact SFP BIDI 1.25G 1310nm/1550nm 20km -40ºC ~ +85ºC (DDM)
