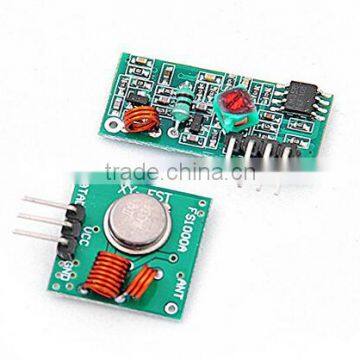

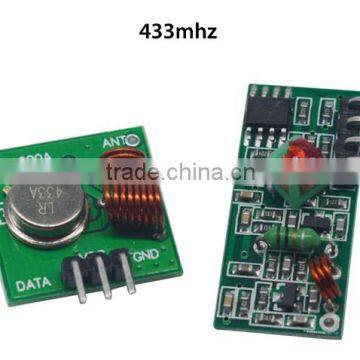

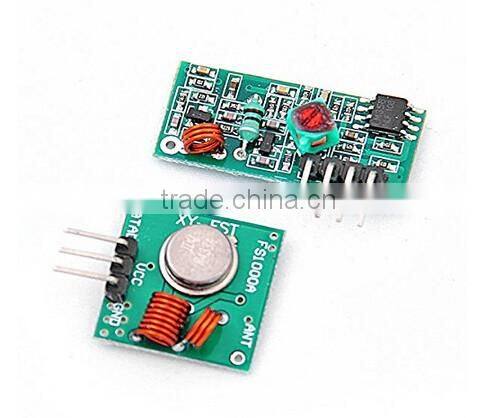

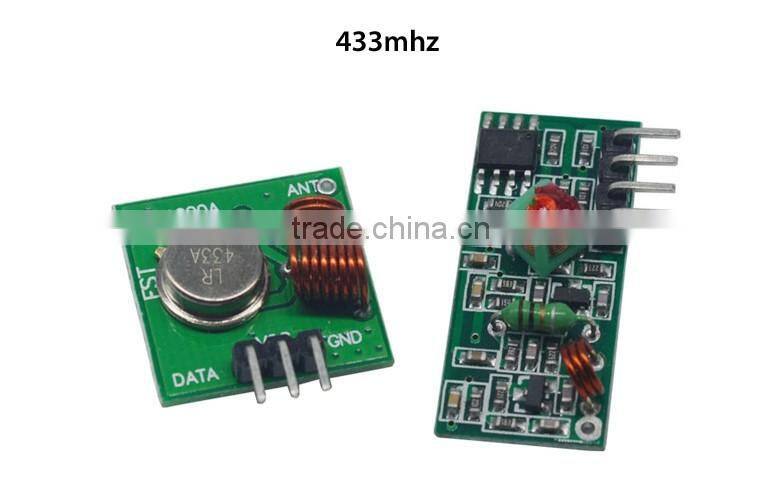

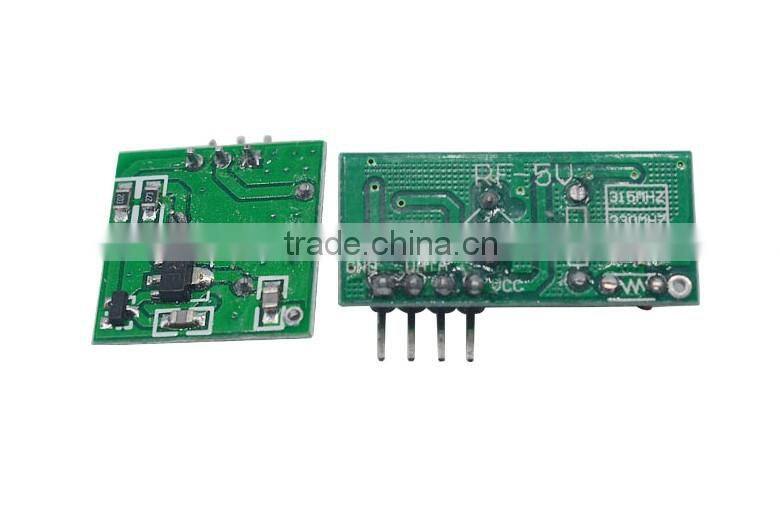

433Mhz Wireless RF Transmitter and Receiver
| 1. 433Mhz wireless RF transmitter and Receiver |
| 2. Transmitter working voltage: 3.5-12V |
| 3. Receiver operating voltage: DC5V |
| 4. Operating Temperature: -10 ℃ ~ +70 ℃ |

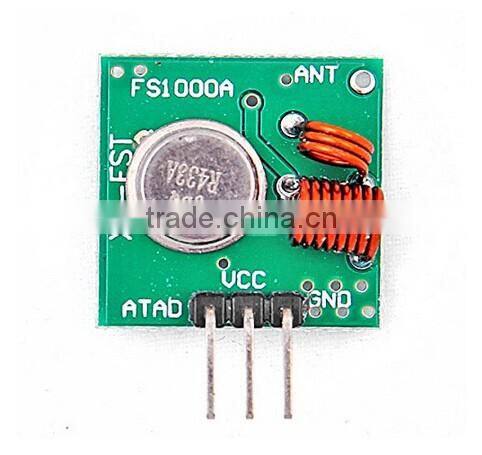

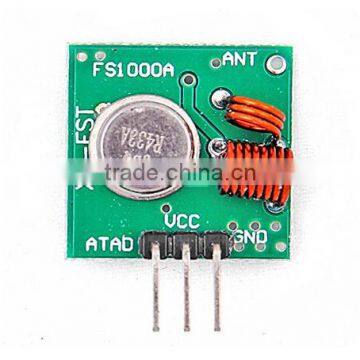

Transmitter Technical Specifications:
| 1. Working voltage: 3V-12V |
| 2. Working current: 20-28mA. |
| 3. Working temperatur: -10 degree to +70 degree |
| 4. Resonance mode: sound wave resonance (SAW) |
| 5. Modulation mode: ASK /OOK |
| 6. Working frequency: 315MHz-433.92MHz, customized frequency is available. |
| 7. Transmission distance:>500m,sensitivity to -103dBm, in open areas. |
| 8. Transmission power: 25mW (315MHz at 12V) |
| 9. Frequency error: +150kHz (max) |
| 10. Velocity: ¡Ü10Kbps |
| 11. Self-owned codes: negative. |

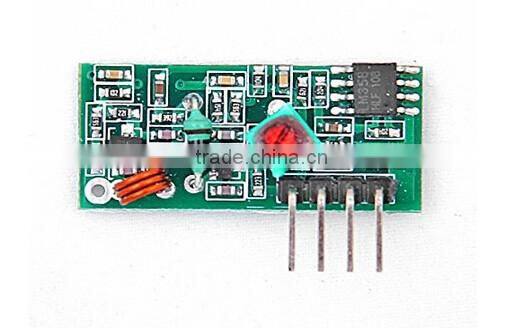

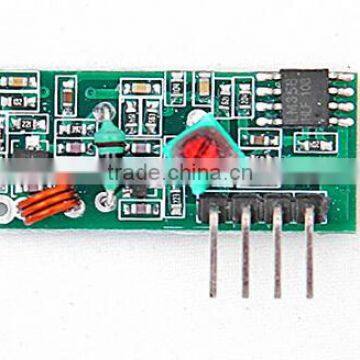

Receiver Technical Specifications:
| 1. Working voltage: 5.0VDC |
| 2. Static current:4MA |
| 3. Working temperatur: -10 degree to +70 degree |
| 4. Working principle: single chip superregeneration receiving |
| 5. Working method: OOK/ASK |
| 6. Working frequency: 315MHz-433.92MHz, customized frequency is available(266-433MHZ). |
| 7. Bandwidth: 2MHz (315MHz, having result from testing at lowing the sensitivity 3dBm) |
| 8. Sensitivity: excel ¨C100dBm (50¦¸) |
| 9. Transmitting velocity: <9.6Kbps (at 315MHz and -95dBm) |
| 1 X RF transmitter |
| 1 X RF receiver |
