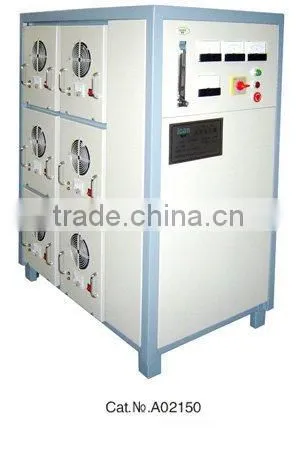

1,CFY-150 oxygen source ozone generator details:
Ozone generating capacity: 150g/h
Gas source: oxygen
Power supply: 380V50Hz
Power: 2000W
N.W: 255kg
Size: 650*1020*1360
2,The air pressure of ozone input: 0.1-0.5MPa (Build-in decompression Valve)
The air pressure of ozone output: 0.1MPa
Ozone concentration: ≥60mg/L
The interface of ozone outlet: Rc1/2 (Imperial inside screw)
Temperature: 5-35
Humidity: ≤85%
Rate input flow: 15-20L/g
3,Introduction: CFY-150 ozone generator takes oxygen as gas source (Need to additionally match air compressor and cold & dry machine and oxygen generator), and make structure of drawer with building block type. Every drawer is a generating unit with driven by high-frequency & voltage power module, and plate-style ozone generating fitting with air-cooling. Standardized generating unit, rated capacity is 25 glam, which could be interchanged, and could be started-up & be closed separately Gross ozone generating capacity could be adjusted by change the total number of units, high generating efficiency, high reliability, high ozone concentration.
4,photos of company

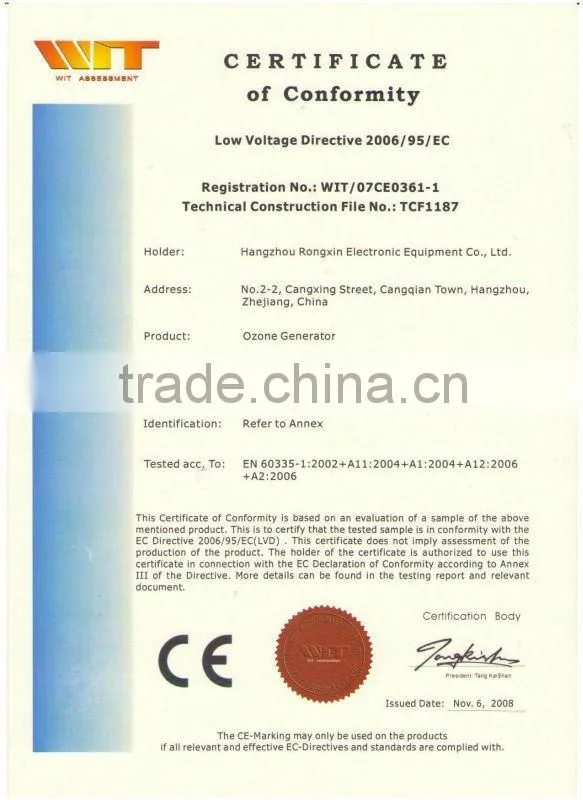

5,CE certification
