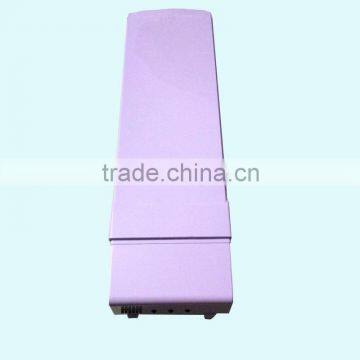

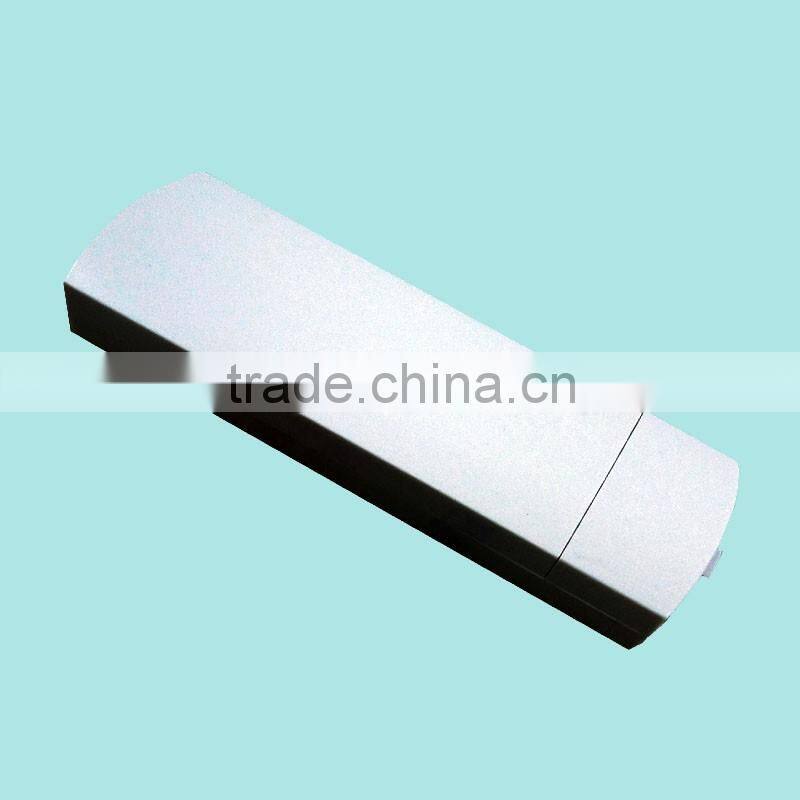

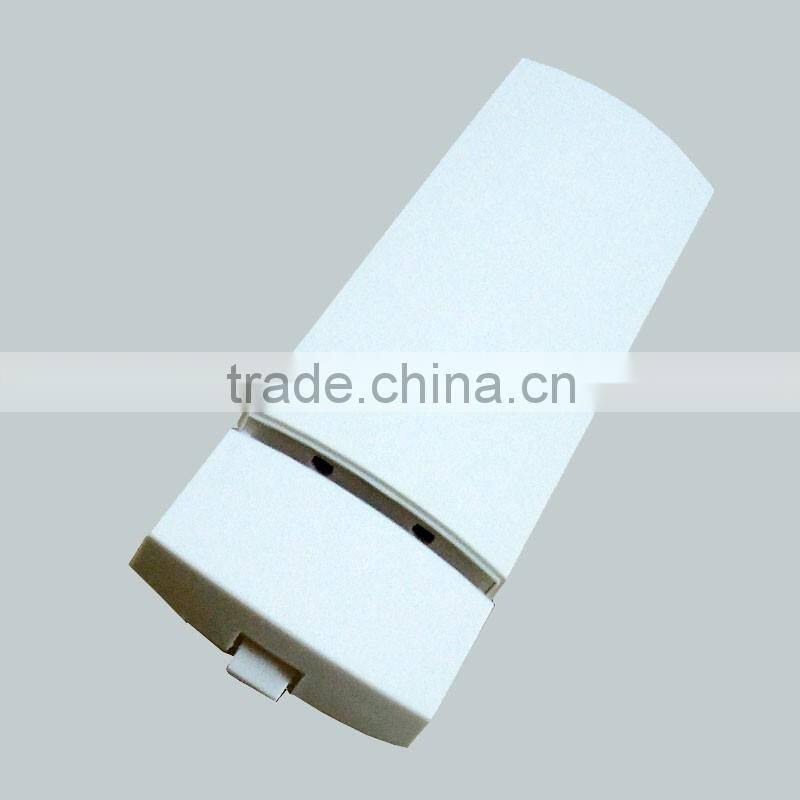

300Mbps outdoor Wireless access point(CPE)
|
||||||
Hardware Specifications |
|
|||||
Features |
Instructions |
|
||||
Chipset |
CPU:AR9341 RF:AR9341 |
|
|
|||
Ethernet |
IEEE802.3u MDI / MDIX 10/100 IEEE802.11a Wireless LAN Port IEEE 802.11n Wireless LAN |
|
|
|||
DDR |
32Mbyte |
|
|
|||
Flash Memory |
8Mbyte |
|
|
|||
PoE Power |
18V |
|
|
|||
CPU Frequency |
533MHz |
|
|
|||
Gain |
Bull-in 14dBi Antenna |
|
|
|||
Wireless Configuration |
2×2 (2Tx,2 Rx) |
|
|
|||

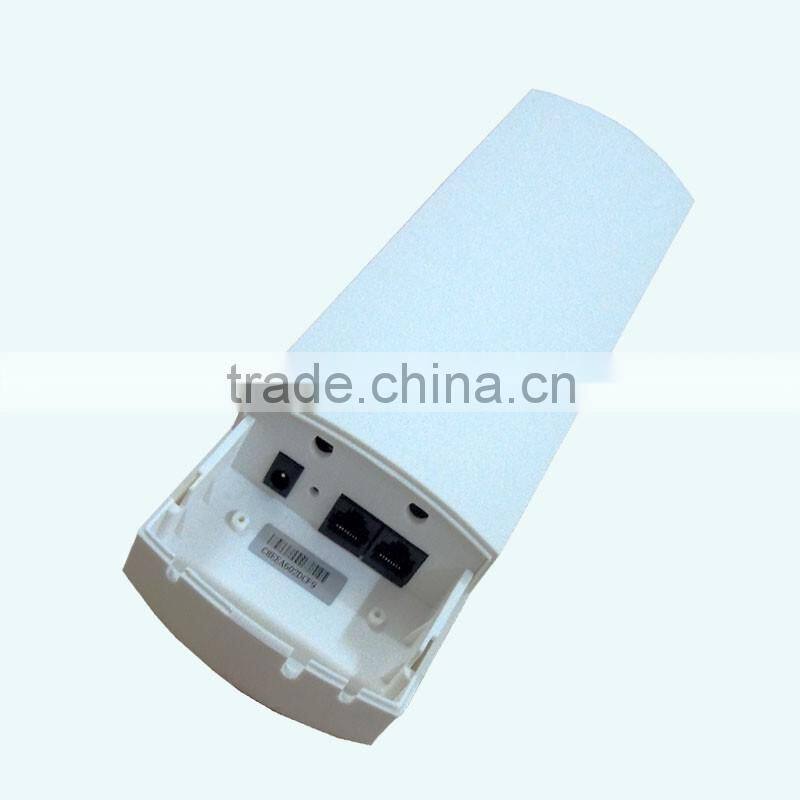

Ethernet Interface |
2 Base Ethernet Ports |
|
|
|||
Ethernet Physical Rate |
10/100Mbps |
|
|
|||
Reset Button |
The device to restore factory settings |
|
|
|||
Way of system upgrade |
Supporting upgrade through the web page by cable or wireless devices |
|
|
|||

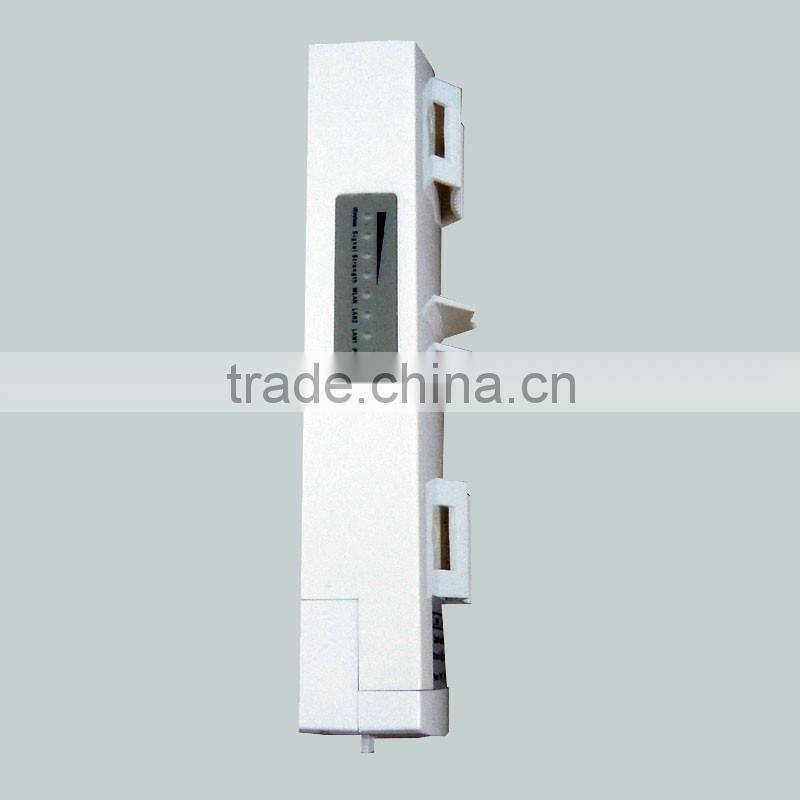

LED Light |
Power Indictor Light Power Light On:Power On/System Startup Power Light Out:Power off/System Shut down Wire Indictor Light Light Out:Ethernet Ports connection is broken. Light On: Ethernet Ports connection is normal Light Flicker:The data package is transmitted. Wireless Indictor Light(AP Model) Light Out:wireless closed Light Flicker:The data package is transmitted. Wireless Indictor Light(Client Model) |
|
|
|||
Power Supply |
18VDC 1.5A |
|
|
|||
Data Rate |
11b: 11M, 5.5M, 2M, 1Mbps 11g: 54M, 48M, 36M, 24M, 18M, 12M, 9M, 6Mbps HT20:6.5M, 13M, 19.5M, 26M, 39M, 52M, 58.5M, 65M,13M,26M,39M,52M,78M,104M,117M 81M, 104M, 108M, 117M,130M HT40:13.5M,27M,40.5M,54M,81M,108M,121.5M,135M,27M,54M,81M,108M ,162M,216M,243M,270M |
|
|
|||
Transmission Mode |
DSSS |
|
|
|||
Modulation |
OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK |
|
|
|||
Frequency Range |
China : 2412 GHz - 2484 GHz (Chanel1 -- Chanel13) |
|
|
|||
Power Consumption(18V) |
<= 800mA |
|
|
|||
RF Power 25℃(±1.5dB) |
|
|
||||
802.11b |
28.5±2dBm |
|
|
|||
802.11g |
6-24Mbps 36-48Mbps 54Mbps |
28.0±2dBm 27.0±2dBm 26.0±2dBm |
|
|
||
|
||||||
|
||||||
802.11n |
HT20 |
MCS 0-3 |
27 ± 2dBm |
|
|
|
MCS 4 |
26 ± 2dBm |
|
|
|||
MCS 5 |
25.5 ± 2dBm |
|
|
|||
MCS 6 |
25 ± 2dBm |
|
|
|||
MCS 7 |
24.5 ± 2dBm |
|
|
|||
HT40 |
MCS 0-3 |
27 ± 2dBm |
|
|
||
MCS 4 |
26± 2dBm |
|
|
|||
MCS 5 |
25± 2dBm |
|
|
|||
MCS 6 |
25 ± 2dBm |
|
|
|||
MCS 7 |
24.5 ± 2dBm |
|
|
|||
Sensitivity |
IEEE802.11b 1Mbps < -93dBm11Mbps< -87dBm |
IEEE 802.11a 6Mbps<=-89dBm 54Mbps<=-73dBm |
IEEE 802.11n HT 20 MCS 0<=-86dBm MCS 7<=-68dBm HT 40 MCS 0<=-83dBm MCS 7<=-65dBm |
|
||
