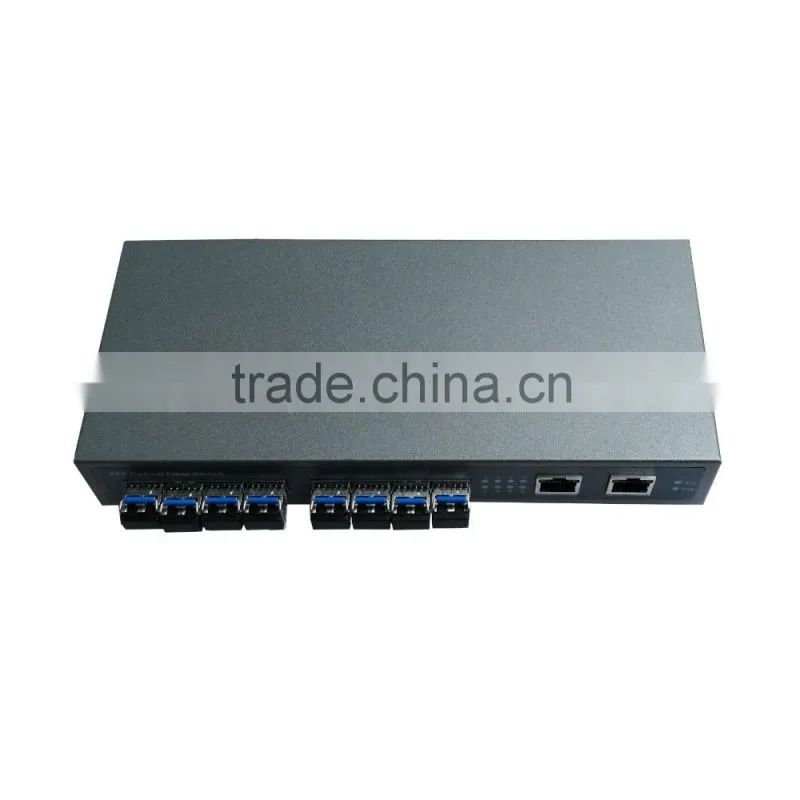

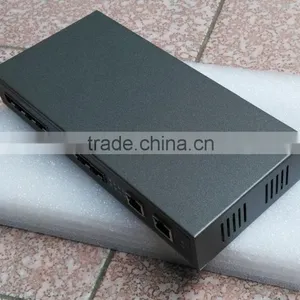

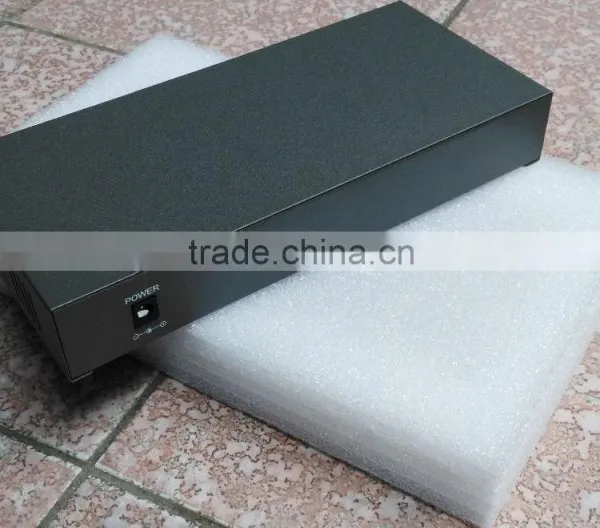

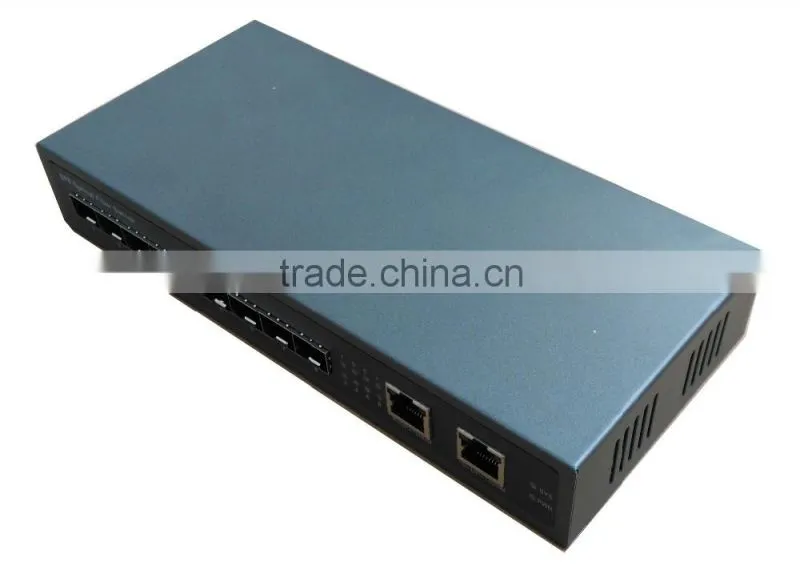

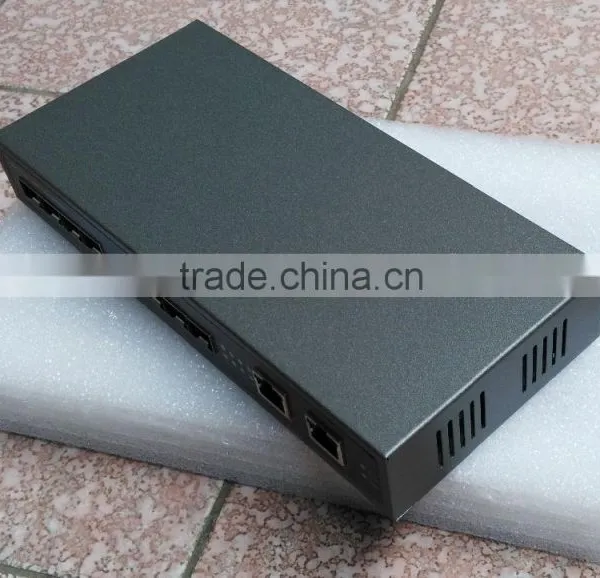

8 SFP fiber switch with 2 port10/100/1000Mbps TX uplink
- 100 Piece / Pieces per Month
- guangzhou
- T/T L/C Credit Card PayPal
- S5720-36C-EI-28S Combination Configuration (28 Gigabit SFPs, 4 multiplexed Gigabit 10/100/1000Base-T Ethernet ports Combo, 4 Gigabit SFP+, single daughter card slot, including 1 150W AC power supply)
- Huawei S5720-28X-SI-24S-AC (24 Gigabit SFPs, 8 multiplexed Gigabit 10/100/1000Base-T Ethernet ports Combo, 4 Gigabit SFP+, AC powered, front maintenance)
- S5731-S24P4X 24 10/100/1000BASE-T Ethernet ports, 4 10 Gigabit SFP+, PoE+
- S5720-56C-EI (48 10/100/1000Base-T Ethernet ports, 4 10 Gigabit SFP+, single daughter card slot, including 1 150W AC power supply)
- S5735-L48T4X-A1 (48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power)
- S5735-L32ST4X-A1 24*GE SFP ports, 8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power, front access
Product Details
Products Status: | Stock | Ports: | Other, ≤ 8 | Transmission Rate: | 10/100/1000Mbps |
Function: | LACP | Communication Mode: | Other, Full-Duplex & Half-Duplex | Certification: | ISO |
Switch Capacity: | 32Gbps | Brand Name: | YI NET | Model Number: | TS1008GSFP |
Place of Origin: | Guangdong, China |
Product Description

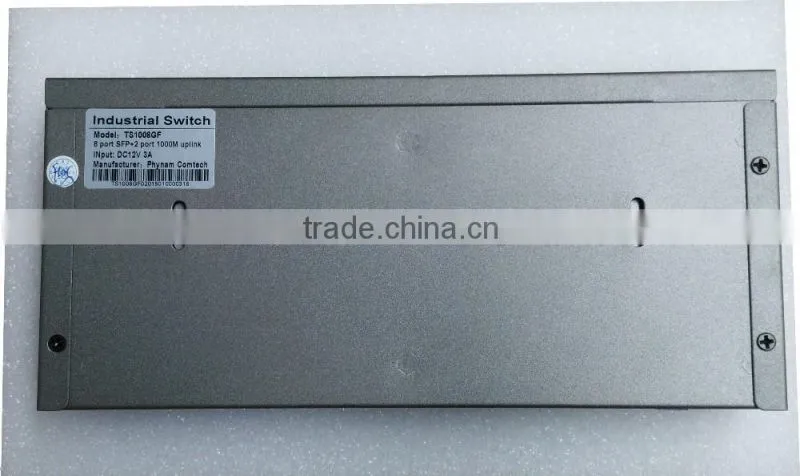

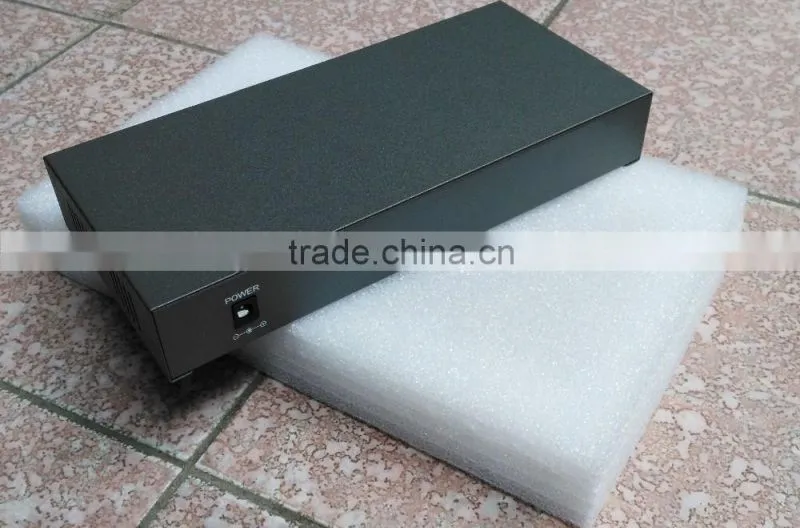

8SFP+2TX full gigabit fiber switch
Overview

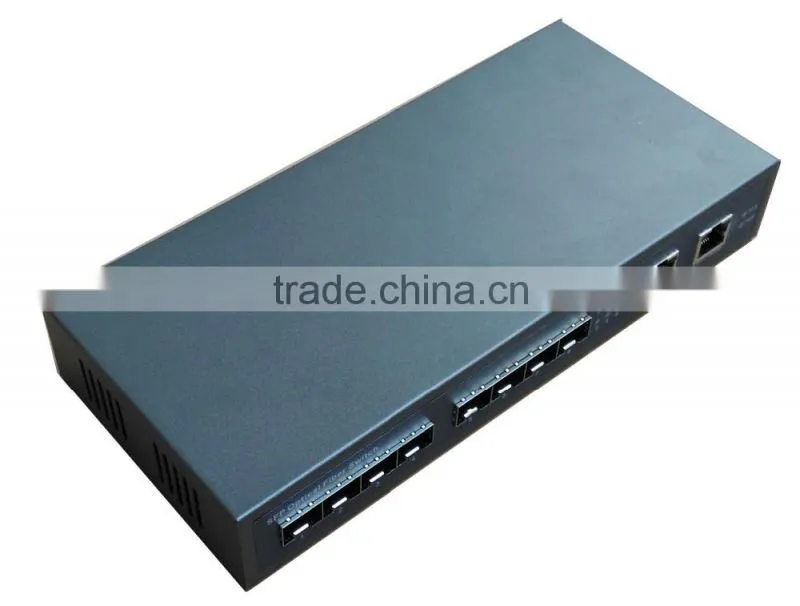

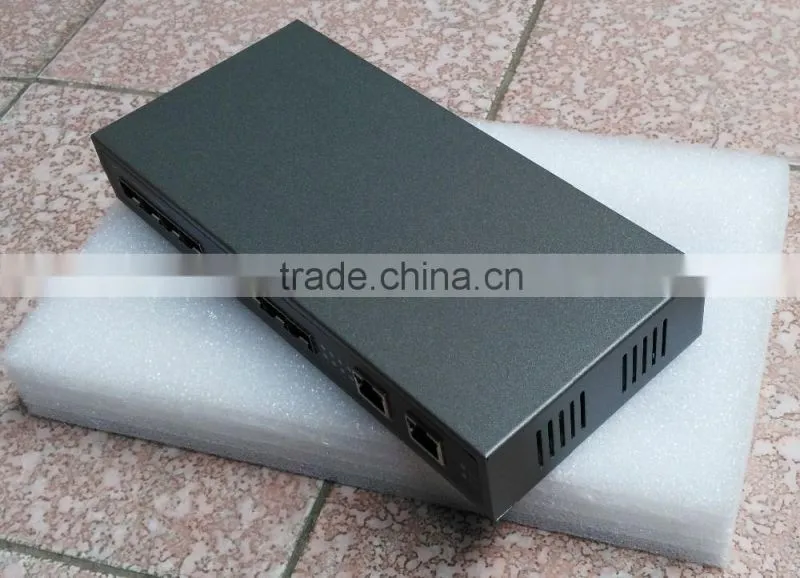

TS1008GF 10 ports Gigabit Ethernet Optical Fiber Switch has eight 1000M SFP sockets and two 10/100/1000M UTP ports. Customer can choose different 1000M SFP module according as his demand, such as Multimode or Single-mode, Single fiber or Dual fiber and Single-mode 20-100km etc. The product is possessed of stable performance, excellent quality and reasonable price. It is applicable to use in constructing of Optical Fiber Ethernet network.
Feature
8 SFP sockets with 2 RJ45 interface optional full gigabit.
Auto negotiation function supports UTP ports to auto 10/100/1000M and Full Duplex/Half Duplex.
The SFP slot supports 1000M and Full Duplex mode.
Flow control; IEEE802.3X for Full Duplex; Back pressure for half-duplex
All ports support line speed switching, support big frame transmission.
It is low power consume (15W), low heat, and good reliability.
Operating standards: IEEE802.3/u/z/ab, 10Base-T, 100Base-T, 1000Base-T and 1000Base-X.
MAC address table: 8K
LED indicator monitoring work state and help fault analysis
Switching capacity: 32G
Specs

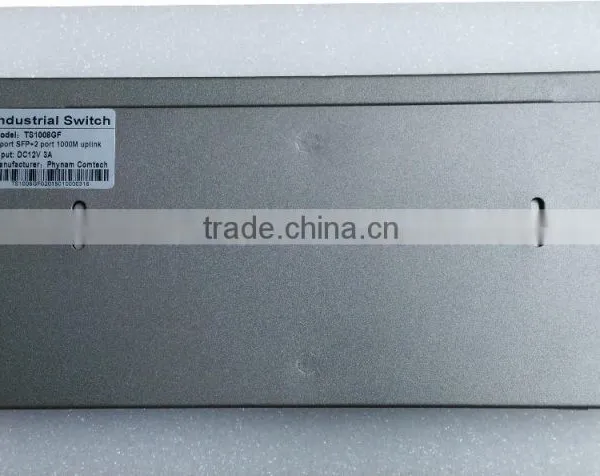

Model | TS1008GF | |
Port | 1000M Rj45 | 2 |
Giga SFP | 8 | |
Performance | Store and forward | Support |
Capacity | 32G | |
MAC | 8K | |
Environment | Work Temp.: 0~40 Store Temp: -40~70 | |
Working Humidity: 10%--90% RH non-condensing Store humidity: 5%--90% RH non-condensing | ||

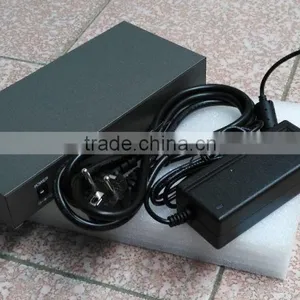

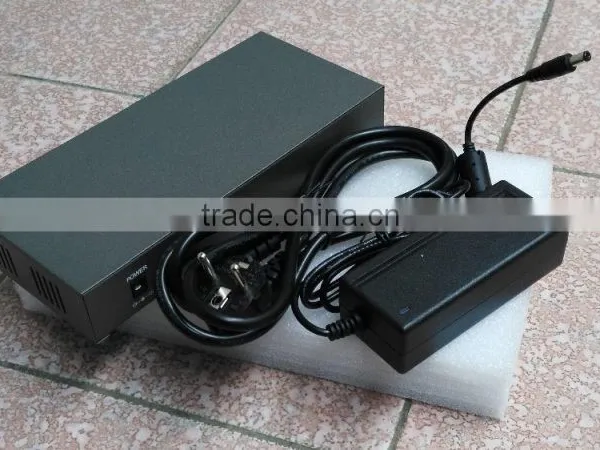

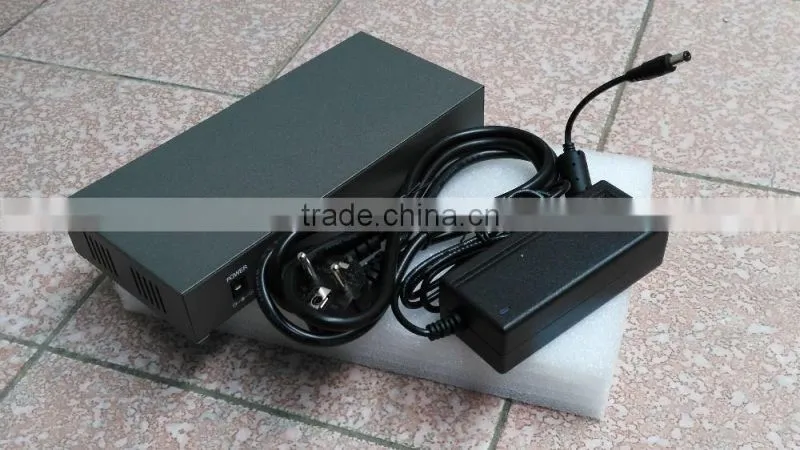

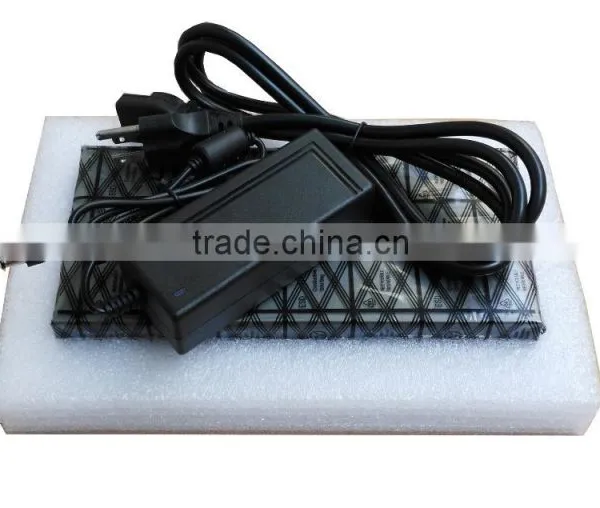

Input power | DC12V 2A AC input 110~220V 50/60HZ | |
Protocol and standard | IEEE 802.3 IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X IEEE 802.3x | |
|
| |
Data transfer rate | Ethernet10Mbps half-duplex, 20Mbps full duplex Fast Ethernet:100Mbps half-duplex, 200Mbps full duplex Gbit Ethernet:2000Mbps full duplex | |
Network Medium | 10Base-T:Cat3 or above UTP/STP(≤100m) 100Base-TX: Cat5 or above UTP/STP(≤100m) 1000Base-T: Cat5e or above UTP/STP(≤100m) 1000Base-SX:62.5μm/50μm MMF(2m~550m) 1000Base-LX:62.5μm/50μm MMF(2m~550m) or 9μm SMF (2m~80km) | |
Physical Specifications | Product Size: 225mm*105mm*32 mm(L*W*H) Package Size: 300mm*175mm*100mm(L*W*H) Weight:1kg |
