4 Ports Gigabit + 3SFP Web Management fiber Switch
Product Description:

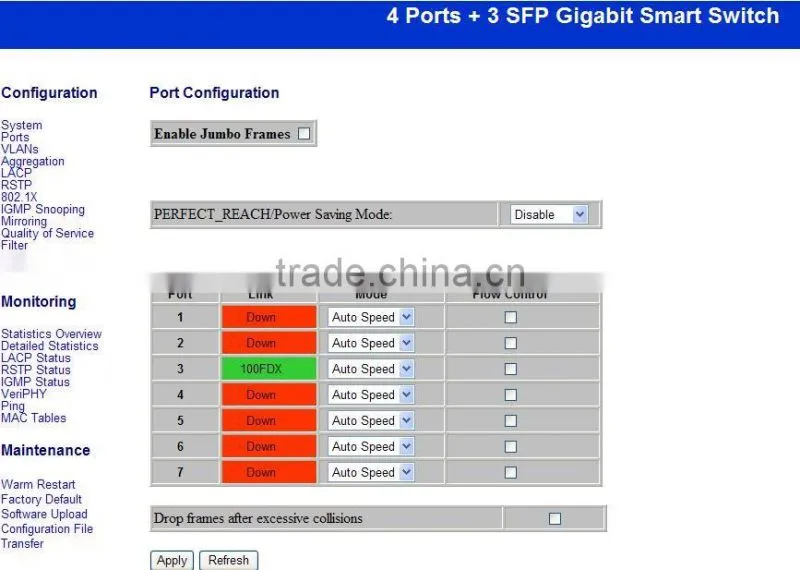

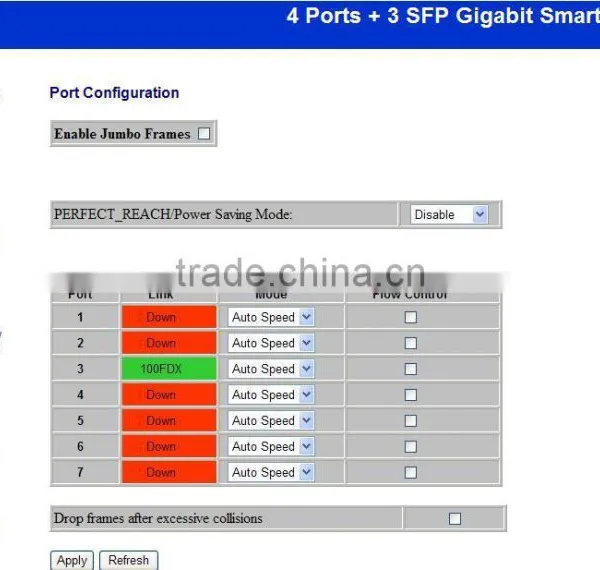

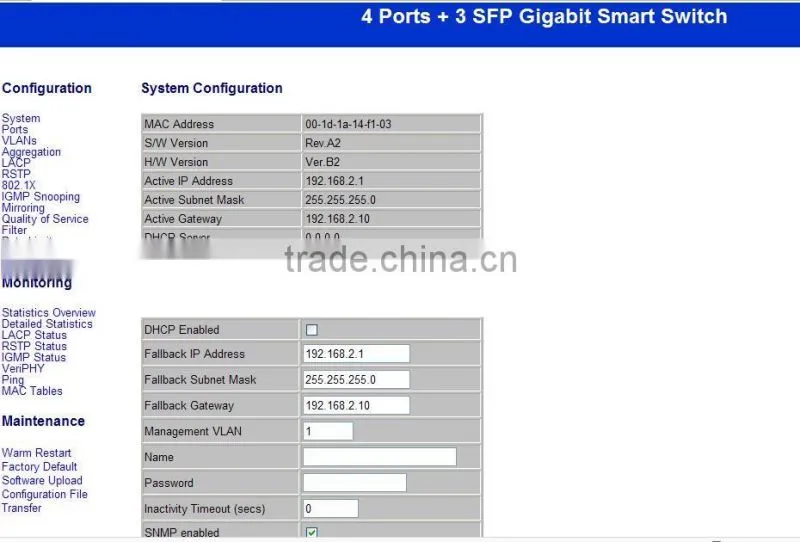

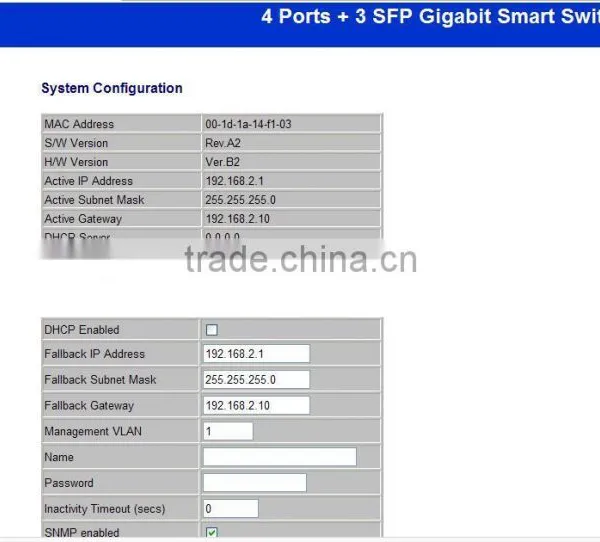

The EFW0304MGigabit Web Smart Switch fully complies with IEEE802.3/802.3u/802.3abEthernet standards. It provides 4 10/100/1000Mbps Auto-Negotiation RJ45 ports and 3 SFP independence expansion slots supporting Mini GBIC . It also provides Web-based management functions including the system, port network, VLAN, Trunk, Priority and security etc.Its standard 11-inch rack-mountable steel case and intelligent management makes it is suitable for small, middle and large networks.
Product Characteristics
Complies with IEEE802.3,IEEE802.3u,IEEE802.3ab standards;
4 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX and 3 SFP independent expansion slots supporting Mini GBIC module;
Supports Web Smart and console managements ;
Support IEEE802.3x flow control for half/full-duplex;
Store and forward, integrated 8K MAC address table;

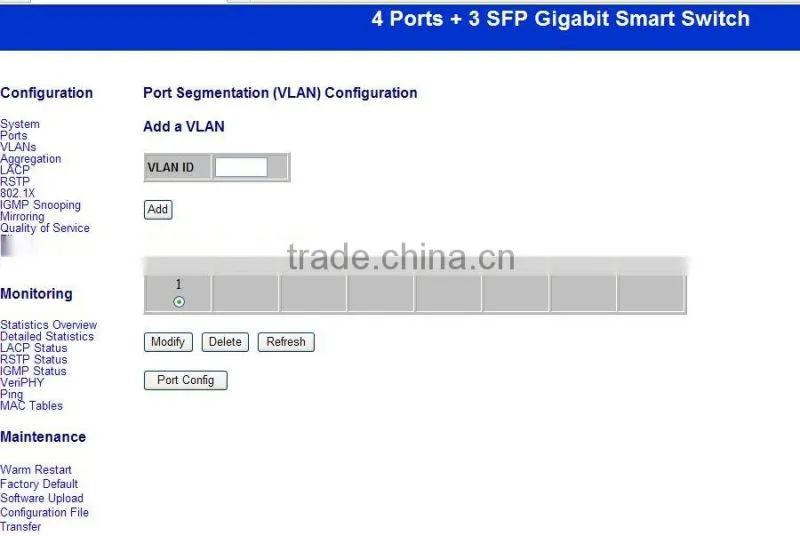

Supports Port-Based /Tag VLAN Configuration;
Supports rapid spanning tree(RSTP) Configuration;
Supports Port Trunking;
Supports port bandwidth control;
Supports QoS function;
Supports port mirror;
Supports IGMP Snooping Configuration;
Supports SNMP Configuration;
Supports broadcast storm control;
Supports HTTP software update,backup and reseting;
Supports source IP filter through ports to block unwanted access;
Supports dynamic flow statistics of ports;
Supports circuit diagnoses;
Standard 11-inch rack-mountable steel case;
External power adapter supply;
Product Specifications
Standards |
IEEE802.3, 802.3u, 802.3ab, 802.3x |
||
Basic Function |
Wire-speed Performance |
||
MAC Address Auto-Learning and Auto-aging | |||
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode | |||
Backbound Bandwidth |
14Gbps |
||
MAC Address Table |
8k |
||
Forwarding Rate |
10BASE-T: 14880pps/port |
||
Transmission Method |
Store-and-Forward |
||
Ports |
4 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) and 3 SFP independence expansion slots supporting MiniGBIC modules |
||
Network Media |
10Base-T: UTP category 3, 4, 5 cable (maximum 100m) |
||
LED Indicators |
Power, Link/Act, Speed |
||
Dimensions (W*D*H) |
250mm × 150mm × 44mm |
||
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) |
||
Input |
Power: 100-240VAC 50-60Hz |
||
Detailed Management Function List |
|
||
General Specs |
|
||
Switching fabric |
store and forward |
|
|
Flash |
1M |
|
|
Dimensions(L*W*H) |
250*150*44 |
|
|
Max No. of 100Base-TX |
7 |
|
|
Max No. of 1000Base-T/FX |
4+3 |
|
|
MAC address table size |
8K |
|
|
Jumbo Frame |
9600Bytes |
|
|
Routing Protocol |
|
||
IGMP Snooping |
support |
|
|
IGMP v1/v2/v3 |
V1,V2 |
|
|
Availability |
|
||
802.1w RSTP |
support |
|
|

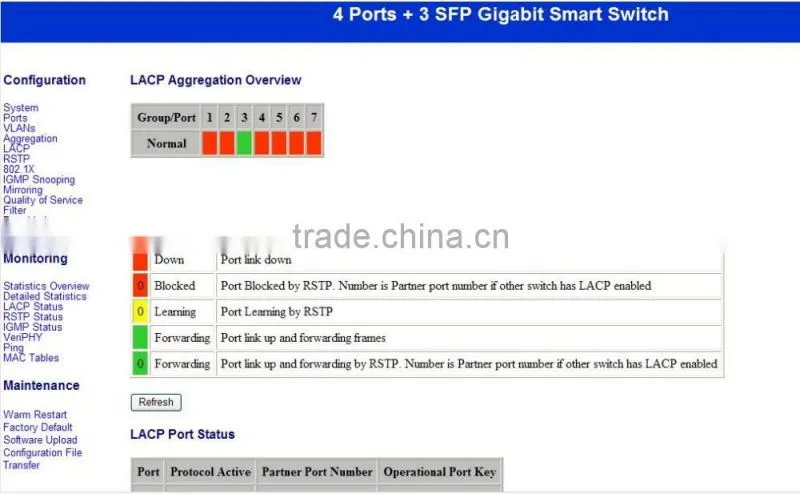

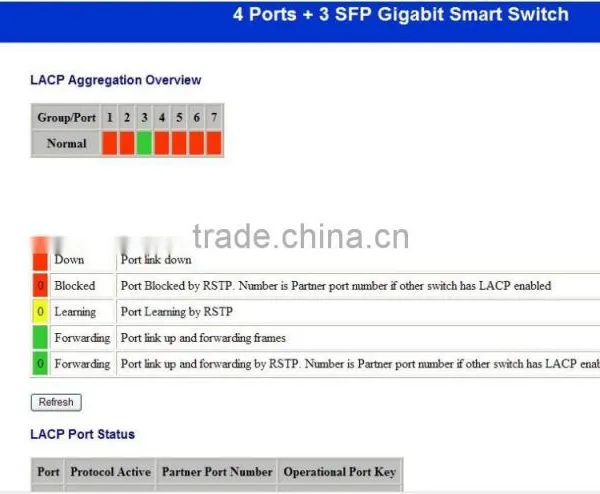

802.3ad Link (LACP) |
support |
|
|
Static Aggregation |
support |
|
|
VLAN |
|
||
Port-based VLAN |
support |
|
|
802.1Q VLAN |
support, VID(1-4094) |
|
|
Max no. of VLAN |
support 7 groups,VID(1-4094) |
|
|
QoS |
|
||
802.1p |
support |
|
|
Port based Rate Limiting |
support |
|
|
Broadcast Storm Control |
support |
|
|
Multicast Storm Control |
support |
|
|
Unknowable Unicast Control |
support |
|
|
WRR |
support |
|
|
COS |
support |
|
|
DiffServ (DSCP) |
support |
|
|
Security |
|
||
802.1x |
support |
|
|
IP Filtering |
support |
|
|
Management |
|
||
SNMP |
V1,V2 |
|
|
Web Management |
support |
|
|
Console Port |
support |
|
|
DHCP Relay |
support |
|
|
TFTP |
support |
|
|
Port Mirroring |
support |
|
|
