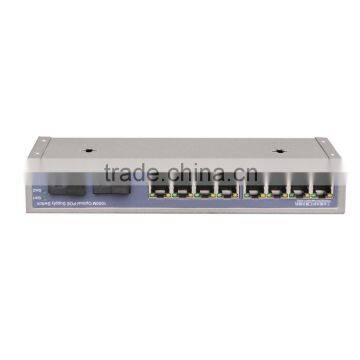

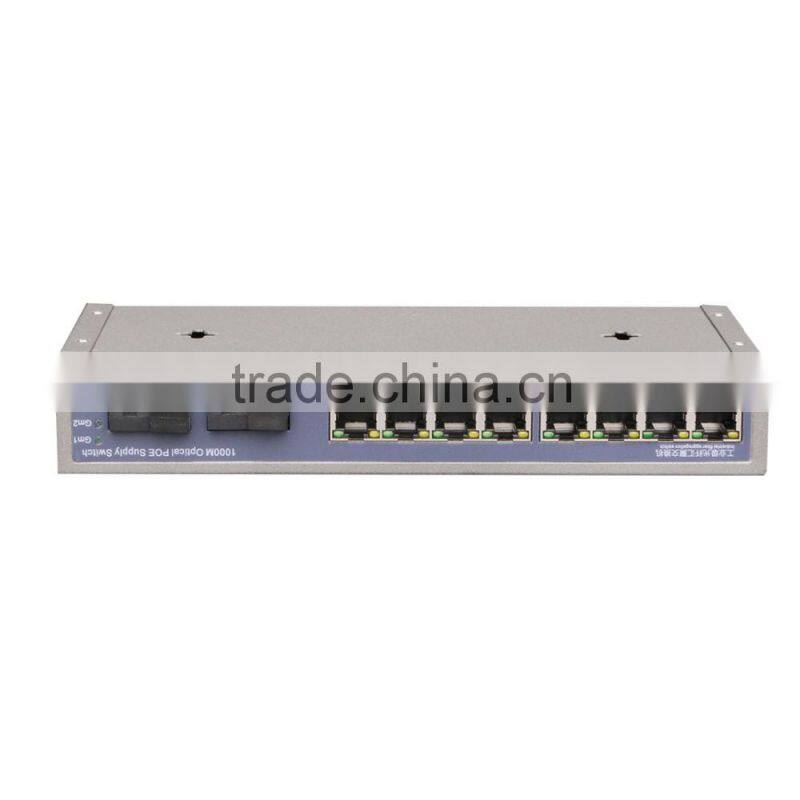

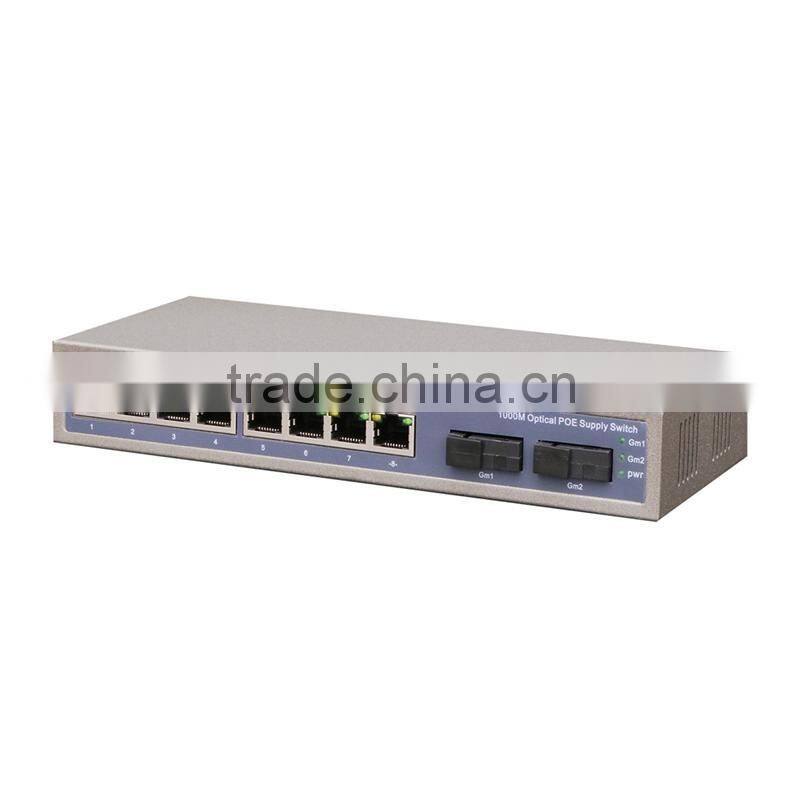

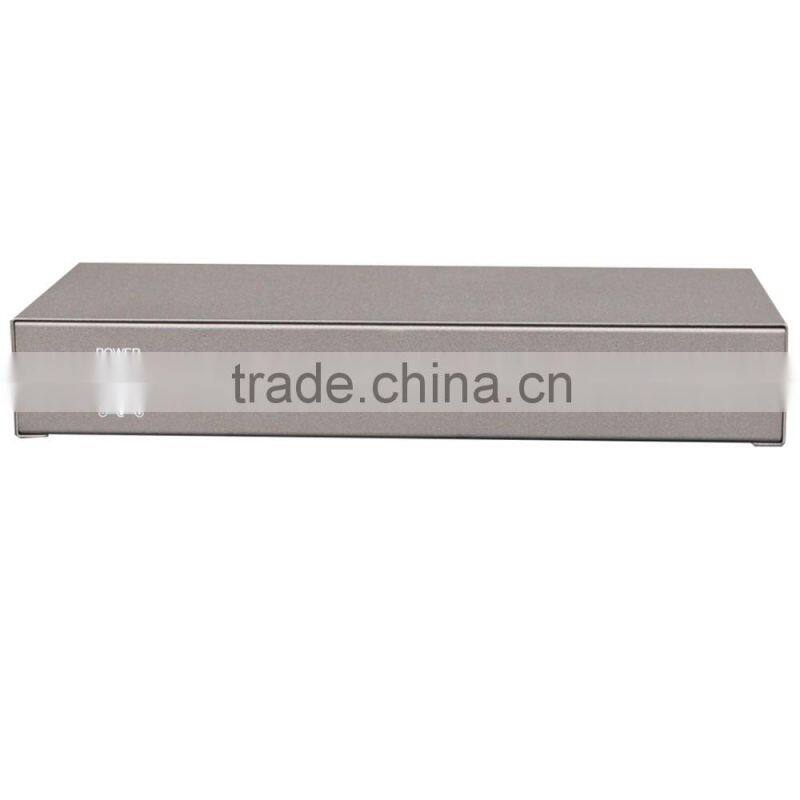

8 Port Rj45 Full Enhanced Full Gigabit Fiber Switch with 2 giga fixed fiber port
Introduction
SW208GSC Gigabit network Fiber Switch supply 8 port GE and 2 giga SC optical fiber ports,applied to IPC camera, Wireless AP, and IP Phone, and easy for network transmission.
This device comes with fiber port, easy for optical fiber remote transmission.
Main Features
2SC+8GE.
Comply to IEEE 802.3, IEEE 802.3u, IEEE 802.3ab.
Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
SC-ST 25KM.
Auto MDI/MDIX.
Upstream port lightning protection.
Store-and-forward.
All ports support wire speed switch, jumbo frame transmission.
Zero QFD, self-adaption.
Panel lights can monitor operative mode and malfunction analysis.
Specification
Model |
SW208GSC |
|
Electric Port |
1000M Rj45 |
8 |
SC |
2(SC-ST 1310 A) |
|
|
Function |
Exchange Mechanism |
Store-and-forward |
Exchange Capacity |
16G |
|
MAC |
4K |
|
|
Environmental |
Working Temperature:0℃~40℃ Storage temperature :-40℃~70℃ |
|
|
Working Humidity :10%~90% RH non-condensing Storage Humidity:5%~90% RH non-condensing | ||
power |
DC12V 1A AC 110-220V 50/60HZ |
|
|
Network protocol |
IEEE 802.3X IEEE 802.3i 10BASE-T X IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T G IEEE 802.3x Flow control |
|
|
Default Mode |
Common switch |
|
Match |
VLAN isolation |
|
|
Speed |
Ethernet 10Mbps half-duplex, 20Mbps full-duplex Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex Gigabit Ethernet 2000Mbps full-duplex |
|
|
Network Media |
10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(≤100m) 100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(≤100m) 1000Base-T: Pair 4 Category 5 (cat 5e)and above UTP/STP(≤100m) SC-ST MAX Transm 25KM |
|
Physical Specifications |
Product Size:225mm*105mm*32 mm(L*W*H) package Size:300mm*175mm*100mm(L*W*H) 0.9kg |
|
Product Ordering Information :
Model Number:SW208GSC
Product Details:2SC+8GE
