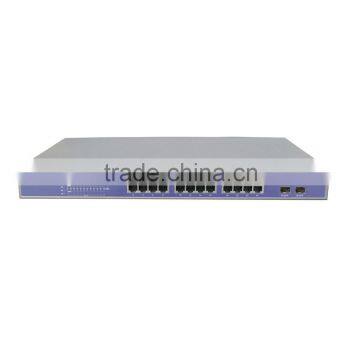

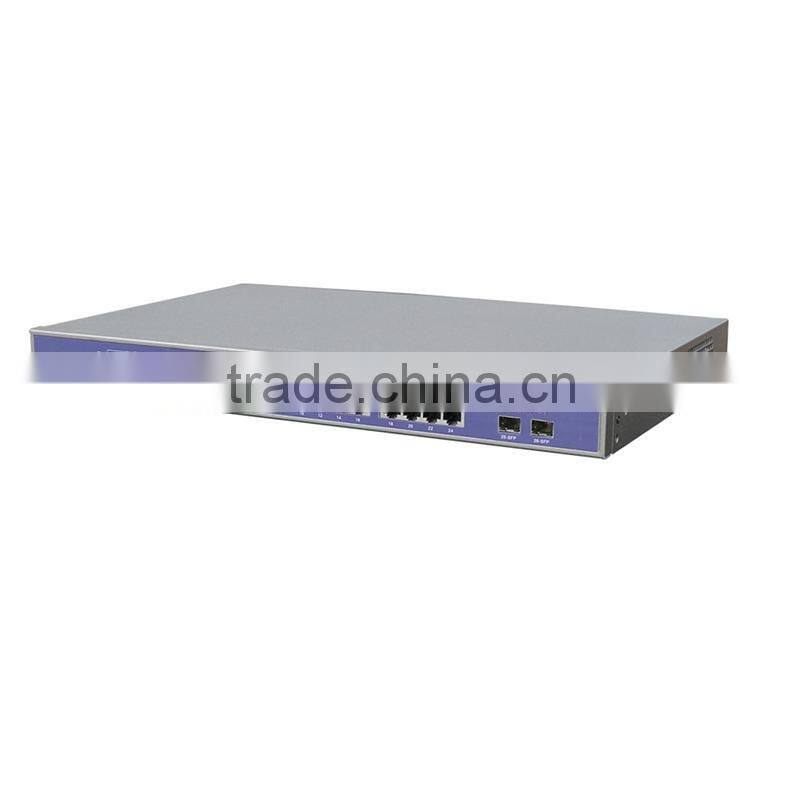

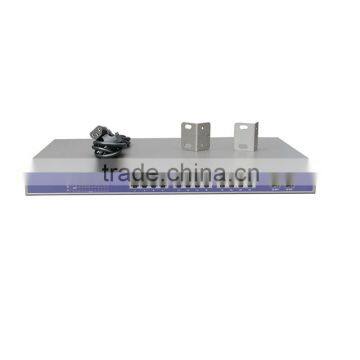

2 Port SFP + 24 Port RJ45 Rack-mount network switch 2 optical fiber port
Fiber switch Introduction
SW2624GSFP supply 24FE port and 2 giga SFP port, is applied to IPC camera, Wireless AP, and IP Phone, and easy for network transmission.
This device comes with SFP port, easy for optical fiber remote transmission.
Main Features
2SFP+24FE, with different modules, can up to 100KM.
Rack-mount, Computer Room Construction, Dual power supply.
Comply to IEEE 802.3, IEEE 802.3u, IEEE 802.3ab.
Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
Auto MDI/MDIX.
Upstream port lightning protection.
Store-and-forward.
All ports support wire speed switch, jumbo frame transmission.
Zero QFD, self-adaption.
Panel lights can monitor operative mode and malfunction analysis.
Model |
SW2624GSFP |
|
Electric Port |
100M Rj45 |
24 |
SFP |
2 |
|
|
Function |
Exchange Mechanism |
Store-and-forward |
Exchange Capacity |
12.8G |
|
MAC |
8K |
|
|
Environmental |
Working Temperature:0℃~40℃ Storage temperature :-40℃~70℃ |
|
|
Working Humidity :10%~90% RH non-condensing Storage Humidity:5%~90% RH non-condensing | ||
power |
AC110-265V 50/60HZ 2.5A |
|
|
Network protocol |
IEEE 802.3X IEEE 802.3i 10BASE-T X IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T G IEEE 802.3z 1000BASE-X G IEEE 802.3x Flow control IEEE 802.1q VLAN Bridge operation |
|
|
Default Mode |
Common switch |
|
Match |
VLAN isolation |
|
|
Speed |
Ethernet 10Mbps half-duplex, 20Mbps full-duplex Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex |
|
|
Network Media |
10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(≤100m) 100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(≤100m) 1000Base-SX:62.5μm/50μm MMF(2m~550m) 1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) |
|
Physical Specifications |
Product Size:440mm*290mm*45mm(L*W*H) package Size:497mm*393mm*97mm(L*W*H) 2.8kg |
|
Product Ordering Information :
Model Number:SW2624GSFP
Product Details:2SFP+24FE
