Specifications
Q32 tumble belt cleaning machineHigh efficient shot peening
Rational design with low-power
Long life
Wide use
Company indroduction:
Qingdao Powerful Mechanical & Electrical Co., Ltd. is a large-scale enterprise specialized in the production of mechanical moulding line. The main products are: the production line of clay sand casting equipment ,V method casting equipment, sand reclamation equipment ,resin sand molding production line of glass sand reclamation equipment of mechanized moulding lines; series mixer; bucket elevator and climbing charge; series of environmental protection dust remover and so on..
Products Detail:
Q32 Tumble belt cleaning machine/shot blast machine/shot peening machine/Abrator
Tumble belt shot blast machine adopts the endless rubber apron to form a special barrel,to make the work pieces tumble continuously during shot blasting process .
Tumble belt blast machine is mainly used in forging work pieces and metal work pieces.
Tumble betl blast machine can be used not only as a single machine ,but also as a part of a line
Tumble belt cleaning machine technical parameter:
Item |
Unit |
Q326C |
Q3210C |
QR3210 |
Productivity |
t/h |
0.6—1.2 |
3--5 |
1.5—2.5 |
Feeding amount |
Kg |
200 |
800 |
600 |
Maximum weight of single piece |
Kg |
10 |
15 |
30 |
Diameter of end disk |
Mm |
650 |
1000 |
1000 |
Effective volume |
M3 |
0.15 |
0.4 |
0.3 |
Shot blasting quantity |
Kg/min |
100 |
250 |
250 |
Dust removal air volume |
M3/h |
2200 |
6000 |
5000 |
Power consumption |
Kw |
12.6 |
32.6 |
24.3 |
Outside dimension |
mm |
3681*1650*5800 |
3644*2926*5856 |
3972*2600*4768 |
The above parameters for reference only, can according to the customer request design .

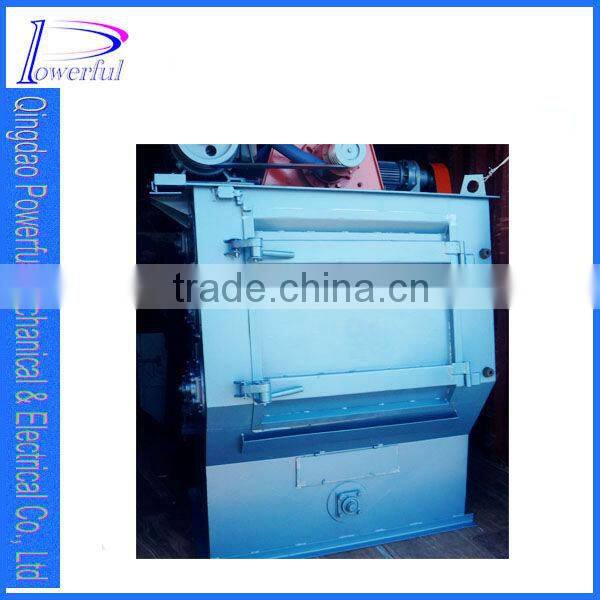

Tumble belt cleaning machine picture:

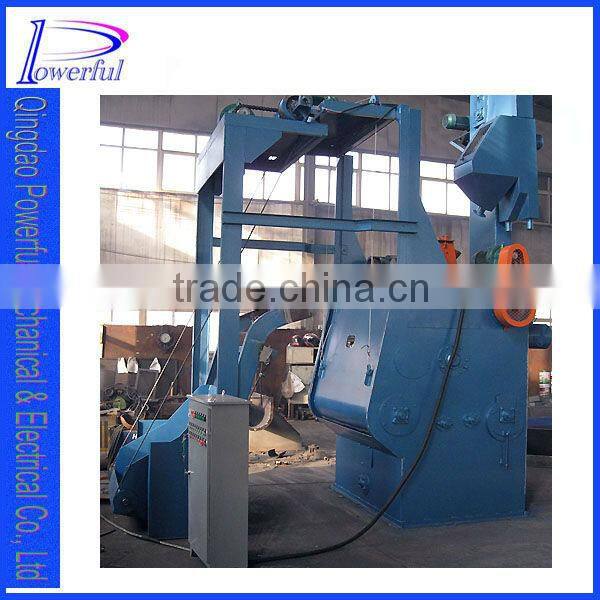

Tumble belt cleaning machine picture 2:

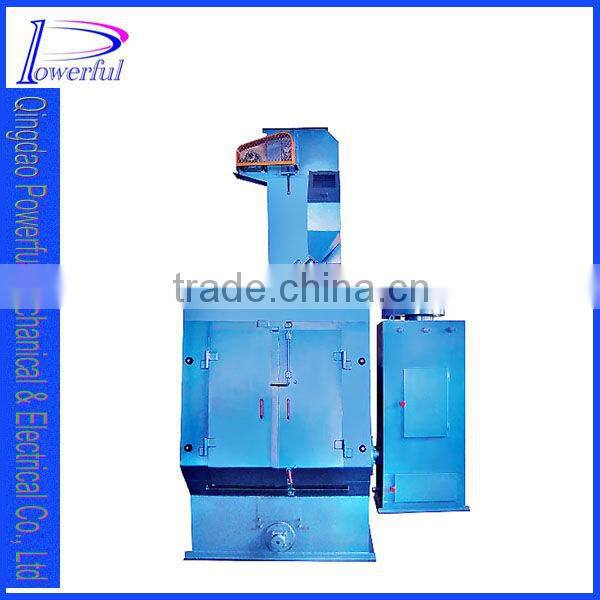

Tumble belt cleaning machine picture 3:
You can choose:
shot blasting machine
sand preparing equipment
sand mixer
v method/production line
molding machine
spare parts off shot blasting machine
blast wheel…
