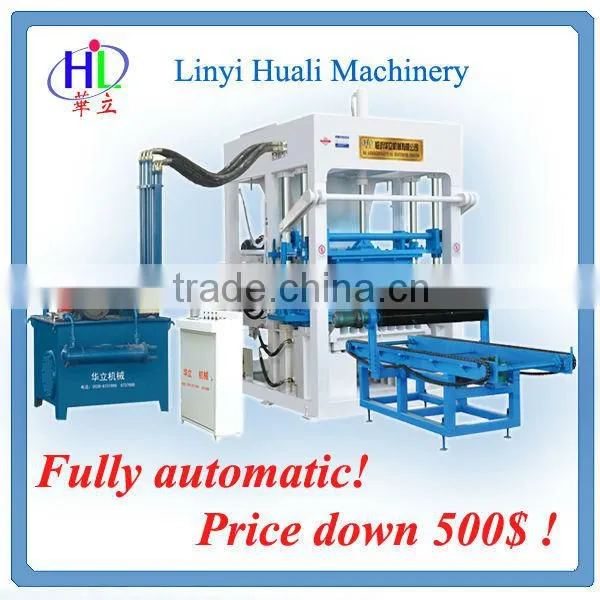

hollow /paving block machine /concrete interlocking making machine QTF3-20 machine to make concrete blocks

Specifications

paving block machine QTF3-20 machine to make concrete blocks
1.easy operation
2.100% pre-tested
3..Long life service

hollow /paving block machine /concrete interlocking making machine QTF3-20 machine to make concrete blocks

Main technical parameters of hollow /paving block machine /concrete interlocking making machine QTF3-20 machine to make concrete blocks

Main vibration form	Platform vibration and pressure
Cycle Time	20 seconds
Vibrating Frequency	4600 rolls/minute
Motors Power	14.25KW
Pallet Size	680*530mm
Raw Materials	Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
Applied Products	concrete blocks, paving stones with or without face mix, garden and landscaping products, slabs, edgers, curbstones, grass blocks, slope blocks, interlocking blocks, etc.
Applied Fields	widely used in buildings, road paving’s, squares, gardens, landscaping, city constructions, etc.







Productivity of hollow /paving block machine /concrete interlocking making machine QTF3-20 machine to make concrete blocks



Type	Sample	Size(mm)	Quantity	Molding cycle	QTY/Per hour
Paver block mould		200*100*60	10pcs/mould	15-20s	1800pcs
Paver block mould		225*112.5*60	8pcs/mould	15-20s	1020pcs
Paver block mould		400*200*80	3pcs/mould	15-20s	540pcs
Paver block mould		200*160*60	6pcs/mould	15-20s	1080pcs











Applied fields:

Widely used in buildings, road pavers, squares, gardens, landscaping, city constructions, etc.



Outstanding features: hollow /paving block machine /concrete interlocking making machine QTF3-20 machine to make concrete blocks

other information:

with Reasonable design, compact structure,QTF3-20 concrete block making machine can realize thedirectional vibration . With frequency conversion brake can immediately cancel energy consumption and  manual to board cloth can greatly reduce the labor intensity.

Pressurize  to its upper and below, with strong rammer 3-20 concrete block making machine is  especially suitable for high strength block production.

3-20 concrete block making machine can be used for Multi-purpose, with different mold 3-20 concrete block making machine can produce various specifications of the block





• FAST SHIPPING from our Linyi China Factory!
• Item shipped in 15-28 working days after payment is received depends on the quantity of the order.
• Item shipped by sea transpotation depending on size and weight of total order.
• Item only shipped to port listed on the invoice; Not responsible for shipping to wrong address.
• Bill of lading will be sent to you as soon as we ship the goods.





Guarantee

1.We can supply one year guarantee period for our brick making machines, if the client have the question ,they could call our service department number any time , we will supply per day 24 hours service .

2.Within one year, if the client meet the unsolvable questions ,we could fly to client place to help.
